Lewmar Windlass - V4 2000W Vertical Electric 24V Gypsy Only 8mm - DIN 766
Lewmar Windlass - V4 2000W Vertical Electric 24V Gypsy Only 8mm - DIN 766 is backordered and will ship as soon as it is back in stock.
Description
Description
Lewmar introduces the worlds first compact stainless steel windlass for power and sail boats. The beautiful styled deck unit conceals a robust, reliable drive train, worm gearbox and splined shaft for maximum strength and control. Rope-chain or all-chain anchor rodes may be employed at the touch of a button, whilst the fully machined, low profile gypsy will keep your ropes in beautiful condition for years to come.
Our Part # LEW66910082144 | Lewmar Part # 66910082-144
Features
Features
Features:
- Rocker switch.
- Circuit breaker.
- Contactor and handle.
- Rope-chain gypsy.
- Manual override & chain release.
- Stylish Stainless Steel deck unit.
- Cone clutch for smooth, easy control.
- Drive Train- robust & reliable.
- Splined shaft.
- CE approved.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Windlasses:
Sizing
Sizing

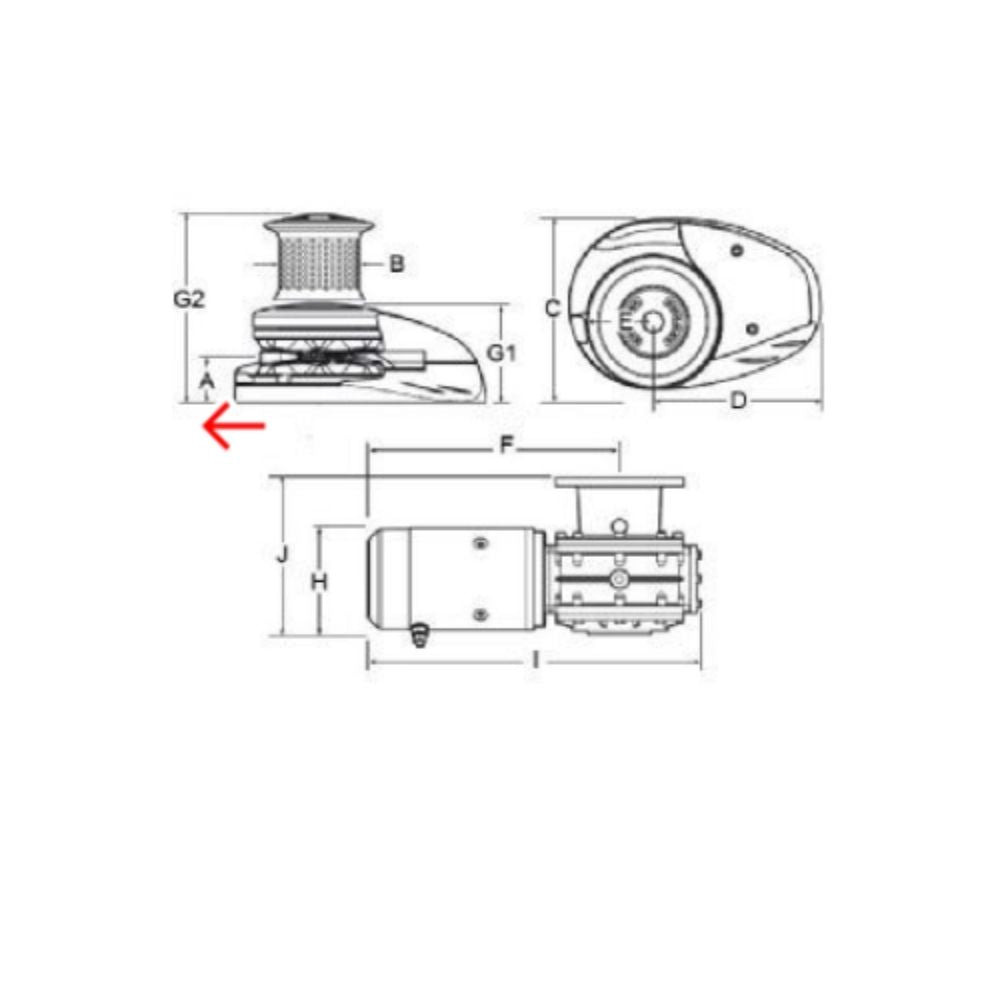

Description | Metric | Imperial |
---|---|---|
Gypsy Number | 201 | 201 |
Chain Description | 8.00 mm. Din. 766, 8.00 mm. ISO 4565 | 5/16 in. G40, 5/16 in. Campbell S4 |
Rope Description | 12.00 - 14.00 mm. 3-Strand Hard Lay Up | 1/2 in. 3-Strand Hard Lay Up |
B | 75.00 mm. | 3.00 in. |
C | 189.00 mm. | 7 7/16 in. |
D | 184.00 mm. | 7 1/4 in. |
F | 276.00 mm. | 10 7/8 in. |
G1 | 108.00 mm. | 4 1/4 in. |
G2 | 214.00 mm. | 8 7/16 in. |
H | 186.00 mm. | 7 5/16 in. |
J | 185.00 mm. | 7 5/16 in. |
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Voltage | 24 V. | 24 V. |
Motor Power Watts | 2000.00 W. | 2000.00 W. |
Normal Current Draw | 70 A. | 70 A. |
Max Pull | 1500.00 kg. | 3300.00 lb. |
Maximum Line Speed | 27.00 m./min. | 90.00 ft./min. |
Working Load | 375.00 kg. | 825.00 lb. |
Weight Gypsy Only | 29.00 kg. | 64.00 lb. |
