Lewmar  |  SKU: LEW66810025  |  Manuf. Code: 66810025

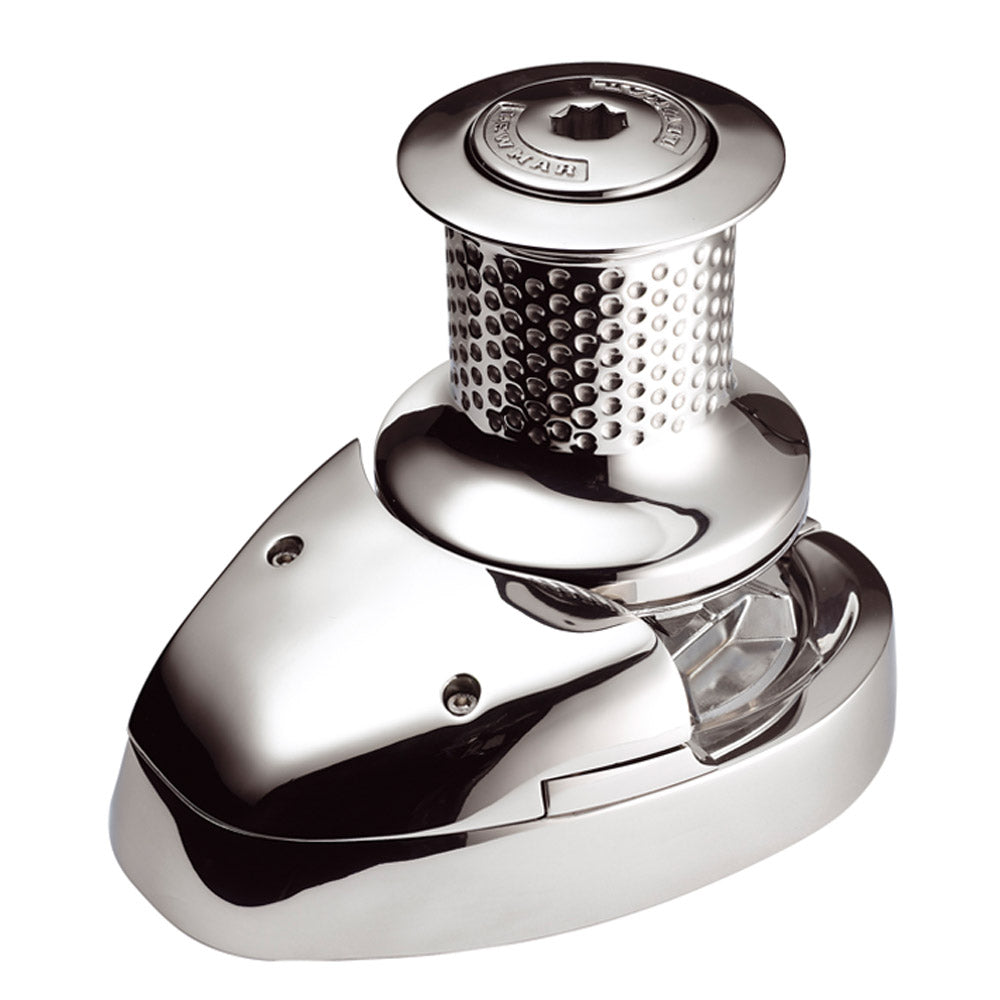

Lewmar Windlass - V4/5 Gypsy Drum Deck Unit (Gypsy Sold Separetely)

$1,710.00 USD $2,630.80

Description

You will also require a gypsy, motor gearbox, circuit breaker, contactor and switches.

Our Part # LEW66810025 | Lewmar Part # 66810025

Features

Features:

  • Rope-chain gypsy.
  • Cone clutch for smooth, easy control.
  • Manual Free-Fall.
  • W.A.R.P Drum (Drum version only).
  • Robust and reliable drive train.
  • Manual override (optional).
  • The largest rope chain windlass in the range.

Knowledge Base

Click on the following technical articles to find relevant information about Windlasses:

Technical Information


DescriptionMetricImperial
Motor Power2000 W.2000 W.
Max Pull1500.00 kg.3300.00 lb.
Working Load Limit375.00 kg.825.00 lb.
Max Line Speed27.00 m./min.90. ft./min.
Normal Current Draw70.00 amp.70.00 amp.
Circuit Breaker110.00 amp.110.00 amp.
App Weight Gypsy Only29.00 kg.64.00 lb.
App weight Gypsy/Drum36.00 kg.79.00 lb.
