Lewmar  |  SKU: LEW6672222108142  |  Manuf. Code: 6672222108-142

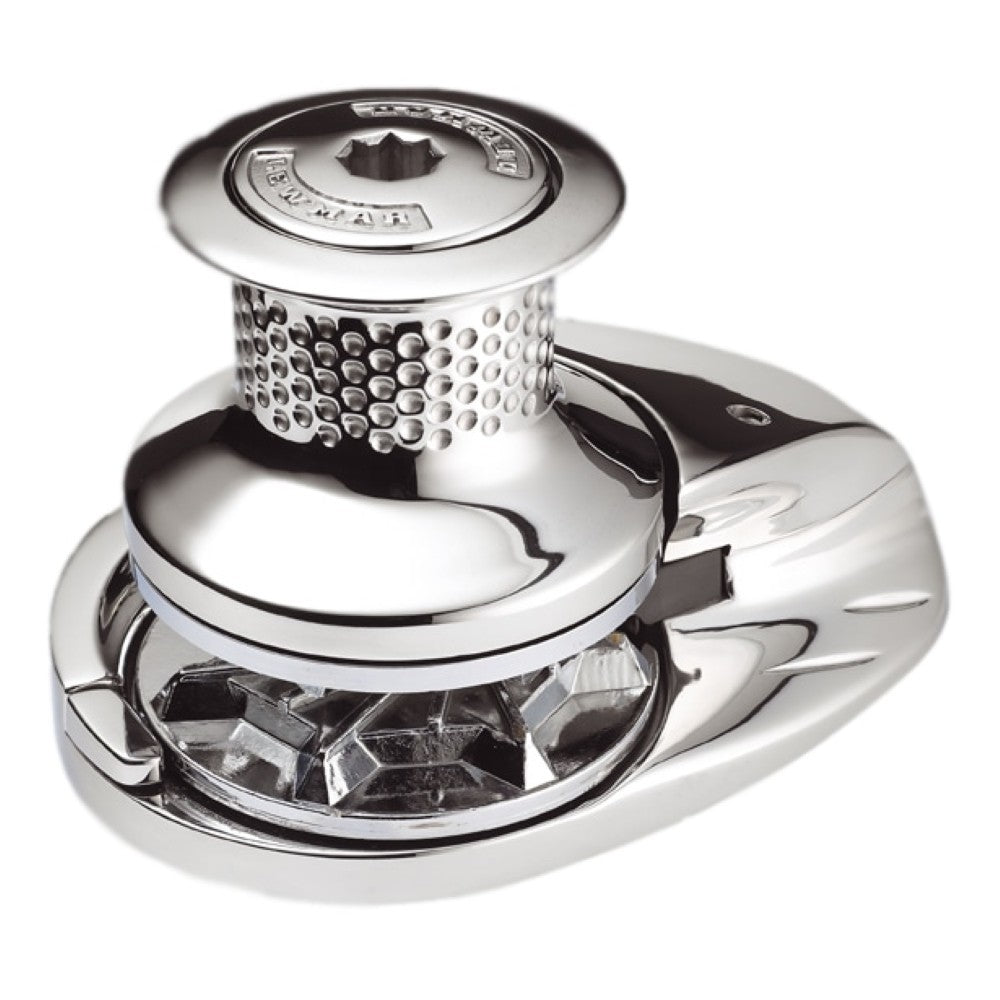

Lewmar Windlass - V3 w/ Fast Fit 1000W Vertical Electric 24V Gypsy + Drum 10mm - DIN 766

$3,090.00 USD $4,753.80

Description

All Stainless Vertical Electric Windlass for Power and Sail Boats up to 13m (44ft). Windlass kits feature Fastfit™ Motor Gearboxes.

FastFit™ Feature:

FastFit™ motor gearbox attachment enables the windlass to be fitted by one man alone.

While the gearbox alignment to the deck unit is critical to a standard installation, the FastFit™ clamping system perfectly aligns the deck unit and motorgearbox for a perfect fit first time.

  • FastFit™ enables the motor / gearbox to be rotated and fixed in increments of 45°.
  • To install your windlass, simply fix the deck unit to the deck and then slide the gearbox up the shaft, swing the FastFit™ clamp shut and tighten up the bronze nut.

Our Part # LEW6672222108142 | Lewmar Part # 6672222108-142

Features

Features:

  • Rope-chain gypsy.
  • Manual chain release (Free Fall).
  • Cone clutch for smooth, easy control.
  • W.A.R.P Drum.
  • Fall safe anchor lock.
  • Robust/reliable worm gearbox.
  • FastFit™ option for quicker installation and less hassle.
  • Emergency recovery kit available.

Knowledge Base

Click on the following technical articles to find relevant information about Windlasses:

Sizing


DescriptionMetricImperial
Gypsy Number002002
Size10.00 mm.2/5 in.
Chain Description10.00 mm. DIN 766Campbell 3/8 in. S4
Rope Description12.00 - 16.00 mm. 3-Strand and 8-plait (5/8 only)1/2 - 5/8 in. 3-Strand and 8-plait (5/8 only)

Technical Information


DescriptionMetricImperial
Motor Power1000.00 W.1000.00 W.
Max Pull1020.00 kg.2248.00 lb.
Working Load Limit243.00 kg.535.00 lb.
Max Line Speed30.00 m./min.98.00 ft./min.
Normal Current Draw60.00 amp.60.00 amp.
Circuit Breaker90.00 amp.90.00 amp.
App Weight Gypsy Only21.50 kg.47.00 lb.
App weight Gypsy/Drum24.50 kg.54.00 lb.
