Lewmar  |  SKU: LEW6672212198142  |  Manuf. Code: 6672212198-142

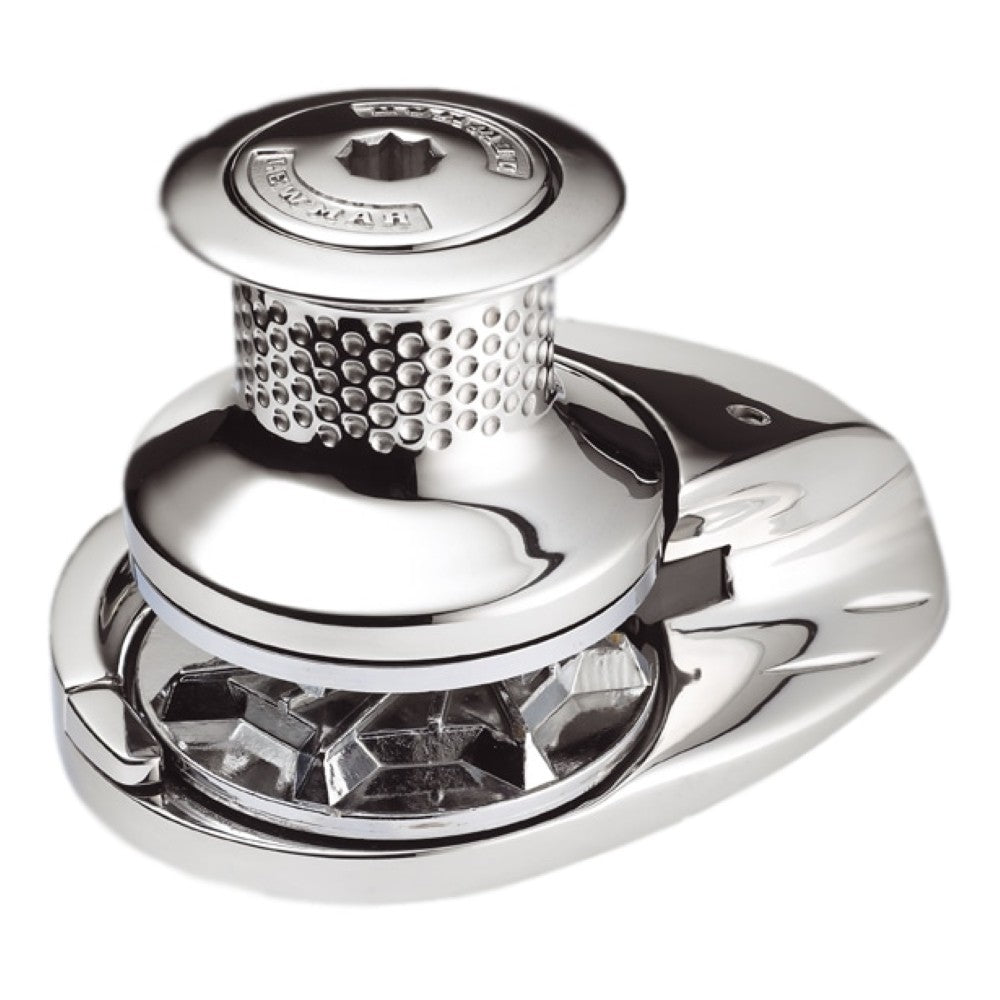

Lewmar Windlass - V3 w/ Fast Fit 1000W Vertical Electric 24V Gypsy Only 8mm - DIN 766

$2,990.00 USD $4,600.00

Description

The Lewmar Windlass - V3 w/ Fast Fit 1000W Vertical Electric 24V Gypsy Only 8mm - DIN 766 #6672212198-142 is a dependable boat windlass designed for both power and sail boats up to 13 meters (44 feet). With its innovative FastFit™ motor gearbox system, installation is a breeze, requiring just one person to achieve a perfect fit. Crafted from stainless steel, this windlass offers durability and reliability on the water.

Features & Benefits

  • All stainless steel construction for durability.
  • FastFit™ motor gearbox attachment simplifies installation.
  • Suitable for boats up to 13 meters (44 feet).
  • 1000W power with 24V operation.
  • Compatible with 8mm DIN 766 chain.

This high-quality boat windlass is engineered from stainless steel, ensuring it withstands harsh marine environments. It's tailored for vessels up to 13 meters (44 feet) and operates on a robust 1000W, 24V electric motor. The FastFit™ system allows for a quick and easy alignment of the deck unit and motor gearbox, and the windlass is compatible with 8mm DIN 766 chain, offering versatility for various boating needs.

Features

Features:

  • Rope-chain gypsy.
  • Manual chain release (Free Fall).
  • Cone clutch for smooth, easy control.
  • W.A.R.P Drum.
  • Fall safe anchor lock.
  • Robust/reliable worm gearbox.
  • FastFit™ option for quicker installation and less hassle.
  • Emergency recovery kit available.

Knowledge Base

Click on the following technical articles to find relevant information about Windlasses:

Sizing


DescriptionMetricImperial
Gypsy Number001001
Size8.00 mm.1/3 in.
Chain Description8.00 mm. DIN 766, 8.00 mm. ISO 45655/16 in. G40
Rope Description12.00 - 16.00 mm. 3-Strand and 8-plait (5/8 only)1/2 - 5/8 in. 3-Strand and 8-plait (5/8 only)

Technical Information


DescriptionMetricImperial
Motor Power1000.00 W.1000.00 W.
Max Pull1020.00 kg.2248.00 lb.
Working Load Limit243.00 kg.535.00 lb.
Max Line Speed30.00 m./min.98.00 ft./min.
Normal Current Draw60.00 amp.60.00 amp.
Circuit Breaker90.00 amp.90.00 amp.
App Weight Gypsy Only21.50 kg.47.00 lb.
App weight Gypsy/Drum24.50 kg.54.00 lb.
