Lewmar Windlass - V3 w/ Fast Fit 1000W Vertical Electric 12V Gypsy Only 10mm - DIN 766
Lewmar Windlass - V3 w/ Fast Fit 1000W Vertical Electric 12V Gypsy Only 10mm - DIN 766 is backordered and will ship as soon as it is back in stock.
Description
Description

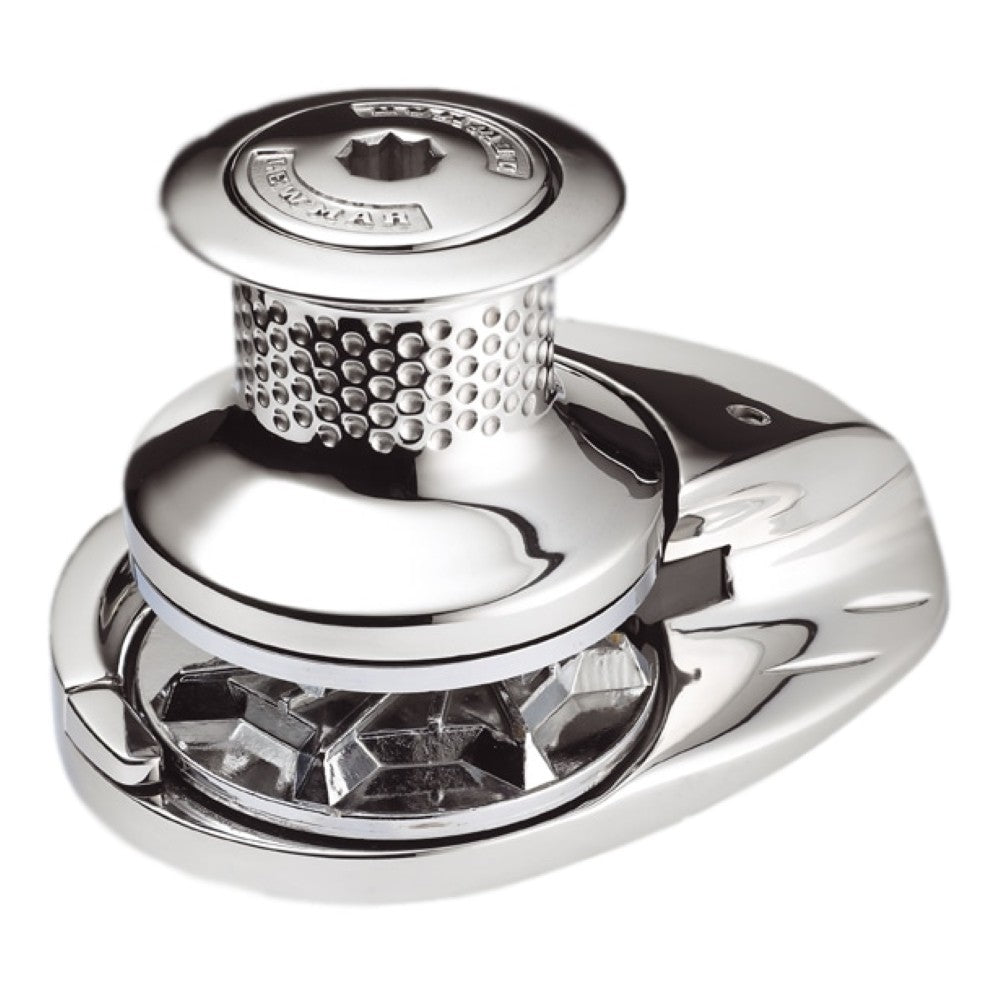

The Lewmar Windlass - V3 w/ Fast Fit 1000W Vertical Electric 12V Gypsy Only 10mm - DIN 766 #6672211108-139 is a sleek and efficient solution for boats up to 13m (44ft). Its innovative FastFit™ system makes installation a breeze, allowing for a precise fit right out of the box. Perfect for both power and sailboats, this windlass combines performance with ease of use.
Features & Benefits

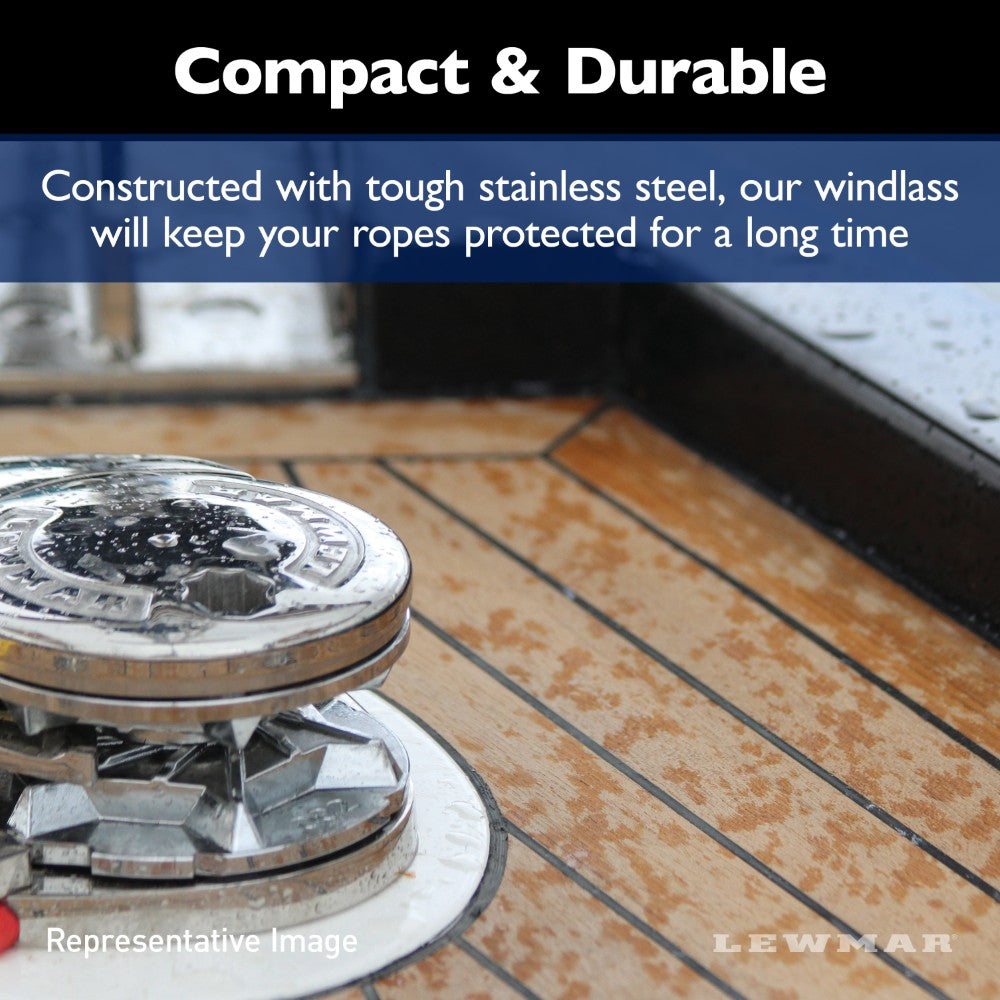

- All stainless steel construction for durability.

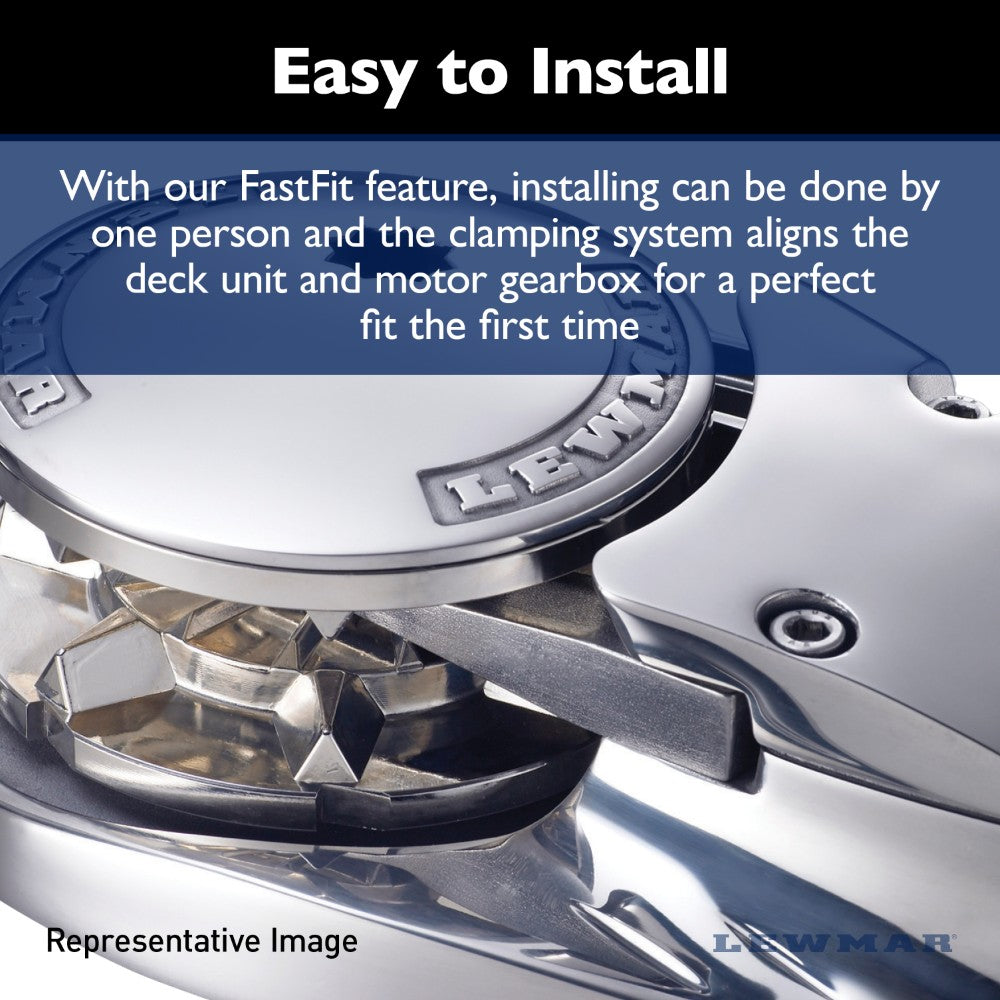

- FastFit™ motor gearbox attachment for single-person installation.
- Gearbox can be rotated and fixed in 45° increments for flexibility.
- Compatible with 10mm DIN 766 chains.
This windlass features a robust stainless steel build, designed for boats up to 13m (44ft). It is equipped with a 1000W motor and operates on a 12V system, specifically crafted for the 10mm DIN 766 chain. The FastFit™ system ensures that the gearbox alignment to the deck is precise, making installation straightforward and hassle-free.
Features
Features

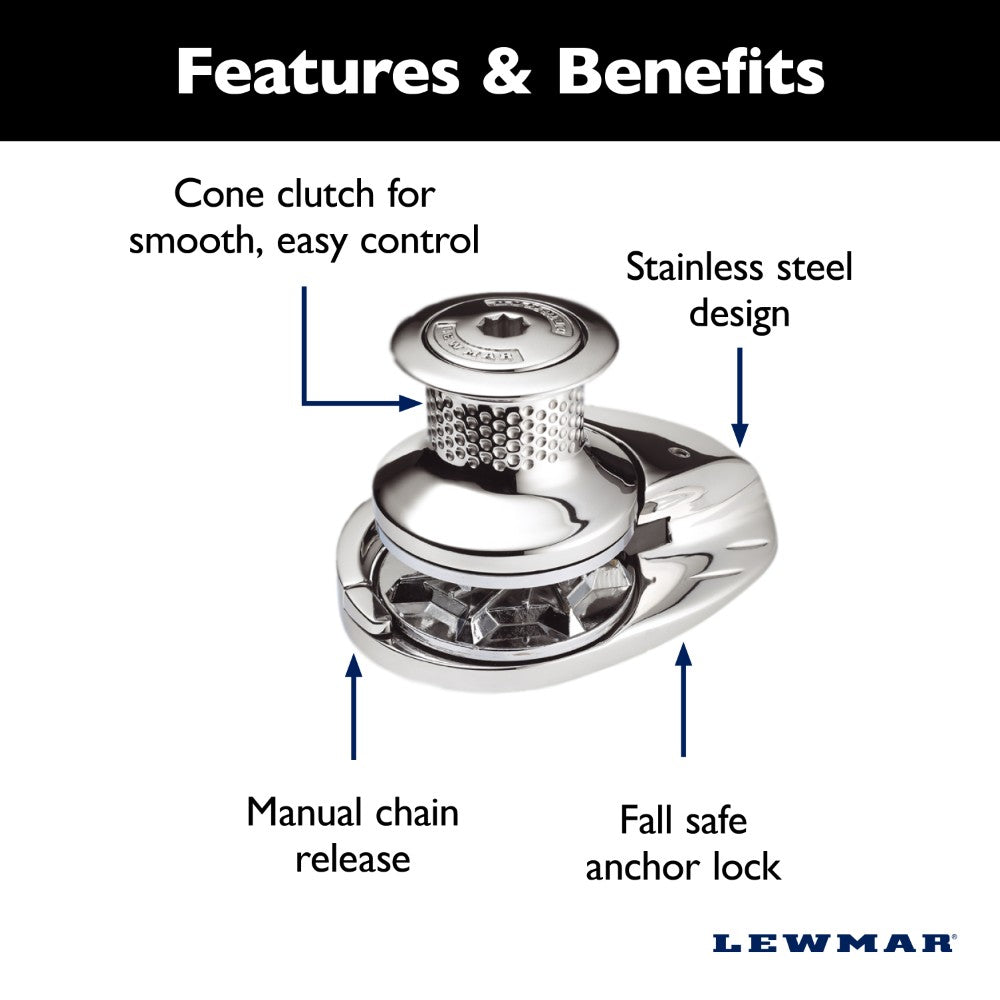

Features:
- Rope-chain gypsy.
- Manual chain release (Free Fall).
- Cone clutch for smooth, easy control.
- W.A.R.P Drum.
- Fall safe anchor lock.

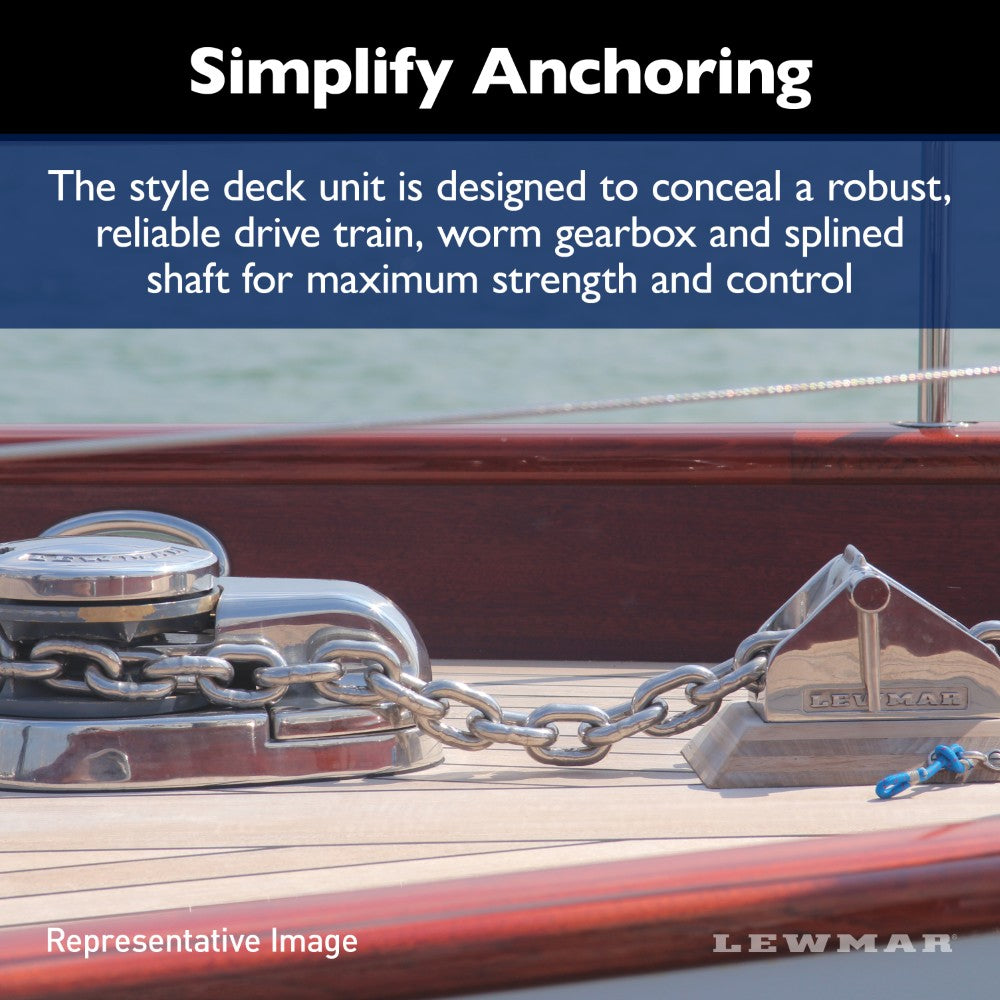

- Robust/reliable worm gearbox.
- FastFit™ option for quicker installation and less hassle.

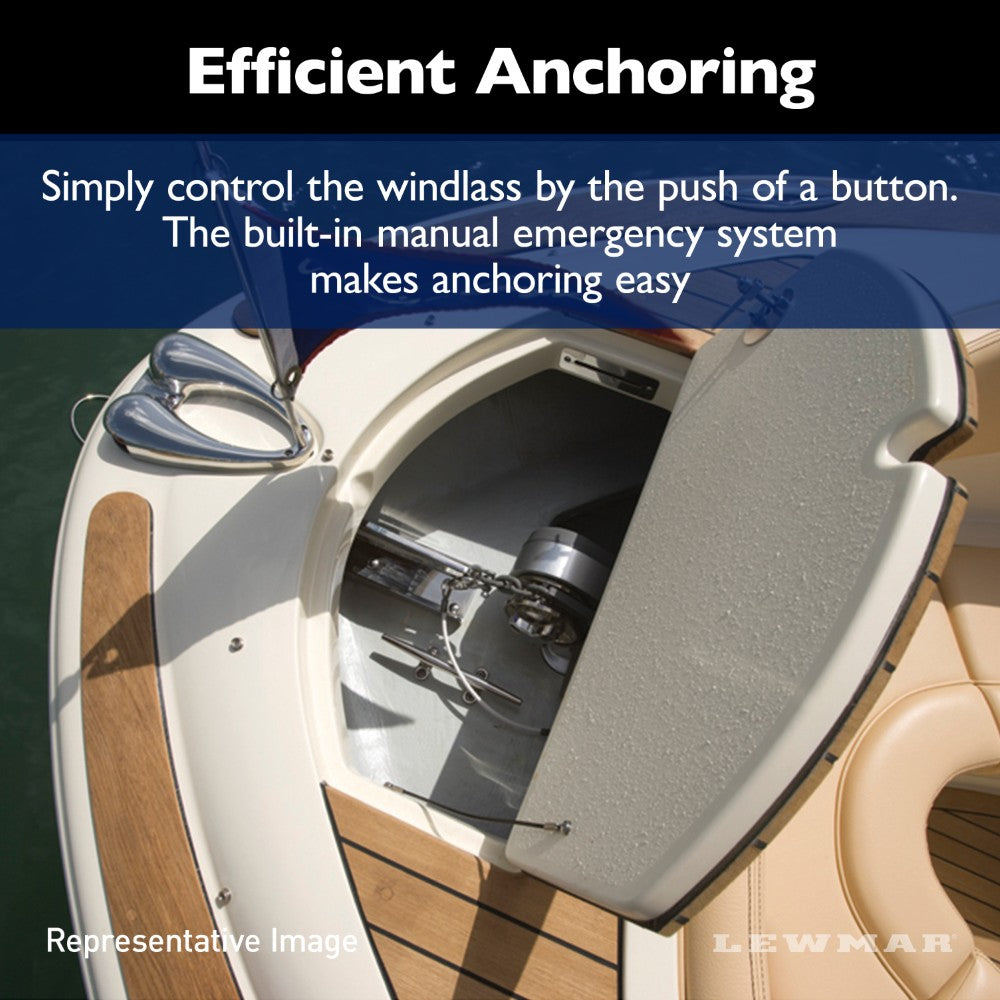

- Emergency recovery kit available.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Windlasses:
Sizing
Sizing
Description | Metric | Imperial |
---|---|---|
Gypsy Number | 002 | 002 |
Size | 10.00 mm. | 2/5 in. |
Chain Description | 10.00 mm. DIN 766 | Campbell 3/8 in. S4 |
Rope Description | 12.00 - 16.00 mm. 3-Strand and 8-plait (5/8 only) | 1/2 - 5/8 in. 3-Strand and 8-plait (5/8 only) |
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Motor Power | 1000.00 W. | 1000.00 W. |
Max Pull | 890.00 kg. | 1962.00 lb. |
Working Load Limit | 215.00 kg. | 473.00 lb. |
Max Line Speed | 28.00 m./min. | 92.00 ft./min. |
Normal Current Draw | 85.00 amp. | 85.00 amp. |
Circuit Breaker | 110.00 amp. | 110.00 amp. |
App Weight Gypsy Only | 21.50 kg. | 47.00 lb. |
App weight Gypsy/Drum | 24.50 kg. | 54.00 lb. |
