Lewmar Windlass - V2 w/ Fast Fit 700W Vertical Electric 12V Gypsy Only 10mm - DIN 766
Lewmar Windlass - V2 w/ Fast Fit 700W Vertical Electric 12V Gypsy Only 10mm - DIN 766 is backordered and will ship as soon as it is back in stock.
Description
Description

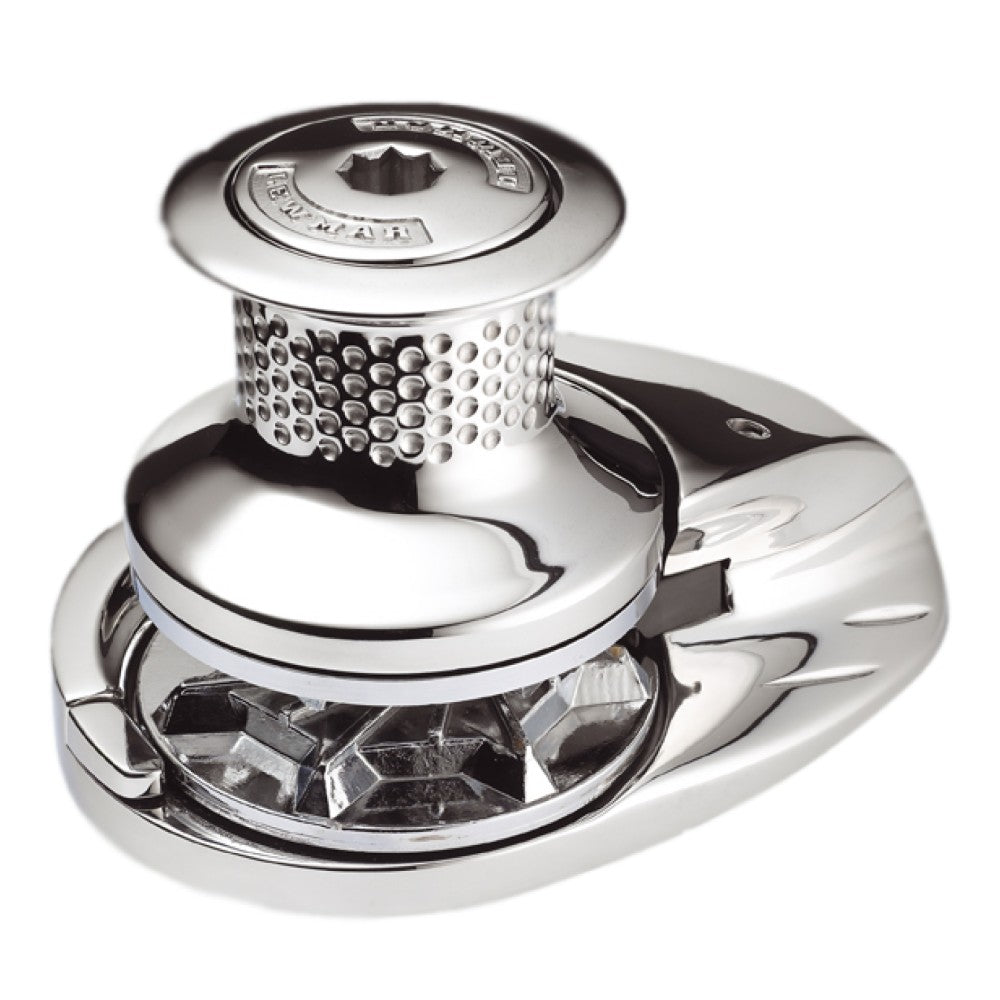

All Stainless Vertical Electric Windlass for Power and Sail Boats up to 13m (44ft). Windlass kits feature Fastfit™ Motor Gearboxes.
FastFit™ Feature:
FastFit™ motor gearbox attachment enables the windlass to be fitted by one man alone.
While the gearbox alignment to the deck unit is critical to a standard installation, the FastFit™ clamping system perfectly aligns the deck unit and motorgearbox for a perfect fit first time.

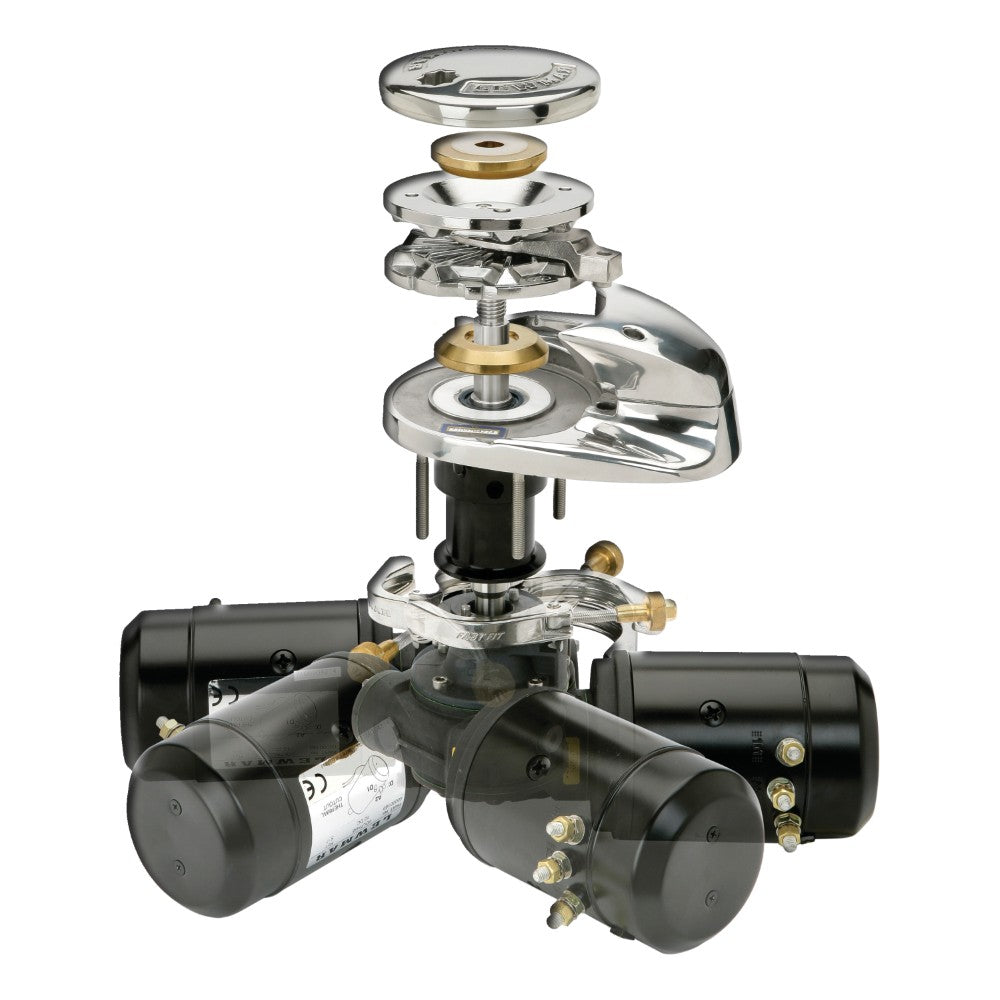

- FastFit™ enables the motor / gearbox to be rotated and fixed in increments of 45°.
- To install your windlass, simply fix the deck unit to the deck and then slide the gearbox up the shaft, swing the FastFit™ clamp shut and tighten up the bronze nut.
Our Part # LEW6672011108138 | Lewmar Part # 6672011108-138
Features
Features
Features:
- Rope-chain gypsy.
- Manual chain release (Free Fall).
- Cone clutch for smooth, easy control.
- W.A.R.P Drum.
- Fall safe anchor lock.

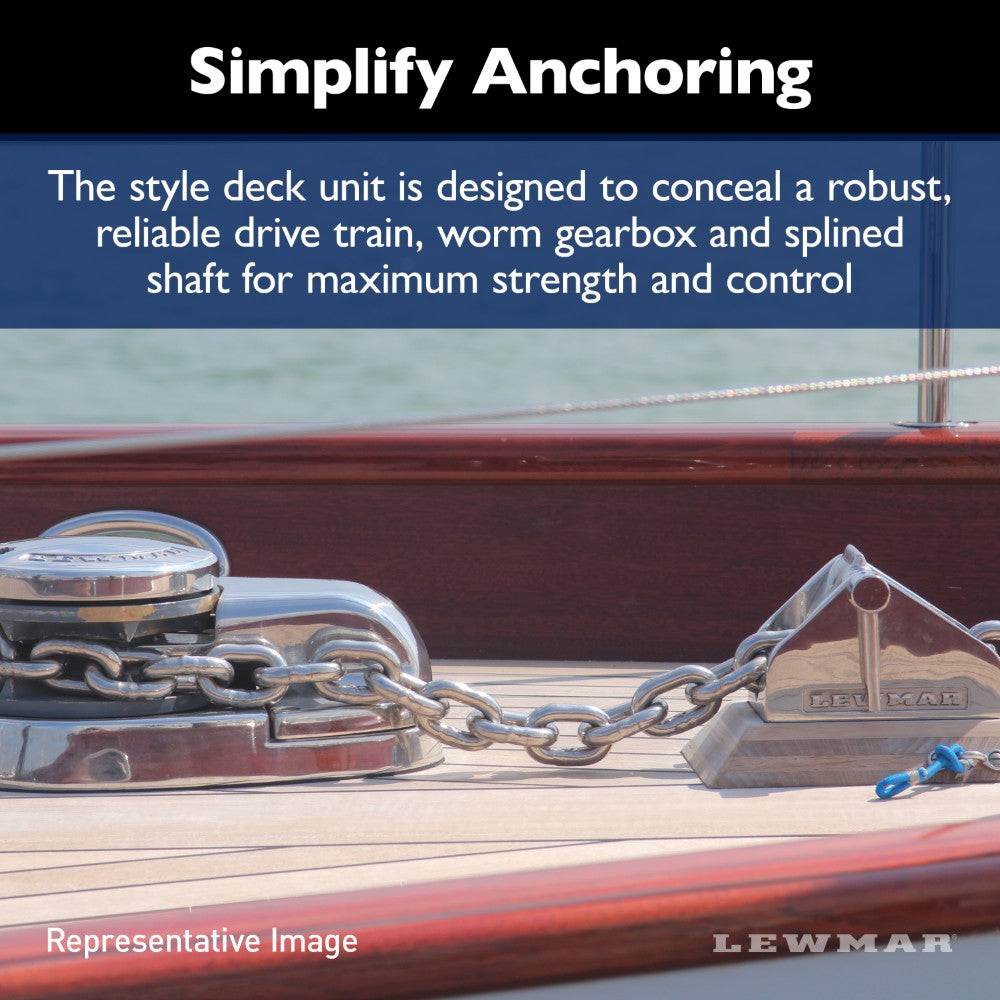

- Robust/reliable worm gearbox.
- FastFit™ option for quicker installation and less hassle.
- Emergency recovery kit available.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Windlasses:
Sizing
Sizing
Description | Metric | Imperial |
---|---|---|
Gypsy Number | 002 | 002 |
Size | 10.00 mm. | 2/5 in. |
Chain Description | 10.00 mm DIN 766. | Campbell 3/8 in. S4 |
Rope Description | 12.00 - 16.00 mm. 3-Strand and 8-plait (5/8 only) | 1/2 - 5/8 in. 3-Strand and 8-plait (5/8 only) |
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Motor Power | 900.00 W. | 900.00 W. |
Max Pull | 750.00 kg. | 1675.00 lb. |
Working Load Limit | 180.00 kg. | 396.00 lb. |
Max Line Speed | 24.00 m./min. | 79.00 ft./min. |
Normal Current Draw | 45.00 amp. | 45.00 amp. |
Circuit Breaker | 50.00 amp. | 50.00 amp. |
App Weight Gypsy Only | 19.00 kg. | 42.00 lb. |
App weight Gypsy/Drum | 22.00 kg. | 48.50 lb. |
