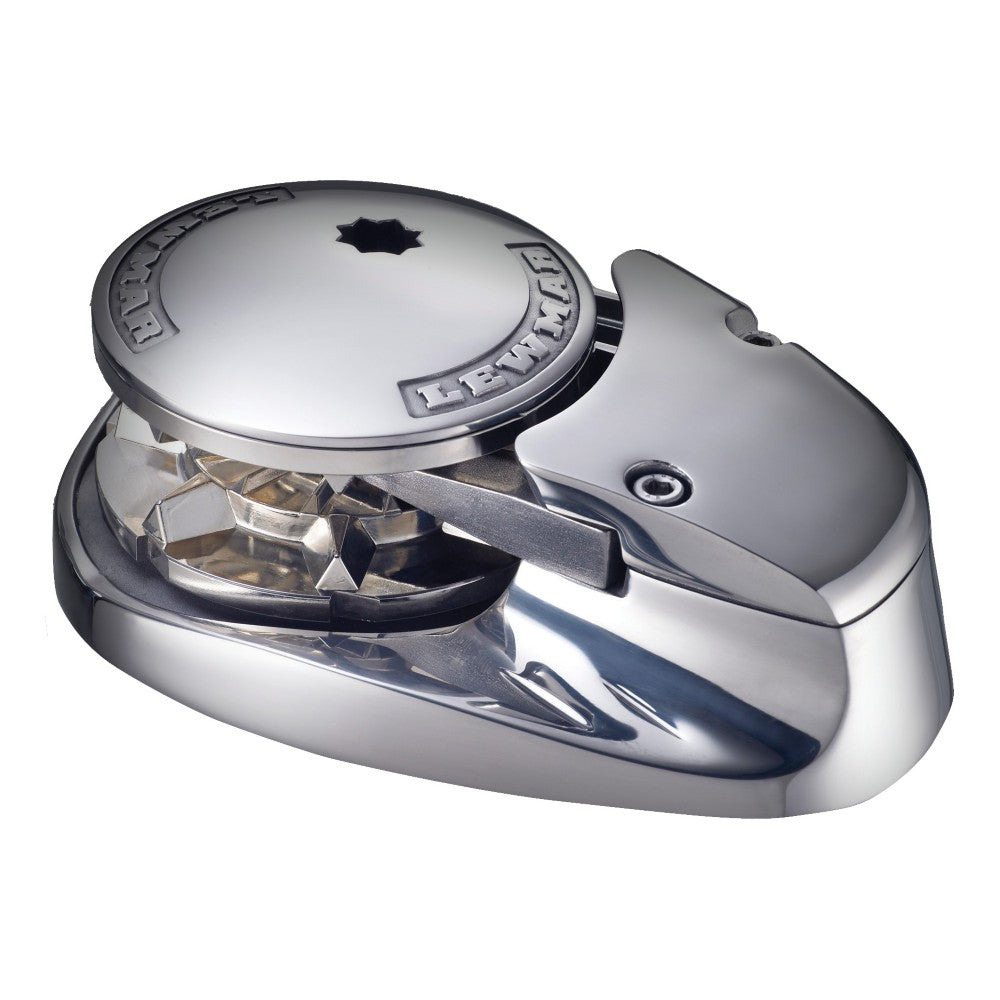

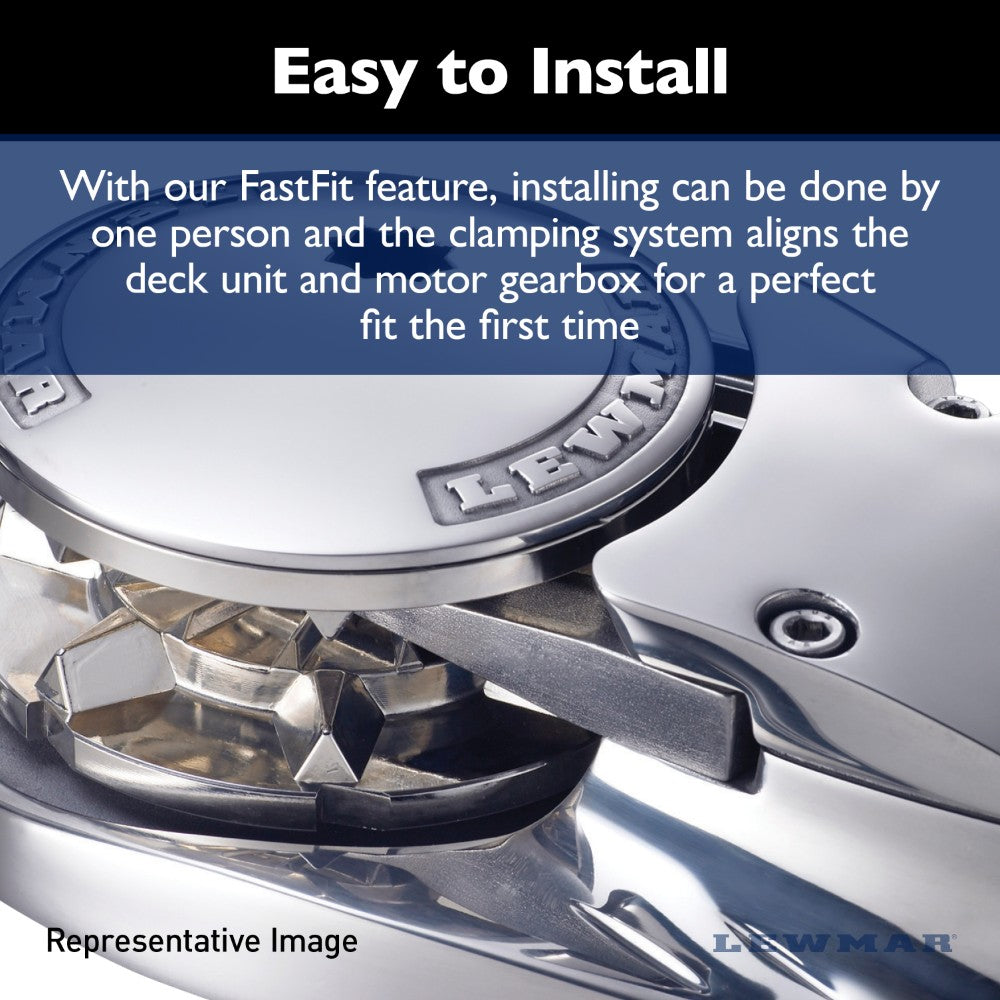

Lewmar Windlass - V700 320W Vertical Electric 12V Gypsy Only 6mm - DIN 766

SKU: LEW6670011108312  |  Manuf. Code: 6670011108-312
$1,570.70 $1,020.95 USD

Description

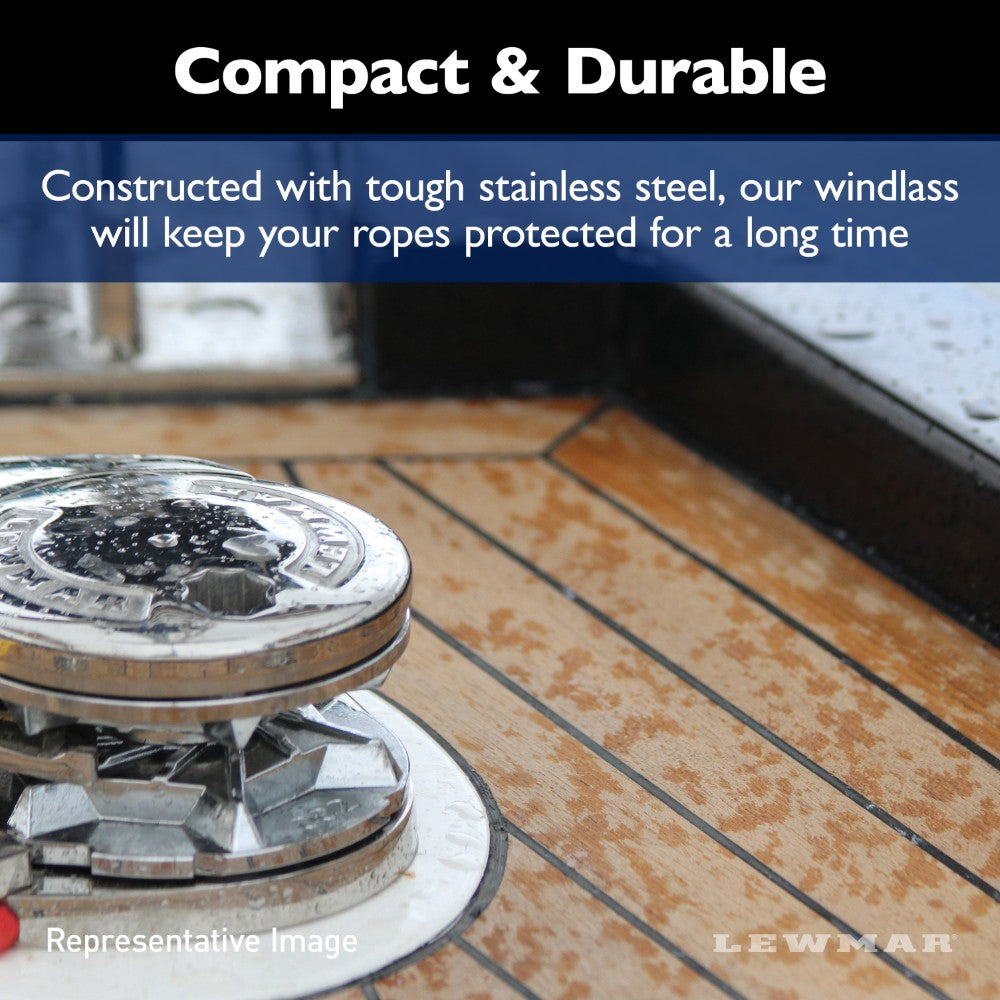

With 100% 316 stainless steel housing and a sleek flush-mount design that hides the motor down below, the V700 is one of the most attractive and durable windlasses on the market. It works at the push of a button and has two built-in features that make it unique; motor protection and anchor lock. Plus it's affordable.

The V700 now comes with a gypsy able to accept both 6mm and 7mm (1/4) inch chains.

  • Fits calibrated chains: 6mm DIN766, 1/4" G4 or BBB, 7mm DIN766
  • Minimal parts for enhanced reliability
  • Late configure boat / chain on boatyard assembly line
  • Registered Community Design No. 001740531-0001

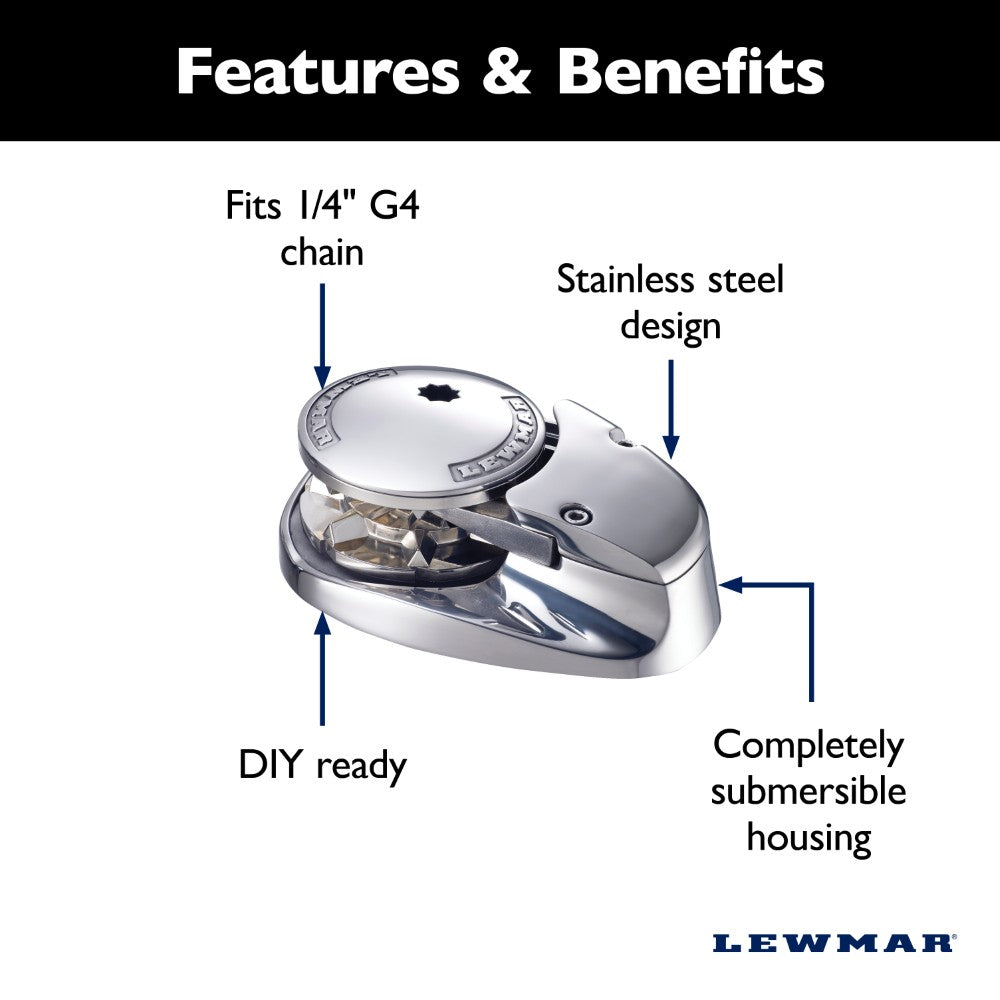

Features
  • 100% 316 stainless steel deck unit
  • IP Rated Housing
  • Fall Safe anchor lock
  • Fast line speed

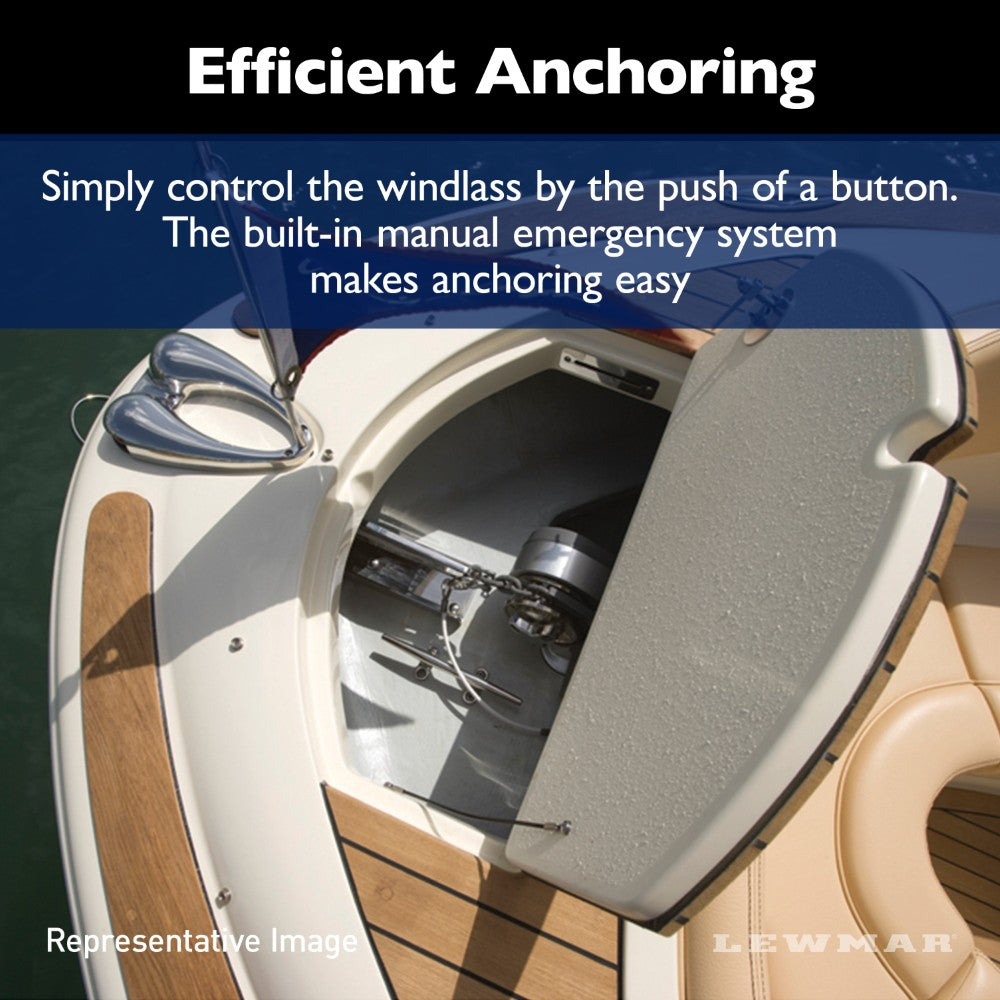

  • Manual recovery
  • Impact-resistant motor cover

Kit includes Contactor and Circuit Breaker.

Our Part # LEW6670011108312 | Mfr. Part # 6670011108-312

Knowledge Base

Click on the following technical articles to find relevant information about Windlasses:

Sizing


DescriptionMetricImperial
Gypsy Number603603
Size6.00 mm.1/4 in.
Chain DescriptionDual 6.00 mm. DIN766, 7.00 mm. DIN7661/4 in. G4 or BBB
Rope Description12.00 - 14.00 mm. 3-Strand and 8-plait1/2 in. 3-Strand and 8-plait

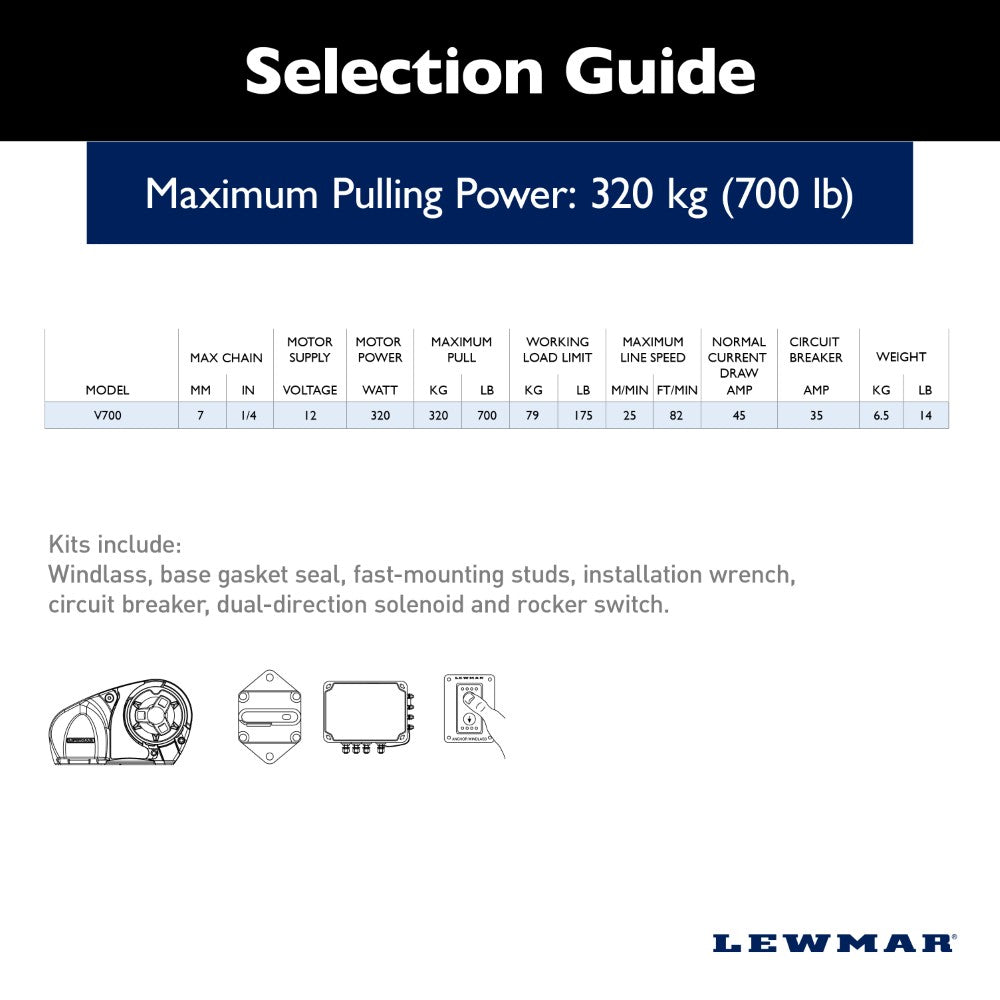

Technical Information


DescriptionImperialMetric
Gypsy Number603603
Motor Supply12 V12 V
Motor Power320 W320 W
Max Pull700.00 lb.320.00 kg.
Working Load Limit175.00 lb.79.00 kg.
Max Line Speed82.00 ft./min.25.00 m./min.
Typical Line Speed50.00 ft./min.15.00 m./min.
Normal Current Draw45.00 amp45.00 amp
Circuit Breaker35.00 amp35.00 amp
Weight Gypsy Only14.00 lb.6.50 kg.
