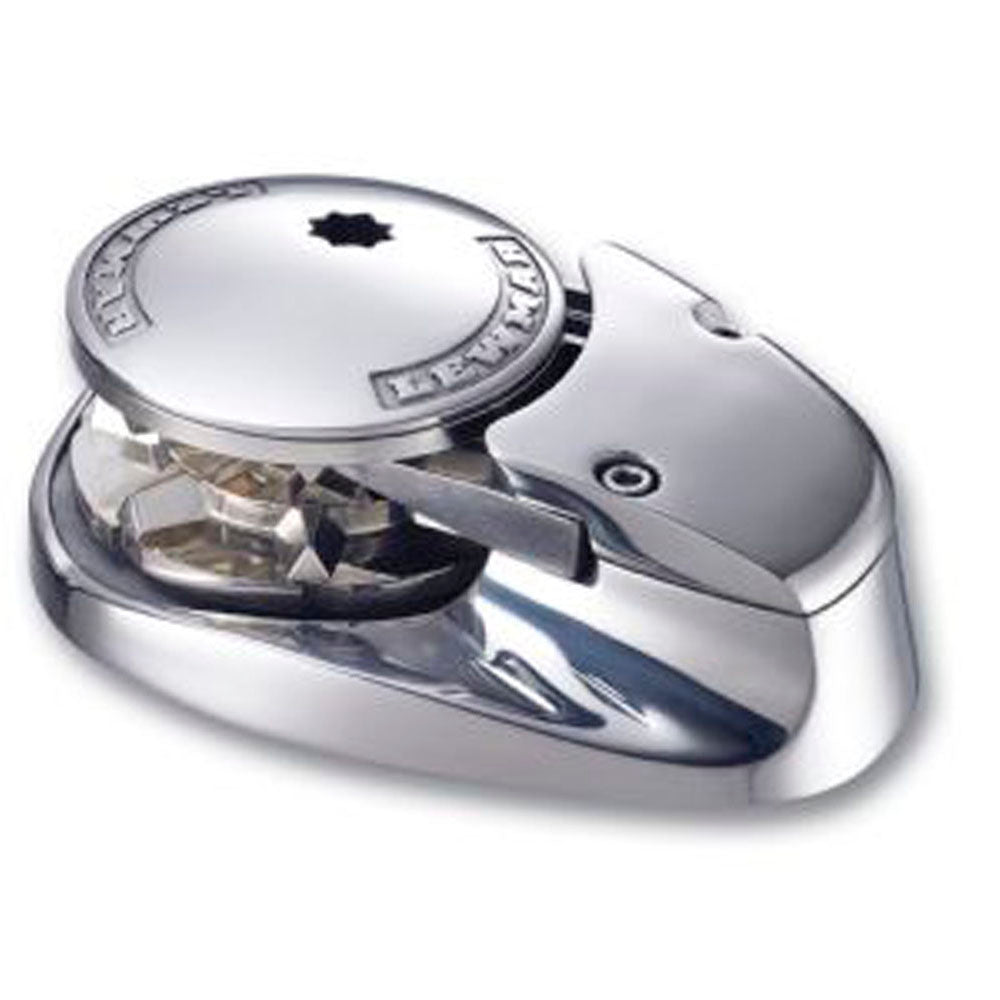

Lewmar Windlass - V700 No Switch Kit 320W Vertical Electric 12V Gypsy Only 6mm - DIN 766
Lewmar Windlass - V700 No Switch Kit 320W Vertical Electric 12V Gypsy Only 6mm - DIN 766 is backordered and will ship as soon as it is back in stock.
Description
Description
The Lewmar Windlass - V700 No Switch Kit 320W Vertical Electric 12V Gypsy Only 6mm - DIN 766 #6670011108 is a reliable companion for smooth anchoring. With its compact design, it tucks the motor neatly below deck, keeping everything sleek and out of sight. The V700 also features motor protection and an anchor lock for added peace of mind.
Features & Benefits
- 100% 316 stainless steel housing for exceptional durability
- Flush-mount design for a clean and discreet appearance
- Dual Chain Gypsy compatible with both 6mm and 7mm chains
- Easy push-button operation
- Built-in motor protection and anchor lock
Crafted from robust 316 stainless steel, the V700 Windlass is built to withstand the harsh marine environment. Its flush-mount design offers seamless integration, hiding the motor below deck. This windlass is perfect for chains sized 6mm and 7mm (1/4 inch) due to its versatile dual chain gypsy.
Features
Features
Features:
- 100% 316 Stainless Steel Deck Unit.
- IP67 Rated (Water resistant to 1 meter).
- Fall Safe Anchor lock.
- Fast line speed.
- Impact-resistant motor cover.
- 5-year warranty.
- For boats up to 10.5m (35 ft).
- Fits calibrated chains: 6mm DIN766, 1/4 in G4 or BBB, 7mm DIN766.
- Minimal parts for enhanced reliability.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Windlasses:
Sizing
Sizing
Description | Metric | Imperial |
---|---|---|
Gypsy Number | 603 | 603 |
Size | 6.00 mm. | 1/4 in. |
Chain Description | Dual 6.00 mm. DIN766, 7.00 mm. DIN766 | 1/4 in. G4 or BBB |
Rope Description | 12.00 - 14.00 mm. 3-Strand and 8-plait | 1/2 in. 3-Strand and 8-plait |
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Gypsy Number | 603 | 603 |
Motor Supply | 12 V. | 12 V. |
Motor Power | 320 W. | 320 W. |
Max Pull | 320.00 kg. | 700.00 lb. |
Working Load Limit | 79.00 kg. | 175.00 lb. |
Max Line Speed | 25.00 m./min. | 82.00 ft./min. |
Typical Line Speed | 15.00 m./min. | 50.00 ft./min. |
Normal Current Draw | 45.00 amp | 45.00 amp |
Circuit Breaker | 35.00 amp. | 35.00 amp. |
Weight Gypsy Only | 6.50 kg. | 14.00 lb. |
