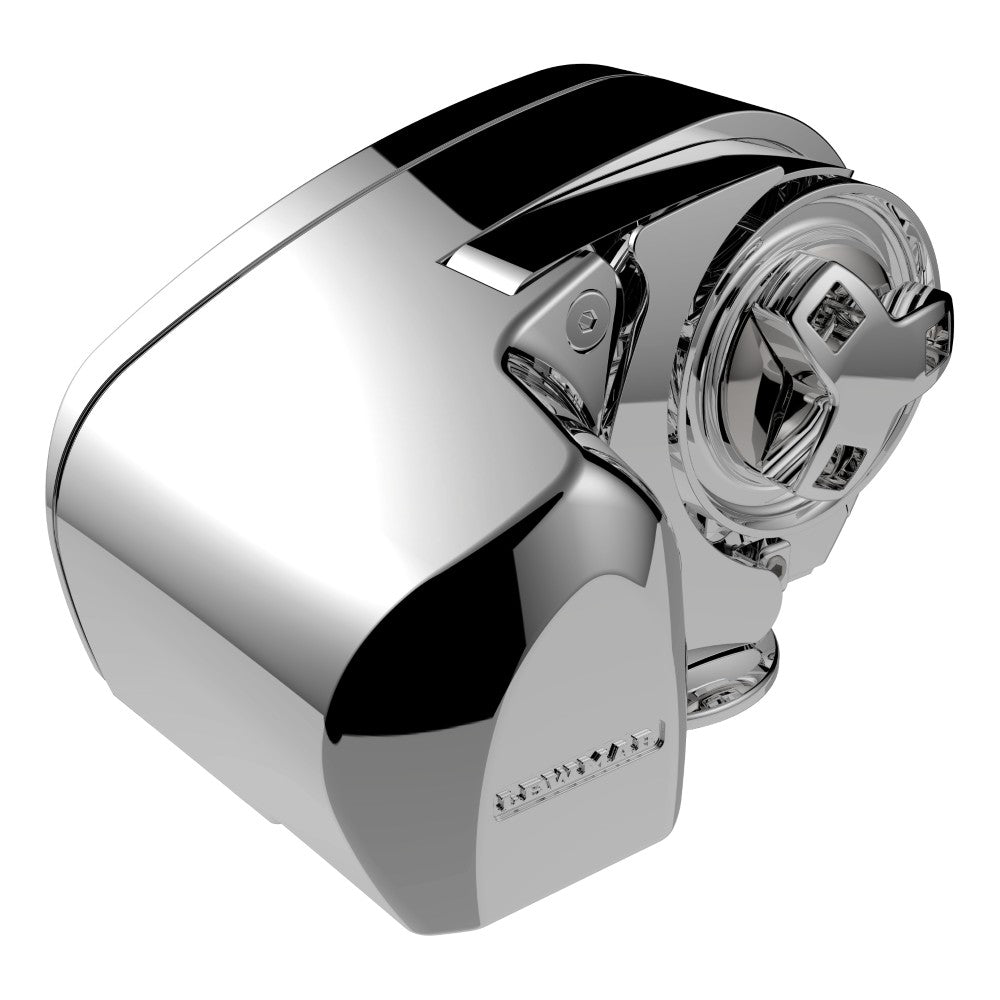

Lewmar Windlass - Pro-Series 700 Free Fall 500W Horizontal Electric 12V Gypsy Only 6/7mm - DIN 766
Lewmar Windlass - Pro-Series 700 Free Fall 500W Horizontal Electric 12V Gypsy Only 6/7mm - DIN 766 is backordered and will ship as soon as it is back in stock.
Description
Description
The Lewmar Pro Series Windlass features a redesigned control arm and new rope guard and gypsy that work flawlessly with lead line and will also be available as an upgrade kit for existing Pro-Series windlasses.
Our Part # LEW6656011967310 | Lewmar Part # 6656011967-310
Features
Features
Features:

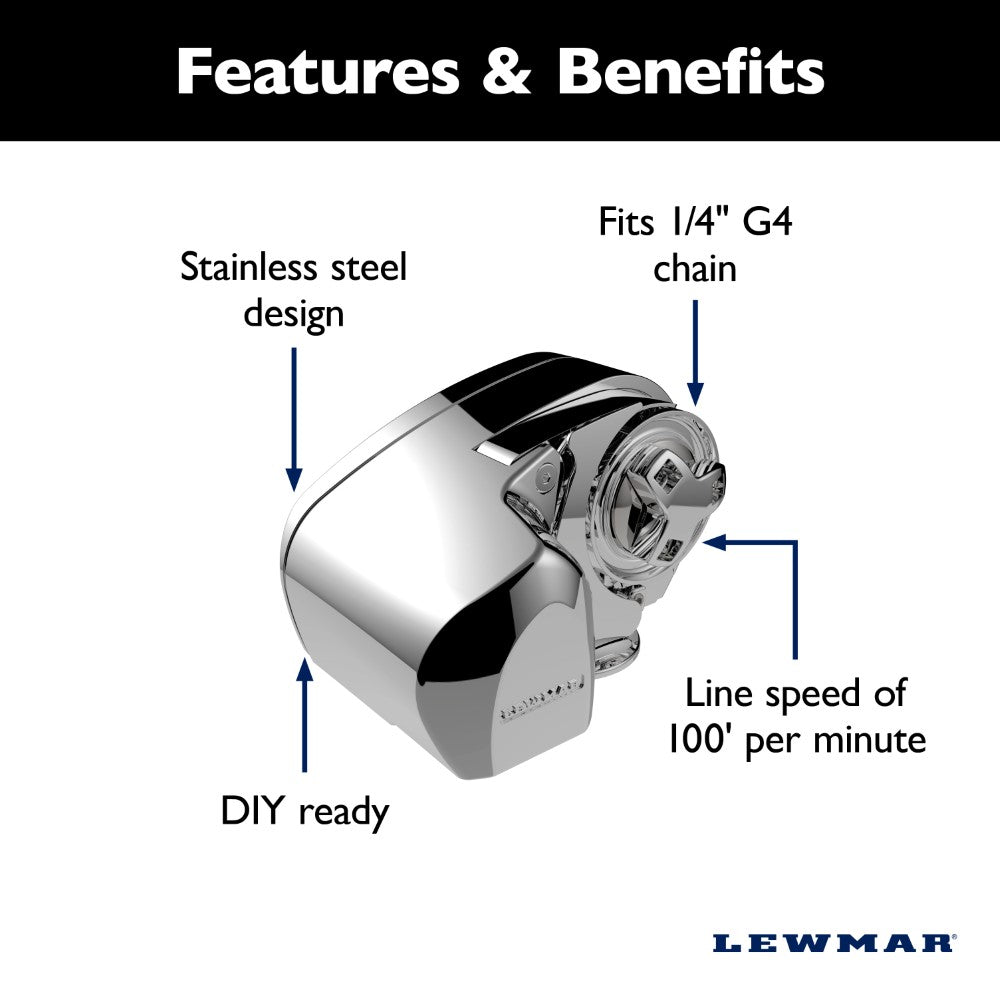

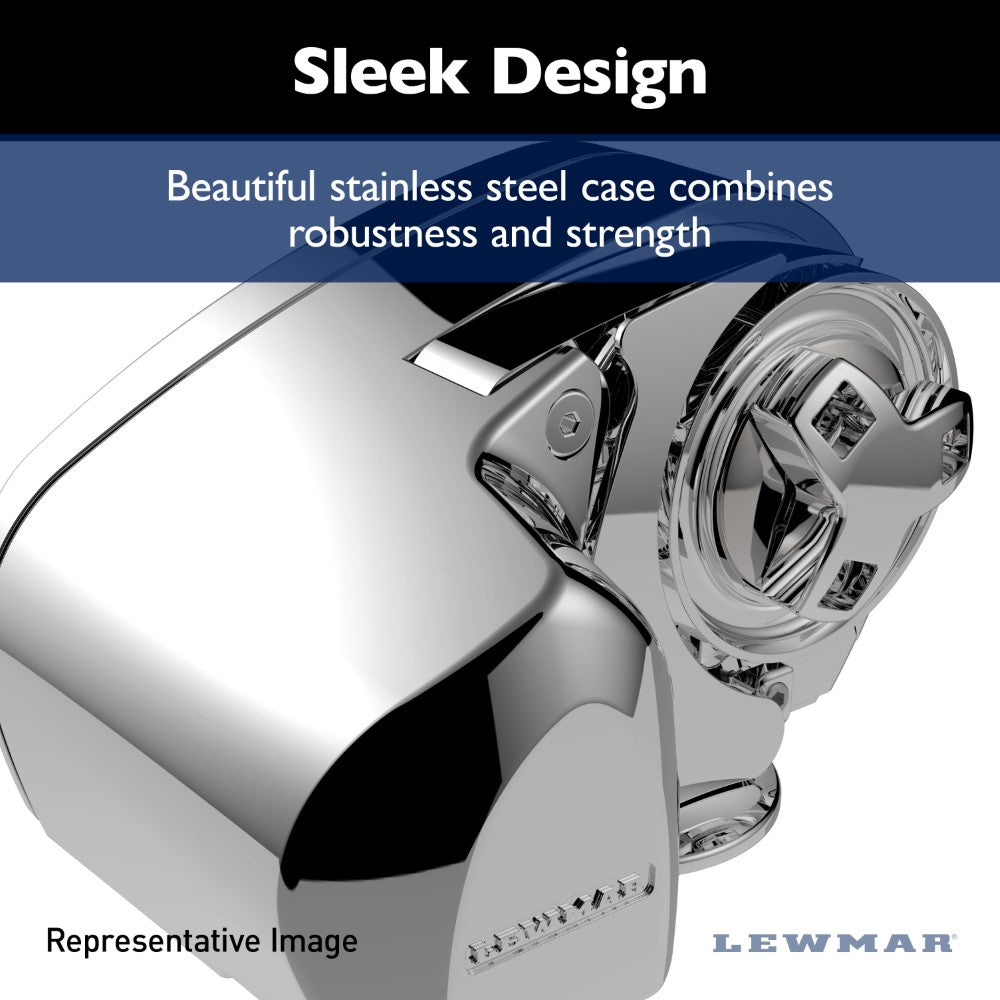

- All stainless design.
- NEW guard optimises performance with rope.
- NEW gypsy design for lead line applications.

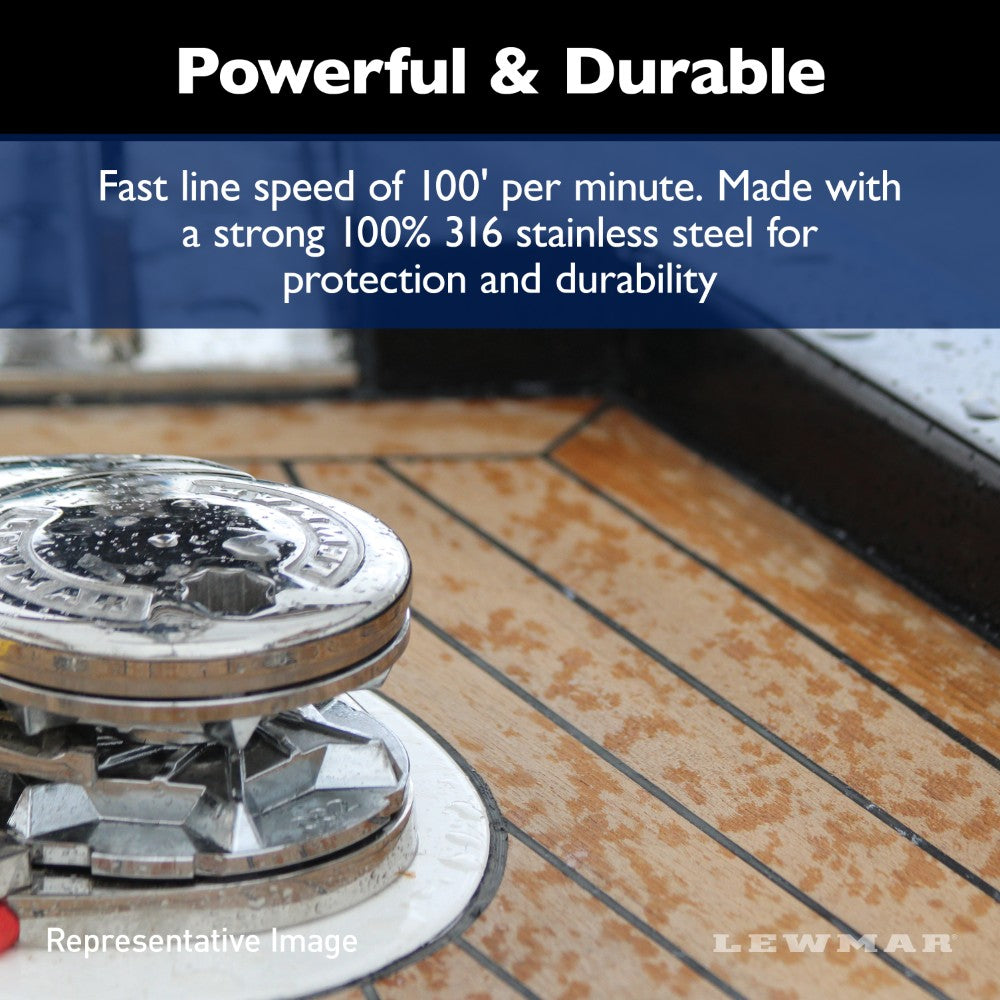

- Powerful motor providing fast line speed.

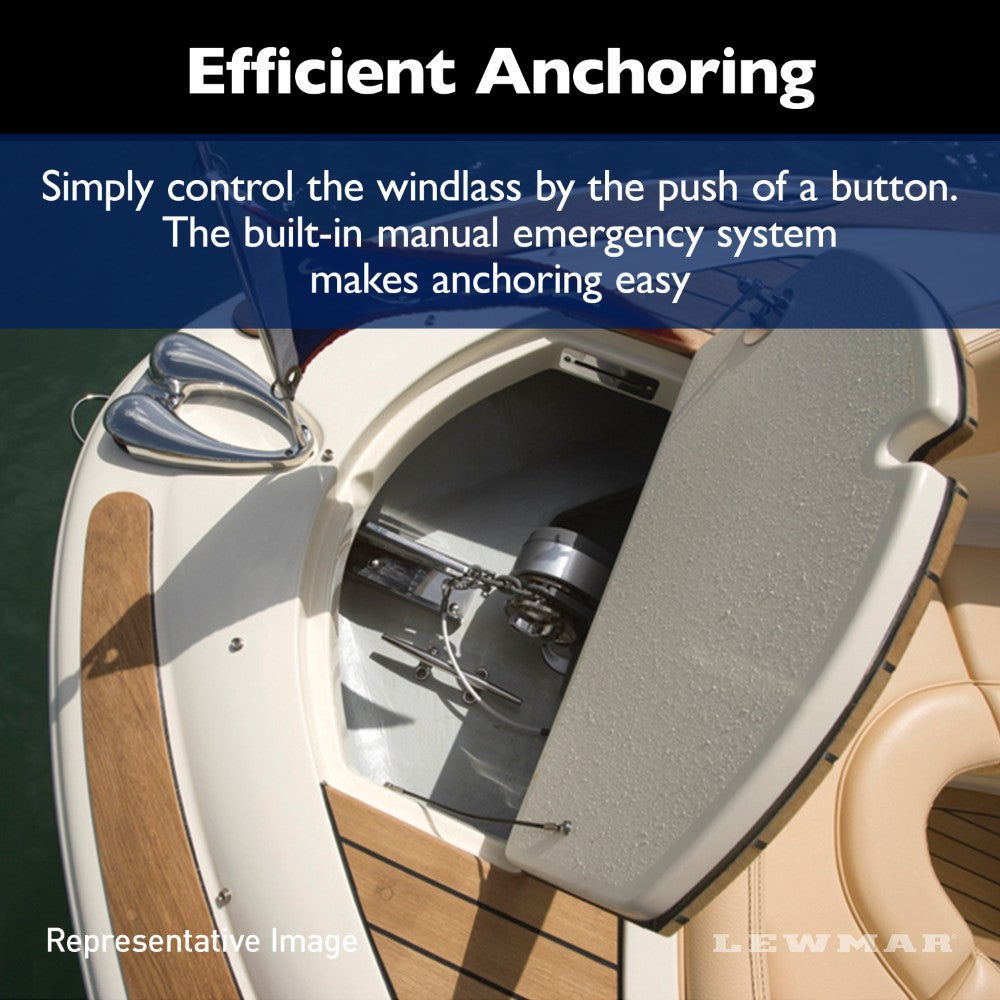

- Manual emergency recovery equipped all you need is a common 1/2 in socket wrench.

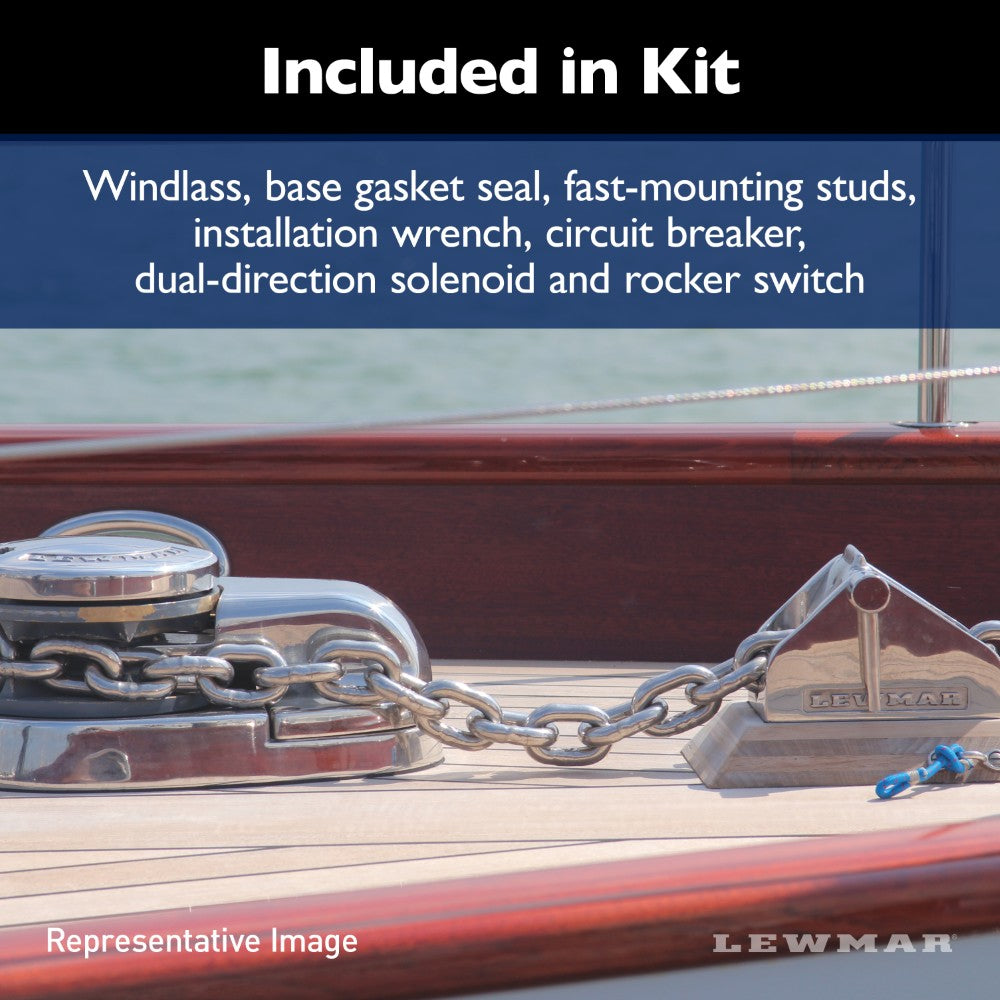

Kit Contains:
- Windlass.
- Base Gasket Seal.
- Fast Mounting Studs.
- Installation Wrench.
- Circuit breaker.
- Dual-Direction solenoid.
- Rocker Switch.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Windlasses:
Sizing
Sizing
Description | Imperial | Metric |
---|---|---|
Gypsy Number | 503 | |
Size | 1/4 in. | 6.00 mm. |
Chain Description | 1/4 in. ISO G4, 1/4 in. BBB | 7.00 mm DIN 766 |
Rope Description | 1/2 in. 3-Strand and 8-plait | 12.00 - 14.00 mm. 3-Strand and 8-plait |
Technical Information
Technical Information

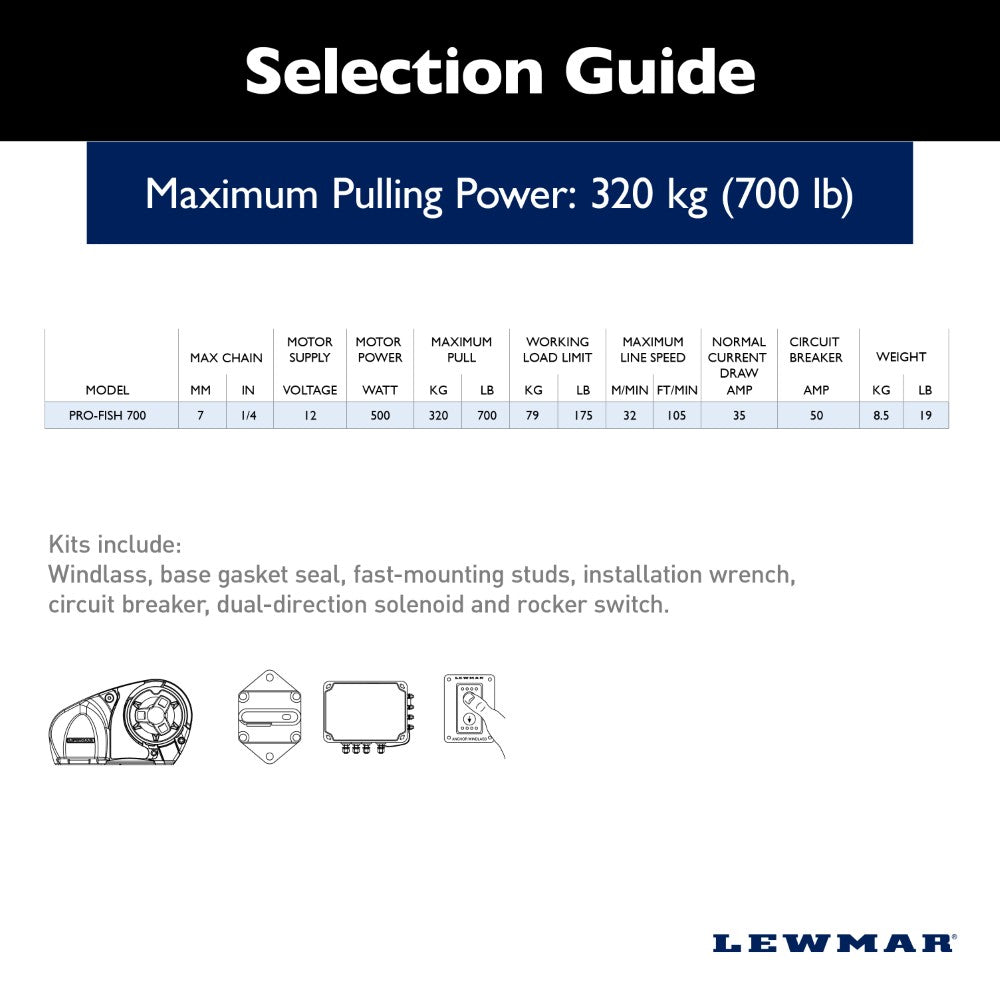

Description | Imperial | Metric |
---|---|---|
Max Chain | 1/4 in. | 7.00 mm. |
Motor Supply | 12.00 V. | |
Motor Power | 500.00 W. | |
Max Pull | 700.00 lb. | 320.00 kg. |
Working Load Limit | 175.00 lb. | 79.00 kg. |
Max Line Speed | 105.00 ft./min. | 32.00 m./min. |
Normal Current Draw | 35.00 amp. | |
Circuit Breaker | 50.00 amp. | |
Weight | 19.00 lb. | 8.50 kg. |
Rope Description | 1/2 in. 3-strand and 8 plait | 12.00 mm. 3-strand and 8 platt |
