Lewmar Low Profile D-Hatch - 17 5/8 x 23 1/8 in. (448 x 587 mm) (Grey Acrylic / Silver Frame) - Size 51
Lewmar Low Profile D-Hatch - 17 5/8 x 23 1/8 in. (448 x 587 mm) (Grey Acrylic / Silver Frame) - Size 51 is backordered and will ship as soon as it is back in stock.
Description
Description
The Lewmar Low Profile D-Hatch #39951030 is perfect for enhancing boat ventilation with its sleek, soft styling. It's designed to fit seamlessly on powerboats and sailboats, making it versatile for both smaller ventilation needs and as a foredeck hatch on yachts. This hatch combines functionality with a stylish look, making it a great addition to your marine setup.
Features & Benefits
- Soft styling and sleek design
- Ideal for powerboats and sailboats
- Suitable for any deck location
- Can serve as foredeck hatch for smaller to mid-size yachts
Crafted from durable grey acrylic with a silver frame, this hatch measures 17 5/8 x 23 1/8 inches (448 x 587 mm). It fits flat surfaces with a maximum tolerance of +/- 1mm and utilizes M6 / 1/4" fastening at the hinge section and 5mm CSK screw No.10 UNC 2 BA for the lower frame. This hatch is a reliable choice for those looking to improve air circulation aboard their vessel.
Features
Features
Features:
- Outside handles allow the hatch to be opened from on deck if it is not locked (Sizes 00, 03,10, 20 & 41 have no outside handle and can only be opened from the inside)
- Low profile hatches open up to 180 degrees (round hatches open to 170 degrees)
- Friction levers hold the lid open in any position up to 95 degrees
- Anodised aluminium frame for corrosion resistance
- Curved upper frame profile for strength as well as modern styling
- Available in Round and D-Hatch configuration
- Full range of spare parts available
Technical Information
Technical Information

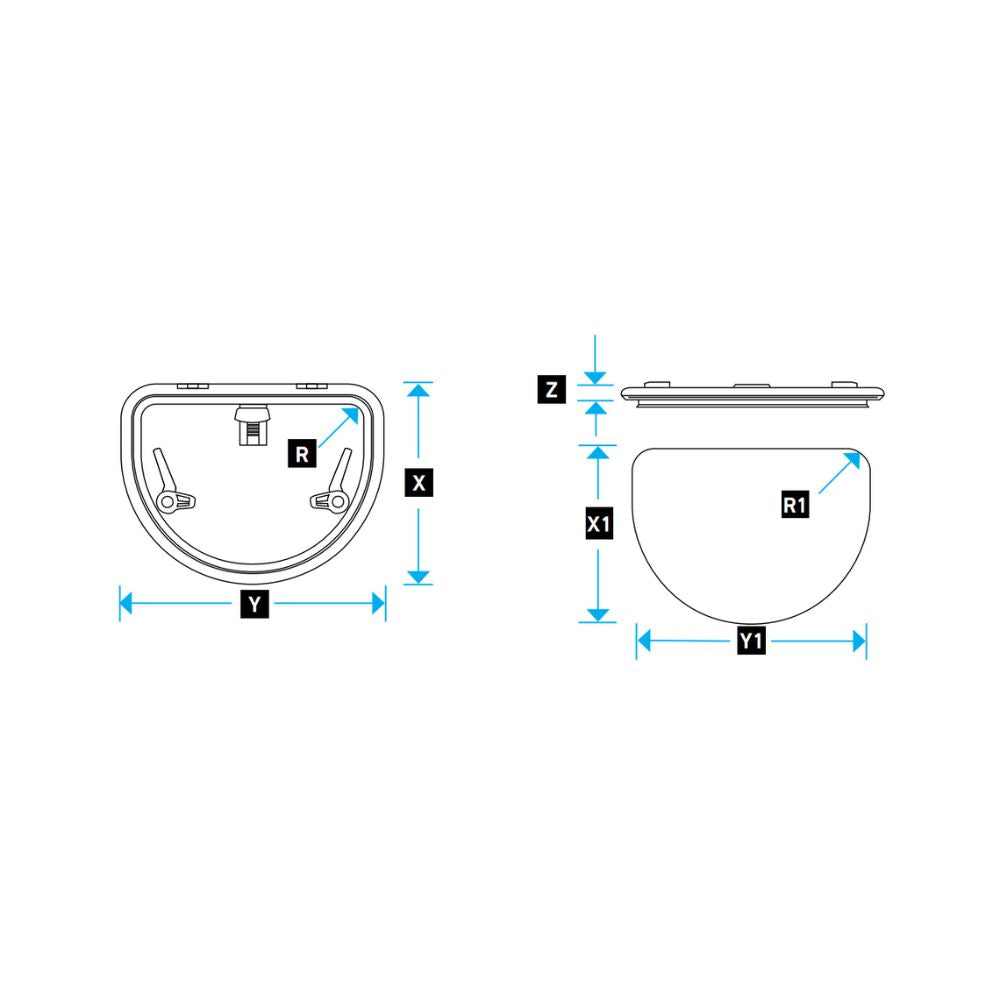

Description | Imperial | Metric |
---|---|---|
Size | 51.00 | 51.00 |
Lower Frame Flang | 9/16 in. | 15.00 mm. |
X (Lenght) | 17 5/8 in. | 448.00 mm. |
Y (Width) | 23 1/8 in. | 588.00 mm. |
Z (Height) | 1.00 in. | 25.00 mm. |
R (Radii) | 2 6/7 in. | 72.50 mm. |
X1 (Length) | 14 7/8 in. | 378.00 mm. |
Y1 (Width) | 20 3/8 in. | 518.00 mm. |
R1 (Radii) | 1 11/16 in. | 42.50 mm. |
Acrylic Window Thickness | 3/8 in. | 10.00 mm. |
Hatch Weight | 14.10 lb. | 6.40 kg. |
