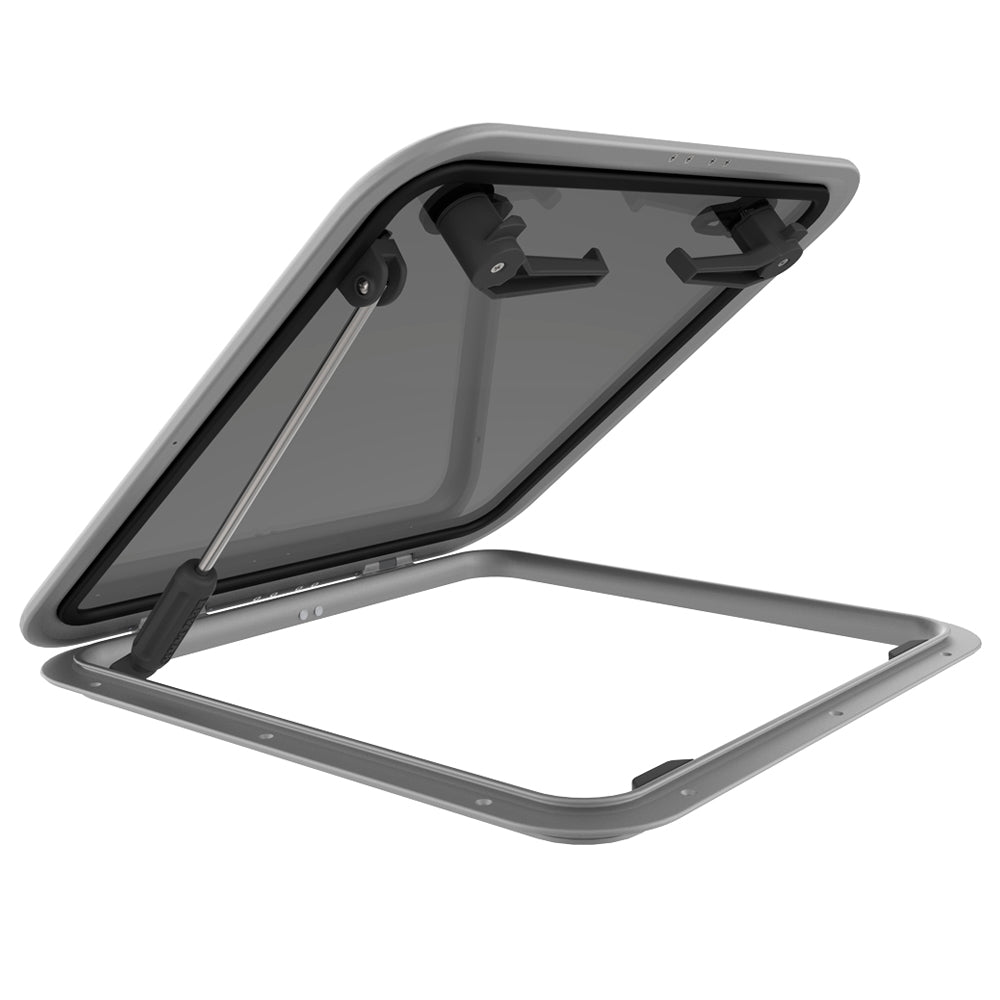

Lewmar Low Profile Hatch - 15 5/8 x 20 3/4 in. (397 x 527 mm) (Grey Acrylic / Silver Frame) with Stay - Size 30
Lewmar Low Profile Hatch - 15 5/8 x 20 3/4 in. (397 x 527 mm) (Grey Acrylic / Silver Frame) with Stay - Size 30 is backordered and will ship as soon as it is back in stock.
Description
Description
The Lewmar Low Profile Hatch #399300303 is perfect for adding sleek style and functionality to your powerboat or sailboat. This sturdy hatch is designed for easy installation and offers optimal ventilation especially suited for mid-sized yachts. Its thoughtful engineering ensures it blends seamlessly with your vessel's aesthetics.
Features & Benefits
- Sleek, low-profile design for aesthetic appeal
- Grey acrylic lens with a silver frame for durability and style
- Easy installation on flat surfaces with a maximum tolerance of +/- 1mm
- Suitable for both powerboats and sailboats
This Lewmar hatch is crafted with a grey acrylic lens and a silver frame, ensuring both durability and a sleek appearance. It measures 15 5/8 x 20 3/4 inches (397 x 527 mm), making it suitable for various deck locations on both sail and powerboats. Designed for longevity, it requires fastening with M6 screws at the hinge section and 5mm CSK screws for the lower frame.
Features
Features
Features:
- Outside handles allow the hatch to be opened from on deck if it is not locked (Sizes 00, 03,10, 20 & 41 have no outside handle and can only be opened from the inside)
- Low profile hatches open up to 180 degrees (round hatches open to 170 degrees)
- Friction levers hold the lid open in any position up to 95 degrees
- Anodised aluminium frame for corrosion resistance
- Curved upper frame profile for strength as well as modern styling
- Available in Round and D-Hatch configuration
- Full range of spare parts available
Technical Information
Technical Information

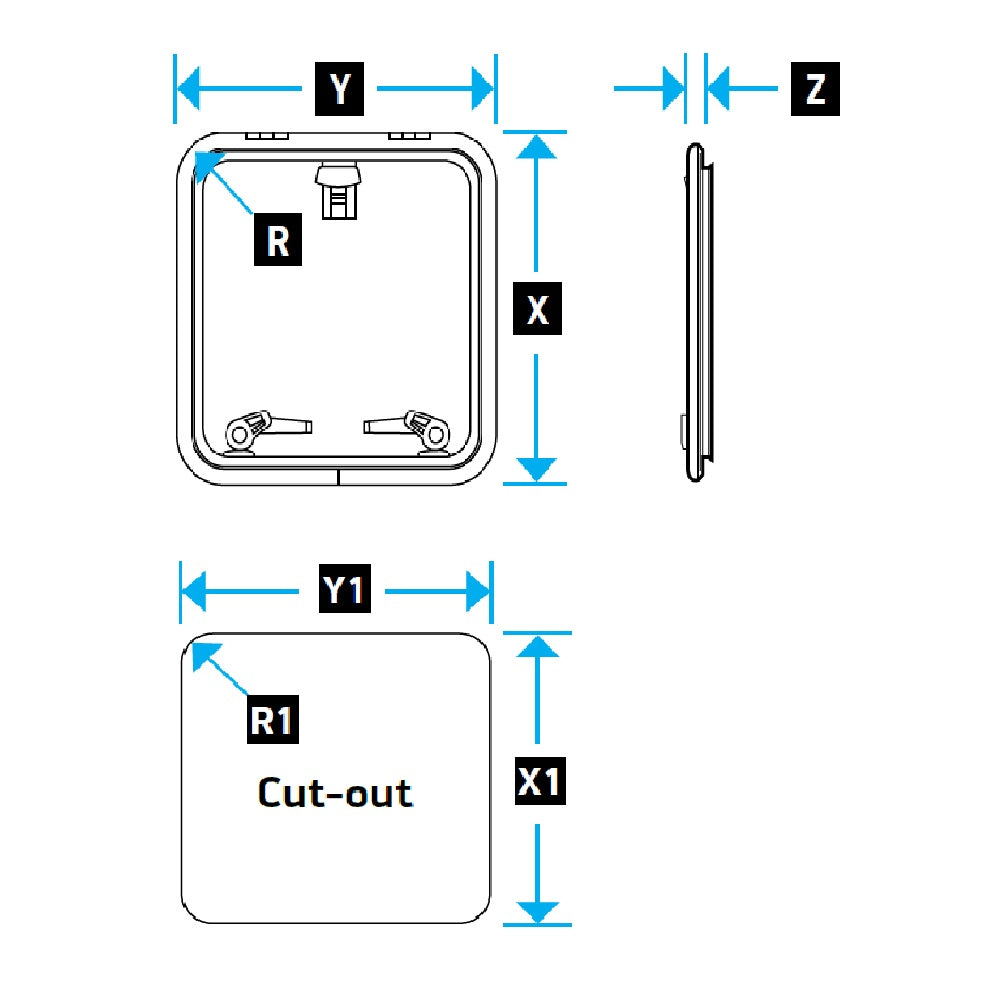

Description | Imperial | Metric |
---|---|---|
Size | 30.00 | 30.00 |
Lower Frame Flang | 9/16 in. | 15.00 mm. |
X (Lenght) | 15 5/8 in. | 397.00 mm. |
Y (Width) | 20 3/4 in. | 527.00 mm. |
Z (Height) | 1.00 in. | 25.00 mm. |
R (Radii) | 2 6/7 in. | 72.50 mm. |
X1 (Length) | 12 7/8 in. | 327.00 mm. |
Y1 (Width) | 18.00 in. | 457.00 mm. |
R1 (Radii) | 1 11/16 in. | 42.50 mm. |
Acrylic Window Thickness | 5/16 in. | 8.00 mm. |
Hatch Weight | 9.30 lb. | 4.20 kg. |
