Lewmar Stainless Portlight Size 7-RE Fixed - Round End (White Acrylic / White Trim)
Lewmar Stainless Portlight Size 7-RE Fixed - Round End (White Acrylic / White Trim) is backordered and will ship as soon as it is back in stock.
Description
Description

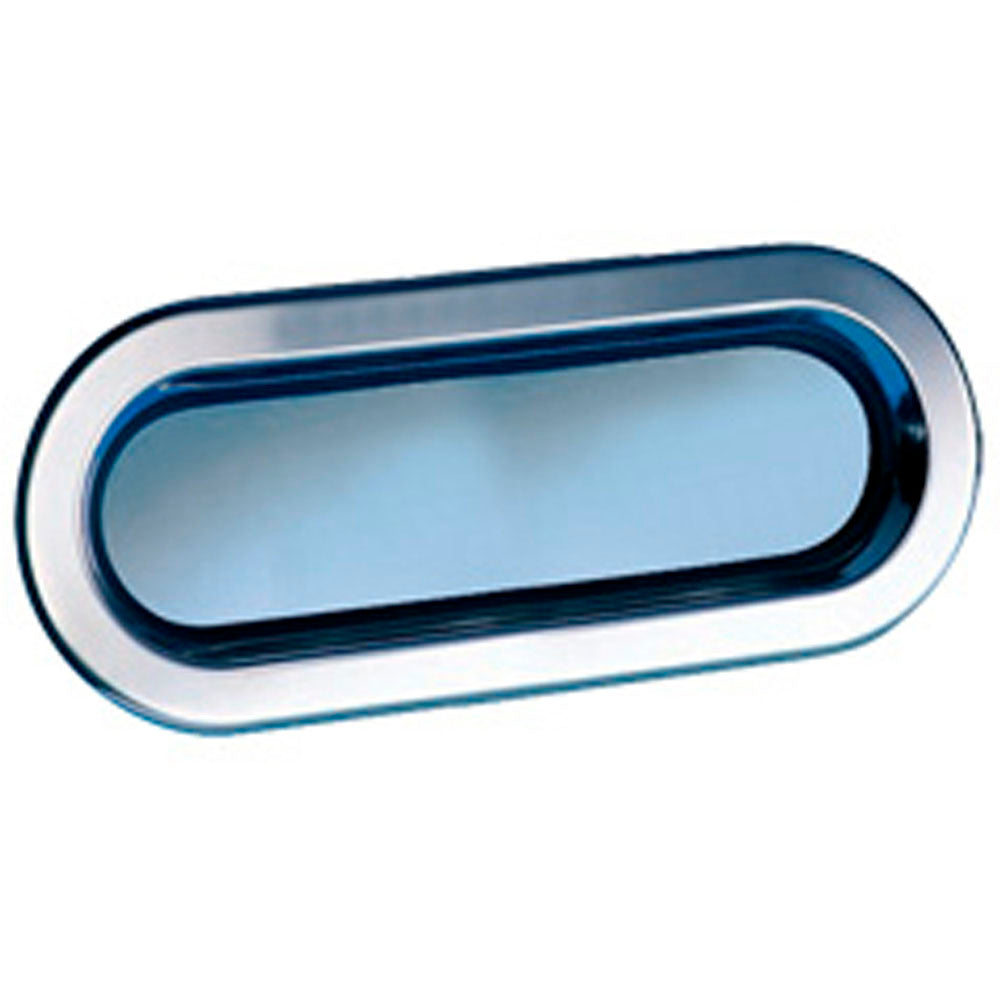

The Stainless Portlight Size 7-RE Fixed - Round End (White Acrylic / White Trim) #393770262 is a sleek addition to any boat, thanks to its polished stainless steel frame and unobstructed lens design. With a modern aesthetic, it offers both functionality and style for marine enthusiasts. It's a reliable choice that effortlessly brightens up your vessel's look.
Features & Benefits
- Highly polished stainless steel outer frame for durability and shine.
- Unobstructed lens for a clear view and modern appearance.
- White acrylic lens and white trim enhance the aesthetic appeal.
This portlight is crafted from top-quality stainless steel and features a white acrylic lens, complementing its white trim. It’s designed to fit seamlessly into marine settings while providing durability and a contemporary look. Ideal for enhancing your boat’s visual appeal and functionality without compromising on sturdiness.
Features
Features
Features:
- ABS Plastic Trim.
- Can be installed with sealant or closed cell PVC tape.
- Trim with clean styling.
- Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.
- Full range of spare parts available.
Technical Information
Technical Information

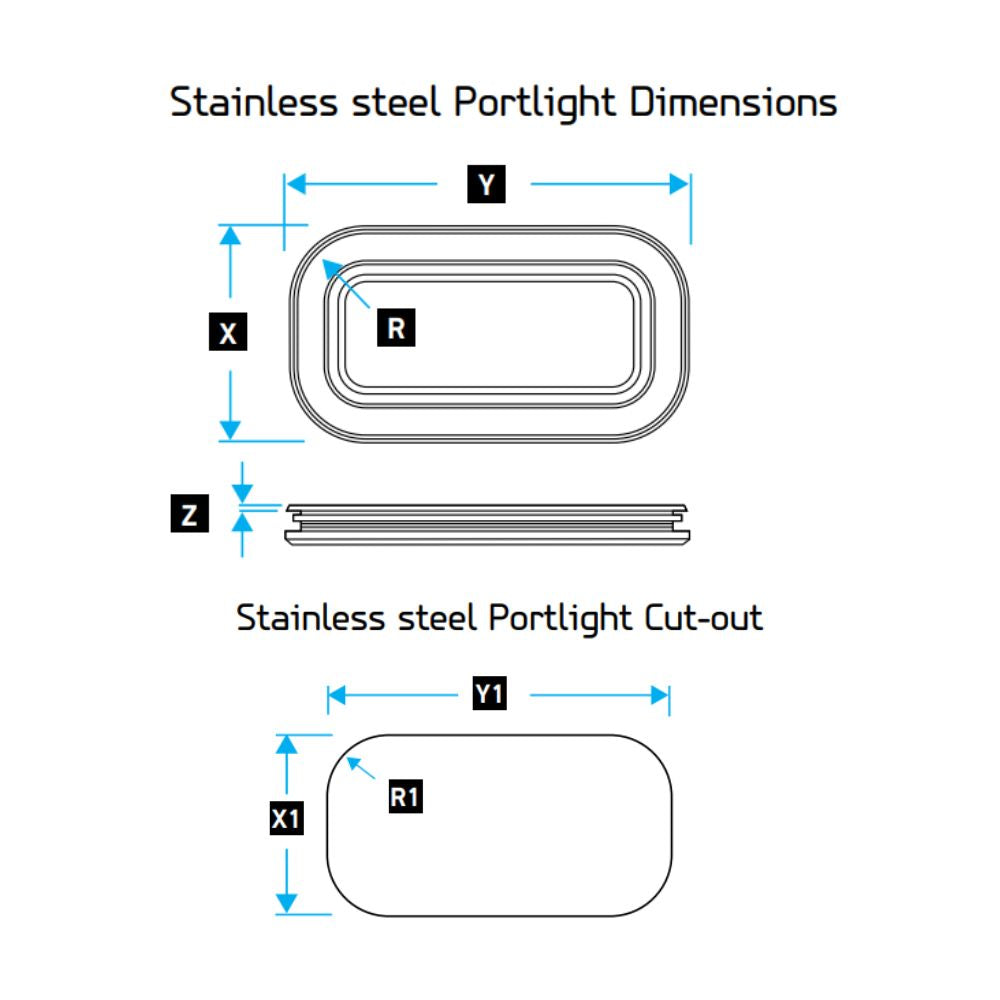

Description | Imperial | Metric |
---|---|---|
Length (X) | 7 1/2 in. | 191.00 mm. |
Width (Y) | 16 3/4 in. | 425.00 mm. |
Height (Z) | 5/32 in. | 4.00 mm. |
Radii (R) | 3 3/4 in. | 95.50 mm. |
Length (X1) | 6 3/4 in. | 171.00 mm. |
Width (Y1) | 15 15/16 in. | 405.00 mm. |
Radii (R1) | 3 3/8 in. | 85.50 mm. |
Portlight Weight | 4.18 lb. | 1.90 kg. |
Acrylic Window Thickness | 3/8 in. | 10.00 mm. |
