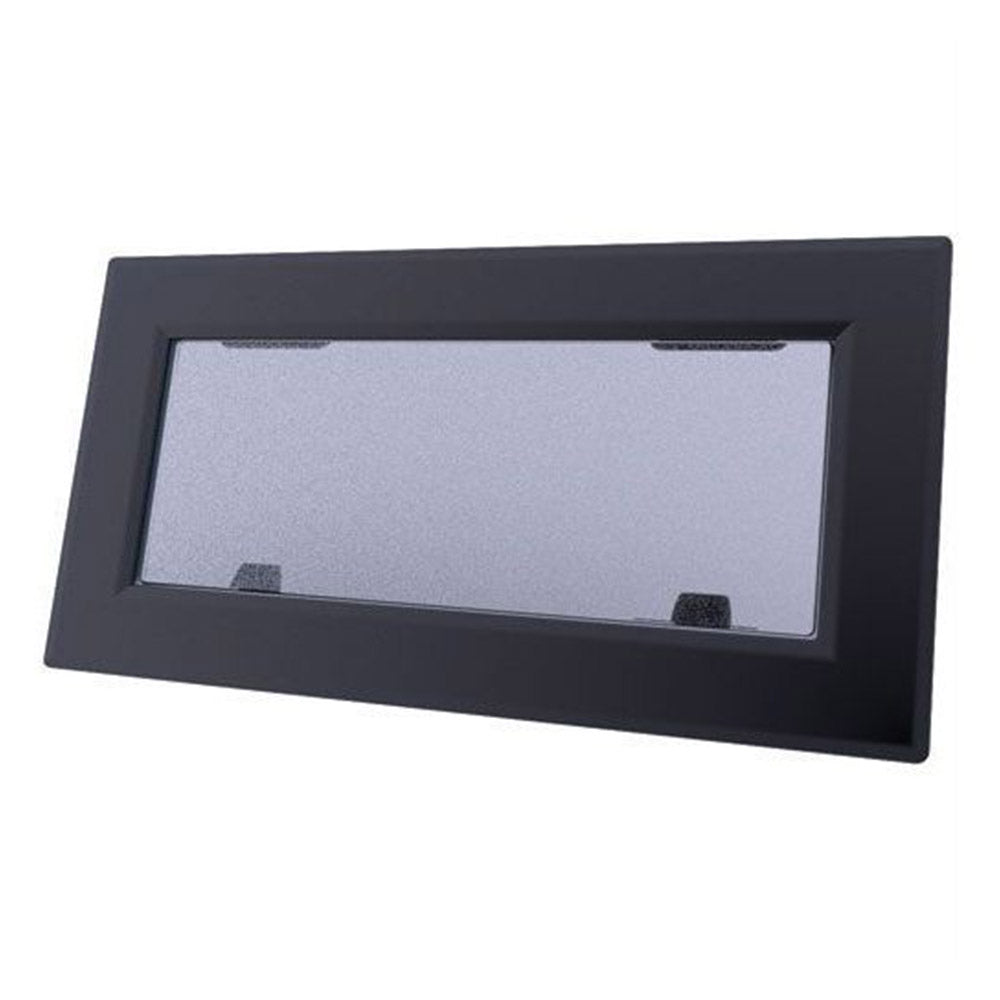

Lewmar Flush Mitre Portlight Size 5 (Grey Acrylic / Silver Frame)
Lewmar Flush Mitre Portlight Size 5 (Grey Acrylic / Silver Frame) is backordered and will ship as soon as it is back in stock.
Description
Description
The Lewmar Flush Mitre Portlight Size 5 #393529800 is a sleek and efficient portlight designed to enhance your vessel's aesthetic and functionality. Its nearly flush design with the mounting surface makes it an attractive addition to any yacht, thanks to the forward-positioned 12 mm acrylic. This portlight is not just about looks; it combines smart engineering with quality materials for performance you can rely on.
Features & Benefits
- Nearly flush design with mounting surface for a modern look.
- Durable 12 mm gray acrylic for enhanced strength and durability.
- Silver frame with increased alloy quantity for added robustness.
- Powder-coated black outer frame for a sleek appearance and better camouflage with the acrylic lens.
This lewmar portlight features a 12 mm gray acrylic panel, ensuring it is approximately flush with the mounting surface, which is a step up from traditional portlights that use 8 to 10 mm acrylic. The silver frame has been carefully crafted with increased alloy content for durability, and its flat design eliminates the angled face of standard portlights. The outer frame is powder-coated in black, providing a stylish finish that complements the acrylic lens.
Features
Features
Features:
- Number of textures, angles and levels is minimised in order to minimise the visual impact of the portlight on the boat.
- Acrylic almost flush with the mounting surface.
- Flat Outer frame powder coated black to camouflage with the acrylic lens.
- Flyscreen not supplied as standard.
Technical Information
Technical Information

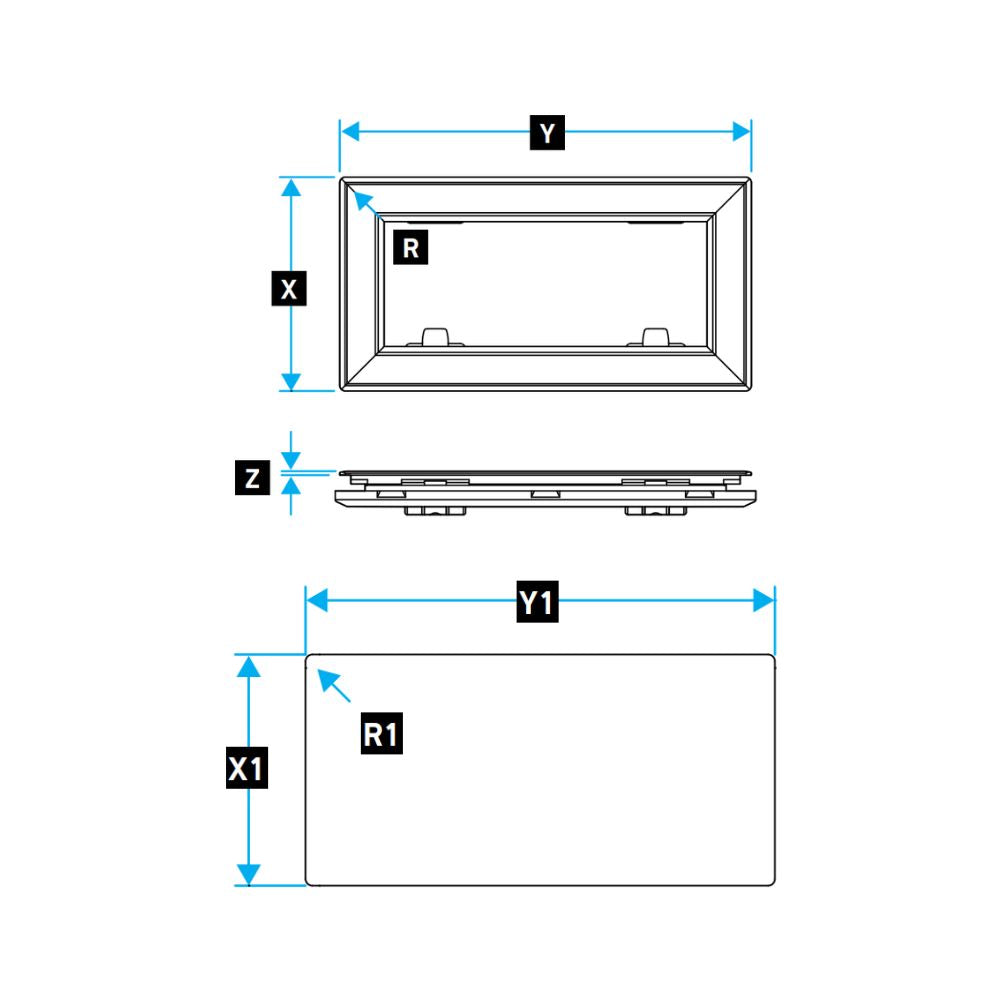

Description | Imperial | Metric |
---|---|---|
Size | 5 | |
X | 10 1/3 in. | 263.00 mm. |
Y | 17 2/3 in. | 448.00 mm. |
Z | 1/6 in. | 4.00 mm. |
R | 1/5 in. | 5.00 mm. |
X1 | 9 3/5 in. | 244.00 mm. |
Y1 | 16 8/9 in. | 429.00 mm. |
R1 | 1/5 in. | 5.00 mm. |
Weight | 5.73 lb. | 2.60 kg. |
