Lewmar  |  SKU: LEW393182200  |  Manuf. Code: 393182200

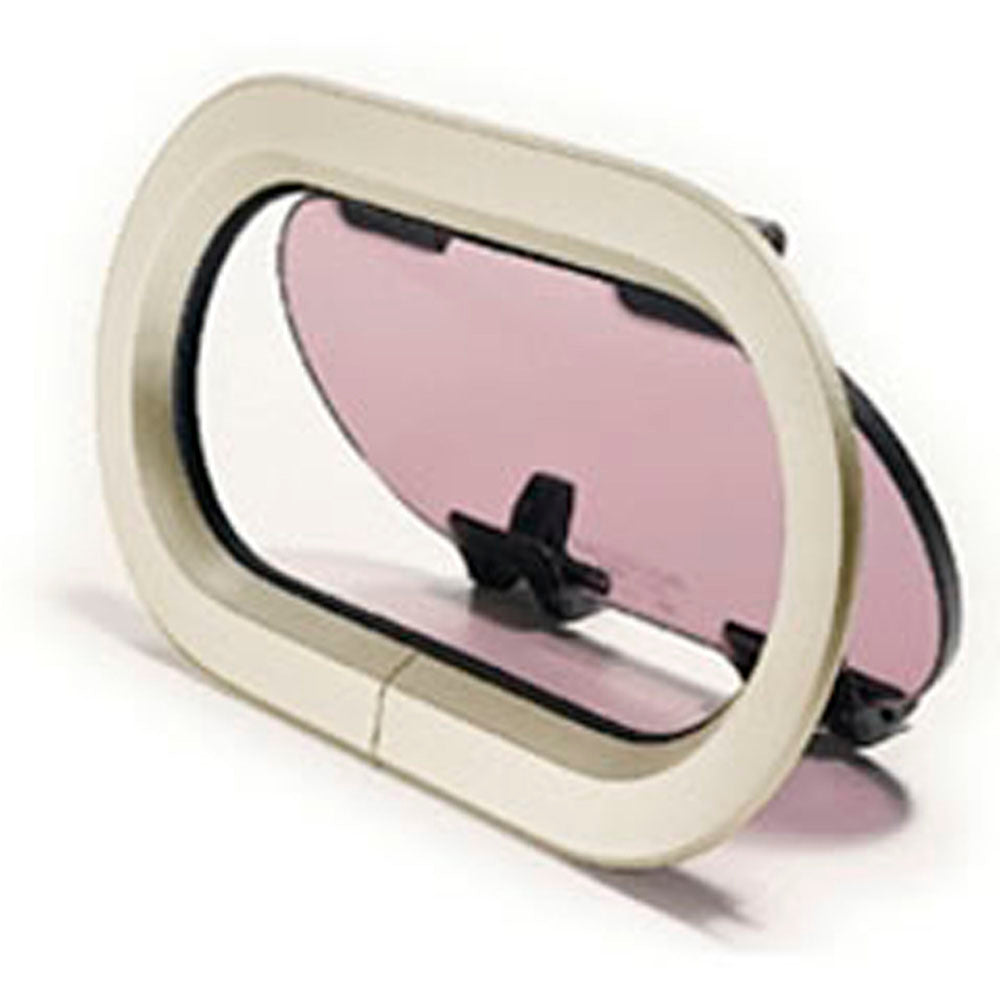

Lewmar Standard Opening Portlight - Size 1 Round End (7 1/2 x 14 7/16 in.) (Clear Acrylic / Silver, White Trim)

$282.00 USD $433.80

Description

A perfect match for any hatch in the Lewmar range, the Lewmar Standard Portlight Size is stylish, competitively priced and easy to both use and install. This is a trusted product that is fitted to thousands of sailboats throught the world.

Our Part # LEW393182200 | Lewmar Part # 393182200

Features

Features:

  • Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.
  • Can be installed with sealant or closed cell PVC tape.
  • White ABS Plastic Trim.
  • Supplied complete with flyscreen (except sizes 4L and 4R).
  • Full range of spare parts available.
  • All portlights are supplied with 12 off M5 x 25 screws for hull thickness 17-25 mm.
  • Opening angle at 21mm hull thickness is 165°.

Knowledge Base

Technical Information

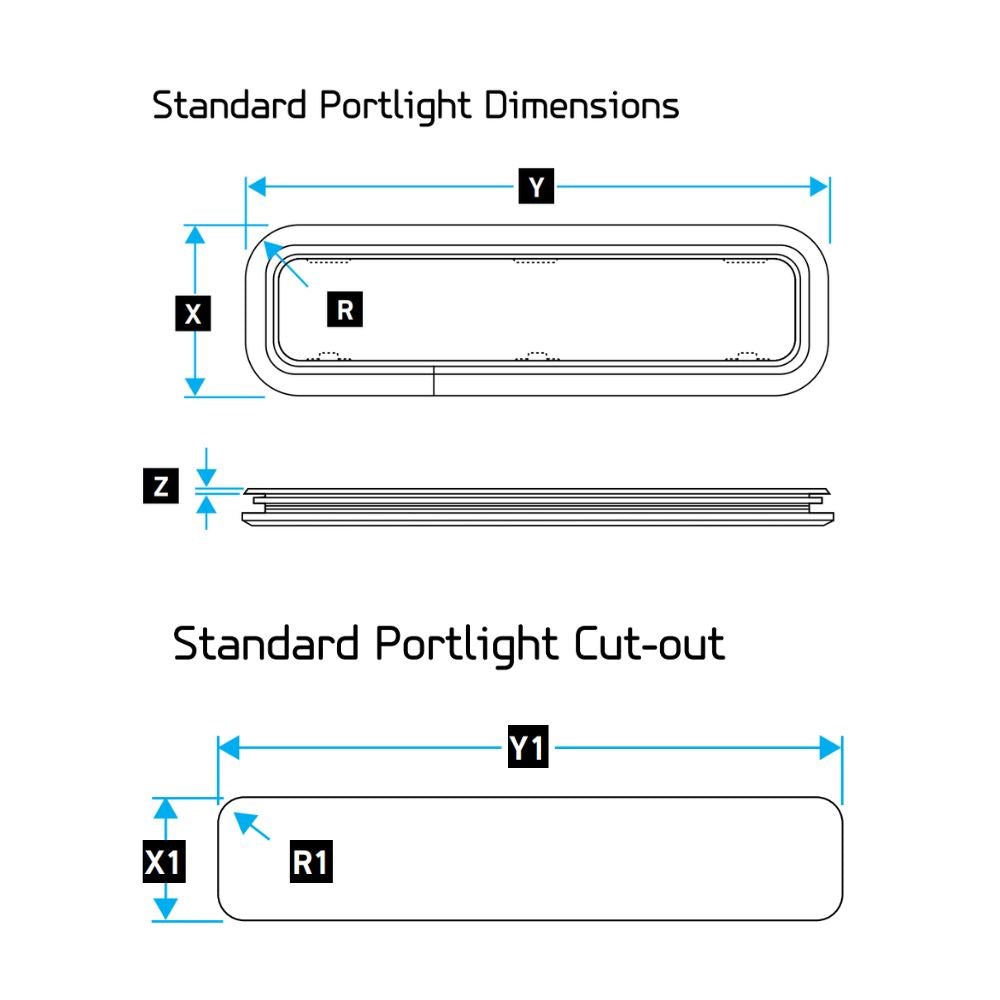

DescriptionImperialMetric
Width (X)7 1/2 in.191.00 mm.
Length (Y)14 7/16 in.367.00 mm.
Height (Z)5/32 in.4.00 mm.
Radii (R)2 7/16 in.62.00 mm.
Width (X1)6 3/4 in.171.00 mm.
Length (Y1)13 5/8 in.347.00 mm.
Radii (R1)2 1/16 in.52.00 mm.
Weight2.86 lb.1.30 kg.
Acrylic Window Thickness1/4 in.6.00 mm.
