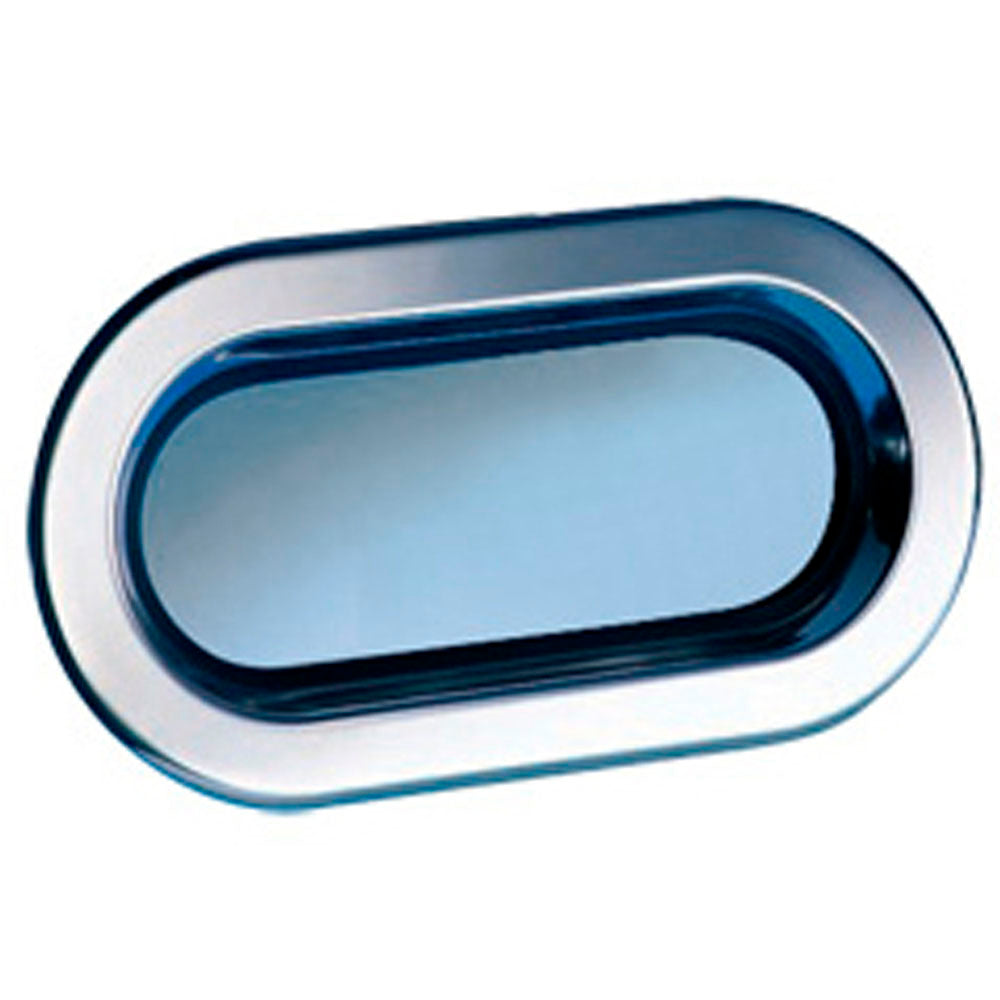

Lewmar Stainless Portlight Size 1-RE Fixed - Round End (White Acrylic / White Trim)
Lewmar Stainless Portlight Size 1-RE Fixed - Round End (White Acrylic / White Trim) is backordered and will ship as soon as it is back in stock.
Description
Description
The Lewmar Stainless Portlight Size 1-RE Fixed - Round End (White Acrylic / White Trim) #393170262 is your go-to solution for sleek and efficient boat ventilation. With its polished stainless outer frame, it doesn't just look good; it also performs exceptionally by keeping your views unobstructed. It’s the kind of thing that adds both style and functionality to your sailing experience.
Features & Benefits
- Highly polished stainless outer frame for a modern aesthetic
- Clear lens with unobstructed views due to innovative handle and hinge design
- Enhances both the look and ventilation of your boat
Constructed with durable white acrylic and white trim, this portlight is crafted for longevity and style. Perfectly designed for marine environments, it complements the aesthetics of any vessel while providing excellent ventilation. A great fit for those looking to combine functionality with a touch of elegance on their boats.
Features
Features
Features:
- ABS Plastic Trim.
- Can be installed with sealant or closed cell PVC tape.
- Trim with clean styling.
- Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.
- Full range of spare parts available.

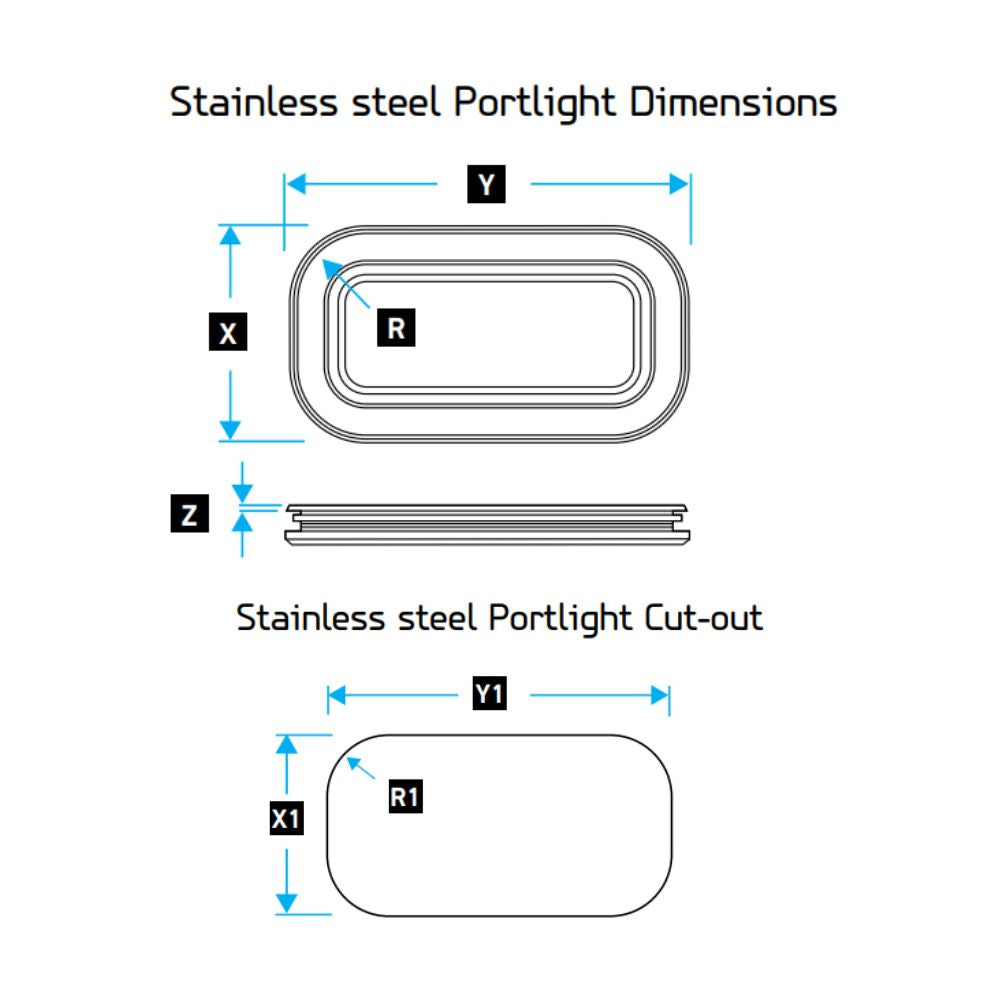

Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Length (X) | 7 1/2 in. | 191.00 mm. |
Width (Y) | 14 7/16 in. | 367.00 mm. |
Height (Z) | 5/32 in. | 4.00 mm. |
Radii (R) | 3 3/4 in. | 95.50 mm. |
Length (X1) | 6 3/4 in. | 171.00 mm. |
Width (Y1) | 13 5/8 in. | 347.00 mm. |
Radii (R1) | 3 3/8 in. | 85.50 mm. |
Portlight Weight | 3.80 lb. | 1.70 kg. |
Acrylic Window Thickness | 3/8 in. | 10.00 mm. |
