Lewmar  |  SKU: LEW393122200  |  Manuf. Code: 393122200

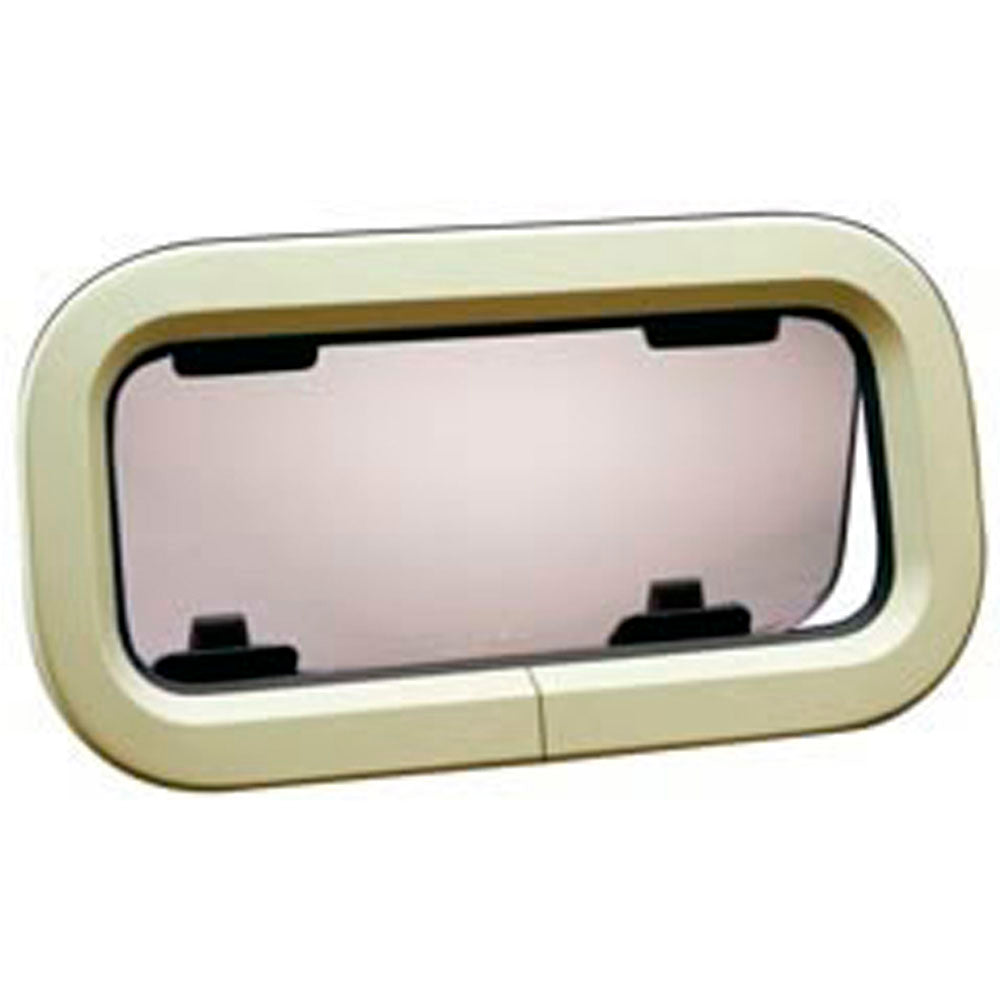

Lewmar Standard Opening Portlight - Size 1 (7 1/2 x 14 7/16 in.) (Clear Acrylic / Silver, White Trim)

$261.00 USD $401.50

Description

The Lewmar Standard Opening Portlight - Size 1 #393122200 is a versatile and stylish addition to your sailboat, perfect for enhancing both functionality and appearance. Designed for easy installation and use, it’s a popular choice among sailors worldwide. This lewmar portlight promises durability and reliability for your sailing adventures.

Features & Benefits

  • Clear acrylic lens for optimal visibility.
  • Silver frame with a white trim adds a sleek look.
  • Simple and quick installation process.
  • Compatible with various Lewmar hatches.
  • Provides excellent ventilation and light.

Crafted from high-quality materials, this portlight features a clear acrylic window set within a durable silver frame and white trim. Measuring 7 1/2 x 14 7/16 inches, it fits seamlessly with Lewmar's range of hatches, ensuring a cohesive look and reliable performance on sailboats. Engineered for safety and ease, it’s a trusted choice among boaters globally.

Features

Features:

  • Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.
  • Can be installed with sealant or closed cell PVC tape.
  • White ABS Plastic Trim.
  • Supplied complete with flyscreen (except sizes 4L and 4R).
  • Full range of spare parts available.
  • All portlights are supplied with 12 off M5 x 25 screws for hull thickness 17-25 mm.
  • Opening angle at 21mm hull thickness is 165°.

Knowledge Base

Technical Information

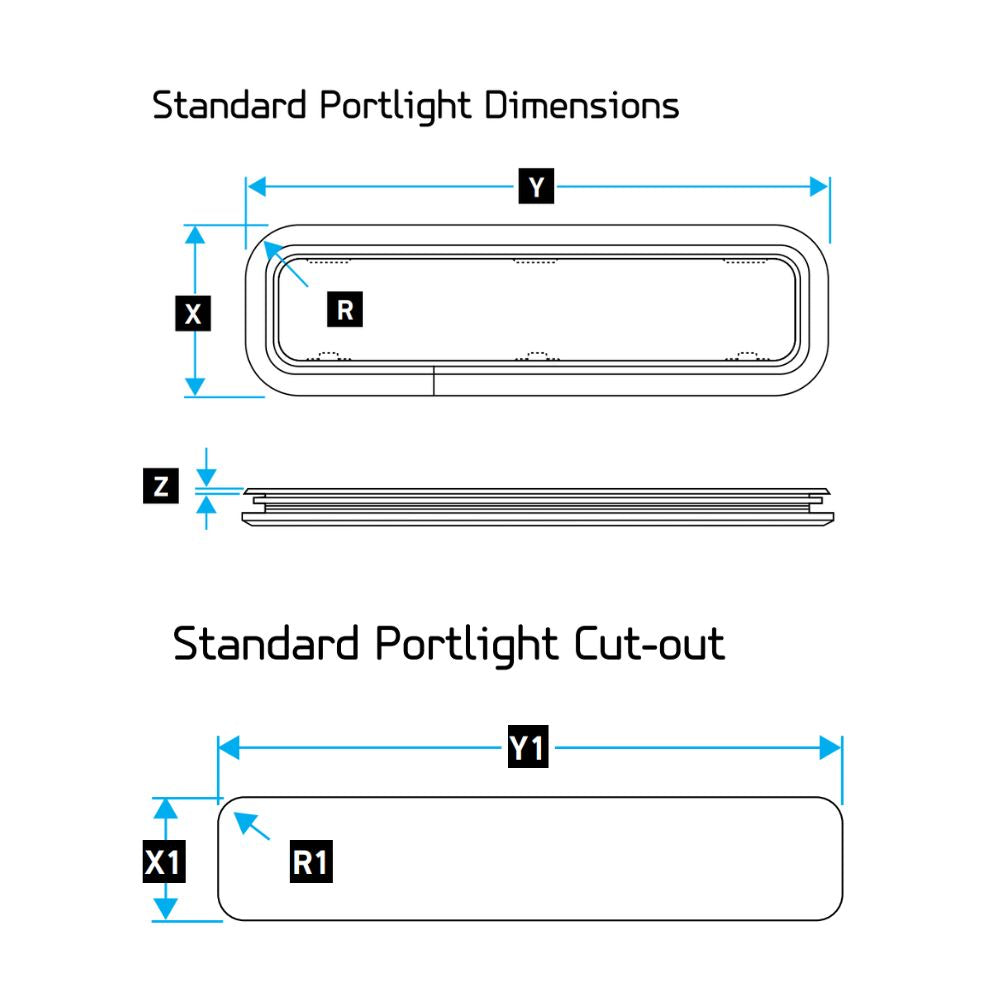

DescriptionImperialMetric
Width (X)7 1/2 in.191.00 mm.
Length (Y)14 7/16 in.367.00 mm.
Height (Z)5/32 in.4.00 mm.
Radii (R)2 7/16 in.62.00 mm.
Width (X1)6 3/4 in.171.00 mm.
Length (Y1)13 5/8 in.347.00 mm.
Radii (R1)2 1/16 in.52.00 mm.
Weight2.86 lb.1.30 kg.
