Lewmar  |  SKU: LEW393022500  |  Manuf. Code: 393022500

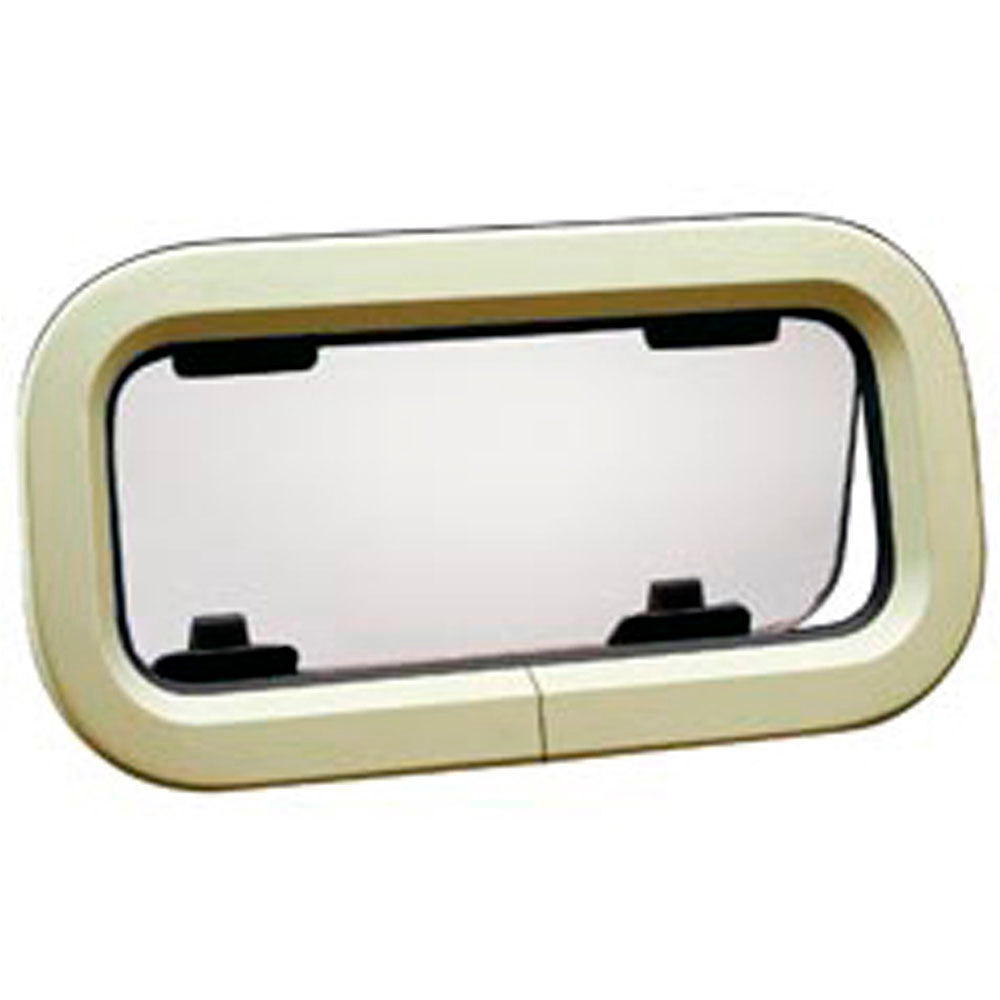

Lewmar Standard Opening Portlight - Size 0 (6 15/16 x 12 11/16 in.) (Clear Acrylic / Silver or Ivory Trim)

$249.95 USD $384.50

Description

A perfect match for any hatch in the Lewmar range, the Lewmar Standard Portlight Size is stylish, competitively priced and easy to both use and install. This is a trusted product that is fitted to thousands of sailboats throught the world.

Our Part # LEW393022500 | Lewmar Part # 393022500

Features

Features:

  • Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.
  • Can be installed with sealant or closed cell PVC tape.
  • White ABS Plastic Trim.
  • Supplied complete with flyscreen (except sizes 4L and 4R).
  • Full range of spare parts available.
  • All portlights are supplied with 12 off M5 x 25 screws for hull thickness 17-25 mm.
  • Opening angle at 21mm hull thickness is 165°.

Knowledge Base

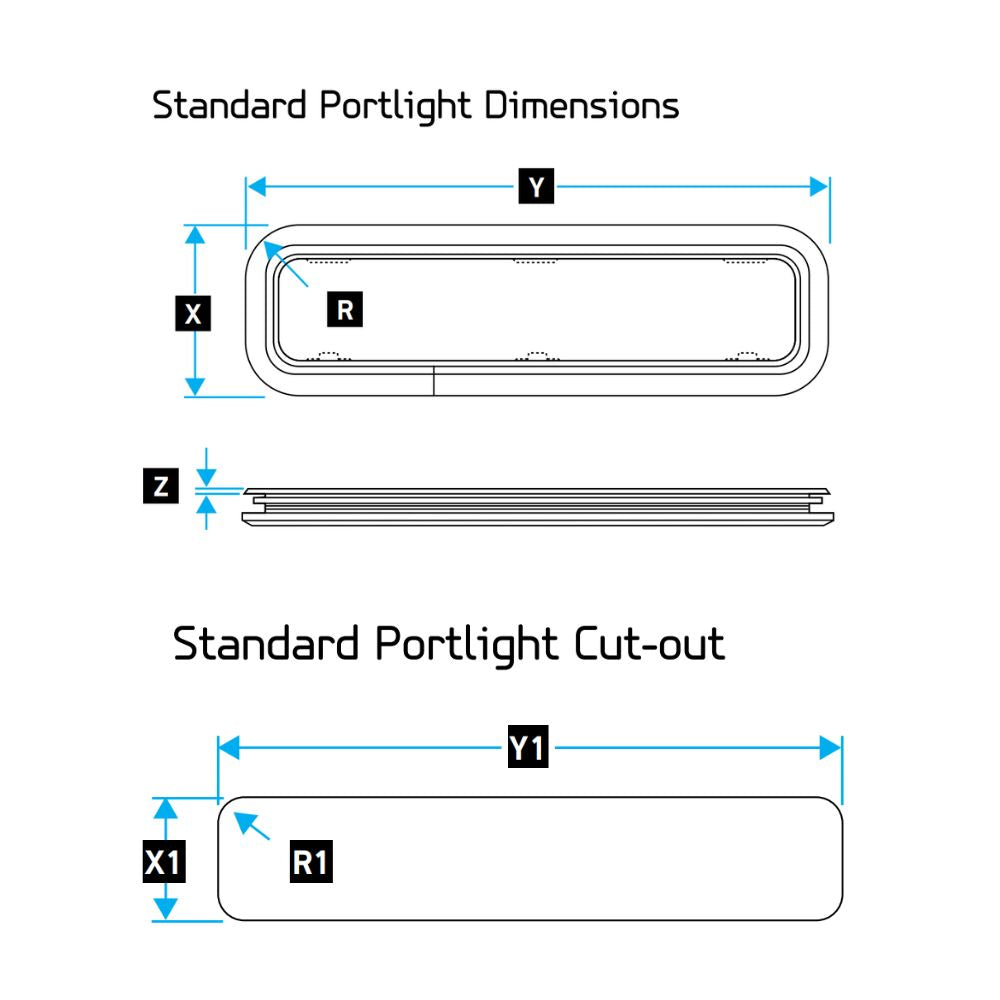

Technical Information


DescriptionImperialMetric
Size0
X (Length)7.00 in.176.00 mm.
Y (Width)12 5/7 in.323.00 mm.
Z (Height)1/6 in.4.00 mm.
R (Radii)2 4/9 in.62.00 mm.
X1 (Length)6 1/7 in.156.00 mm.
Y1 (Width)12.00 in.303.00 mm.
R1 (Radii)2.00 in.52.00 mm.
Portlight weight2.42 lb.1.10 kg.
Acrilic Window Thickness1/4 in.6.00 mm.
