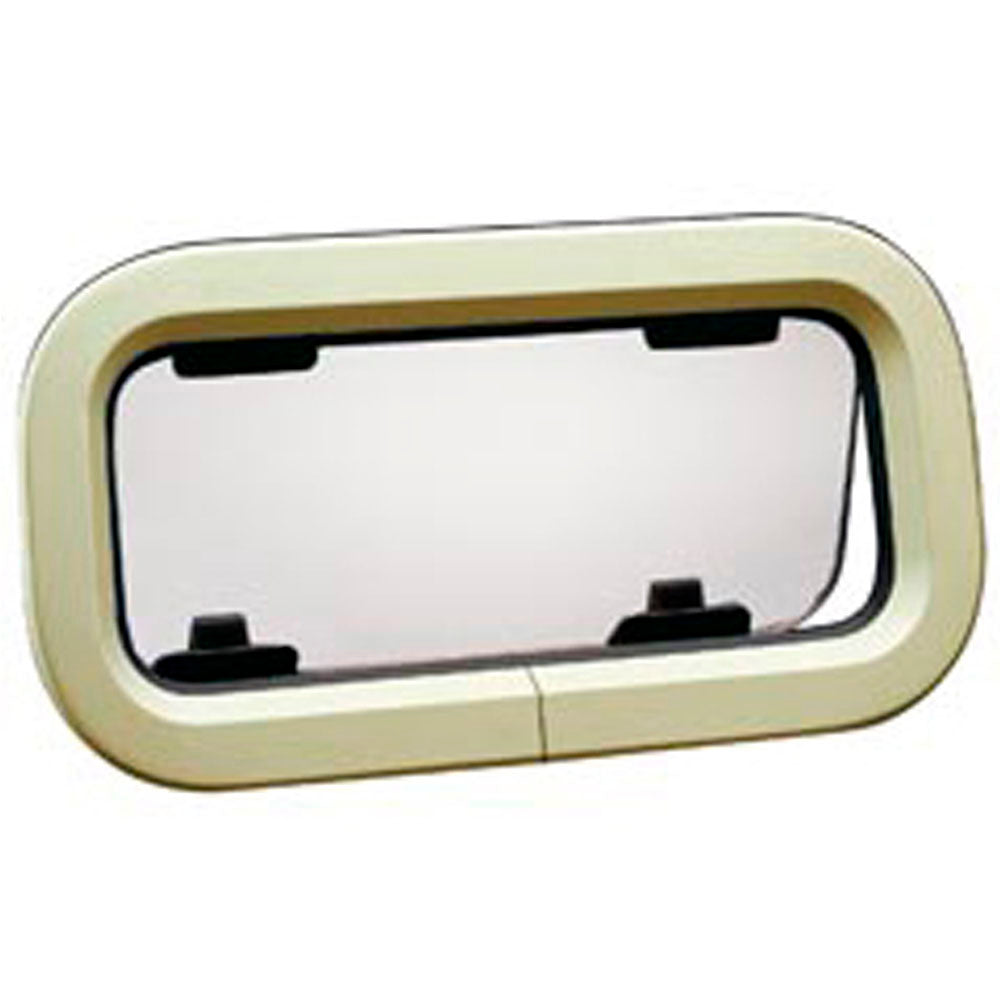

Lewmar Standard Opening Portlight - Size 0 (6 15/16 x 12 11/16 in.) (Smoke Acrylic / Silver, Ivory Trim)
Lewmar Standard Opening Portlight - Size 0 (6 15/16 x 12 11/16 in.) (Smoke Acrylic / Silver, Ivory Trim) is backordered and will ship as soon as it is back in stock.
Description
Description
The Lewmar Standard Opening Portlight - Size 0 #393020500 is a great fit for any sailing enthusiast looking for style and ease of use. This lewmar portlight not only boasts a sleek design but is also simple to install, making it a favorite among boat owners. Its smoke acrylic with silver and ivory trim adds a touch of elegance to any vessel.
Features & Benefits
- Stylish design complements any Lewmar hatch.
- Easy installation process.
- High-quality smoke acrylic with durable silver and ivory trim.
This sturdy portlight measures 6 15/16 x 12 11/16 inches, ensuring a perfect fit for various boat types. Made from smoke acrylic, it offers excellent durability and a sleek appearance. Compatible with other Lewmar marine products, it's an ideal choice for those seeking reliable and stylish sailing gear.
Features
Features
Features:
- ABS Plastic Trim.
- Can be installed with sealant or closed cell PVC tape.
- Trim with clean styling.
- Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.
- Full range of spare parts available.
Technical Information
Technical Information

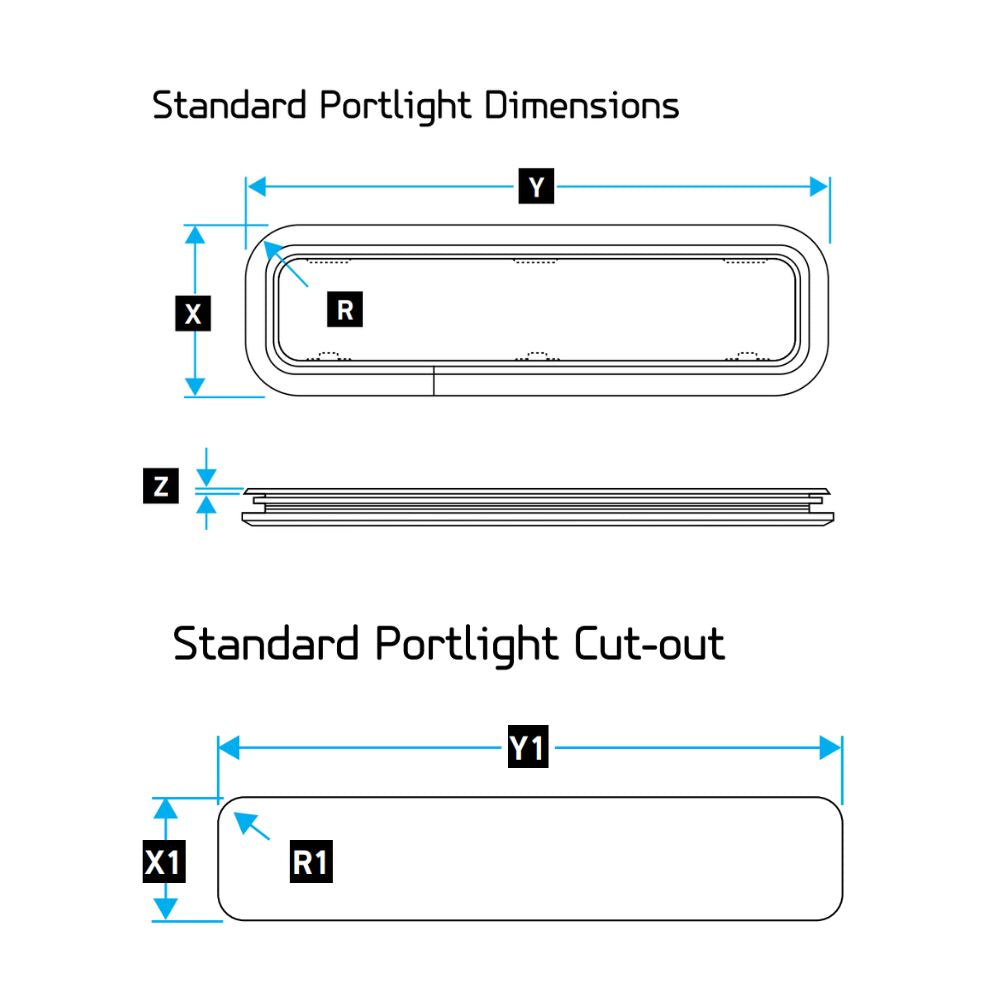

Description | Imperial | Metric |
---|---|---|
Size | 0 | |
X (Length) | 7.00 in. | 176.00 mm. |
Y (Width) | 12 5/7 in. | 323.00 mm. |
Z (Height) | 1/6 in. | 4.00 mm. |
R (Radii) | 2 4/9 in. | 62.00 mm. |
X1 (Length) | 6 1/7 in. | 156.00 mm. |
Y1 (Width) | 12.00 in. | 303.00 mm. |
R1 (Radii) | 2.00 in. | 52.00 mm. |
Portlight weight | 2.42 lb. | 1.10 kg. |
Acrilic Window Thickness | 1/4 in. | 6.00 mm. |
