Lewmar Stainless Portlight Size 0 Opening (White Acrylic / White Trim)
Lewmar Stainless Portlight Size 0 Opening (White Acrylic / White Trim) is backordered and will ship as soon as it is back in stock.
Description
Description
With its highly polished stainless outer frame, the Stainless Portlight will really shine on your boat. The handles and hinge system were designed to leave the lens clear of obstructions, giving it an uncluttered view and a clean, modern look.
Our Part # LEW393020262 | Lewmar Part # 393020262
Features
Features
Features:
- ABS Plastic Trim.
- Can be installed with sealant or closed cell PVC tape.
- Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.
- Trim with clean styling.
- All portlights are supplied with M5 x 20 screws for hull thickness 12-17 mm.
- Portlights should be fitted to a flat surface ± 1 mm.
- Complete with Flyscreen.
Technical Information
Technical Information

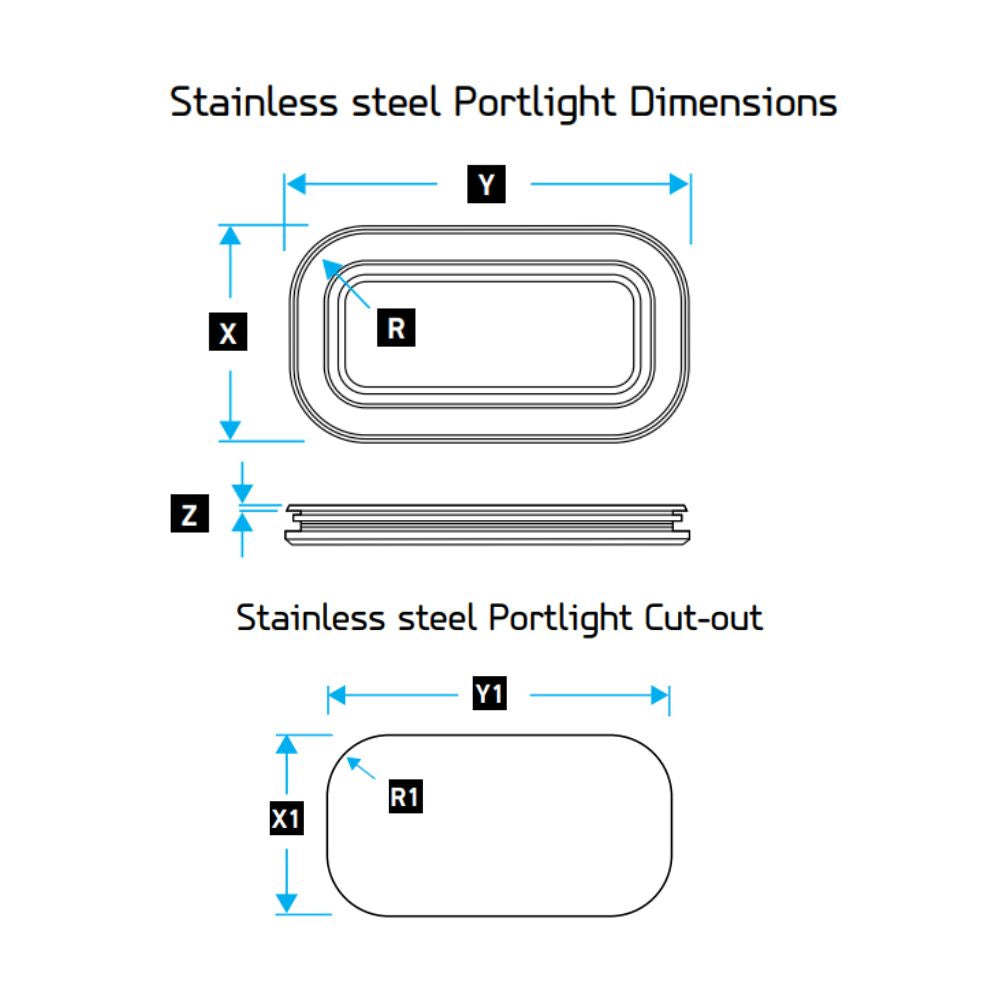

Description | Imperial | Metric |
---|---|---|
Length (X) | 6 15/16 in. | 176.00 mm. |
Width (Y) | 12 11/16 in. | 323.00 mm. |
Height (Z) | 5/32 in. | 4.00 mm. |
Radii (R) | 2 7/16 in. | 62.00 mm. |
Length (X1) | 6 1/7 in. | 156.00 mm. |
Width (Y1) | 12.00 in. | 303.00 mm. |
Radii (R1) | 2 1/16 in. | 52.00 mm. |
Portlight Weight | 3.30 lb. | 1.50 kg. |
Acrylic Window Thickness | 1/2 in. | 8.00 mm. |
