Lewmar Stainless Portlight Size 0 Fixed (White Acrylic / White Trim)
Lewmar Stainless Portlight Size 0 Fixed (White Acrylic / White Trim) is backordered and will ship as soon as it is back in stock.
Description
Description
The Lewmar Stainless Portlight Size 0 Fixed #393010262 is a perfect addition for your boat, designed with a sleek, polished stainless outer frame that complements its modern aesthetic. Its innovative handle and hinge system ensure a clear, unobstructed view, making it both functional and stylish. Crafted to enhance your sailing experience, this portlight combines elegance with practicality.
Features & Benefits
- Polished stainless steel outer frame for a modern look.
- Handle and hinge system for an unobstructed view.
- Durable construction designed for marine environments.
Constructed with high-quality stainless steel, this portlight features a white acrylic lens and white trim, measuring perfectly for your boat's needs. Its compatibility with various marine applications makes it an ideal choice for enhancing both the look and functionality of your vessel.
Features
Features
Features:
- ABS Plastic Trim.
- Can be installed with sealant or closed cell PVC tape.
- Trim with clean styling.
- Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.
- Full range of spare parts available.
Technical Information
Technical Information

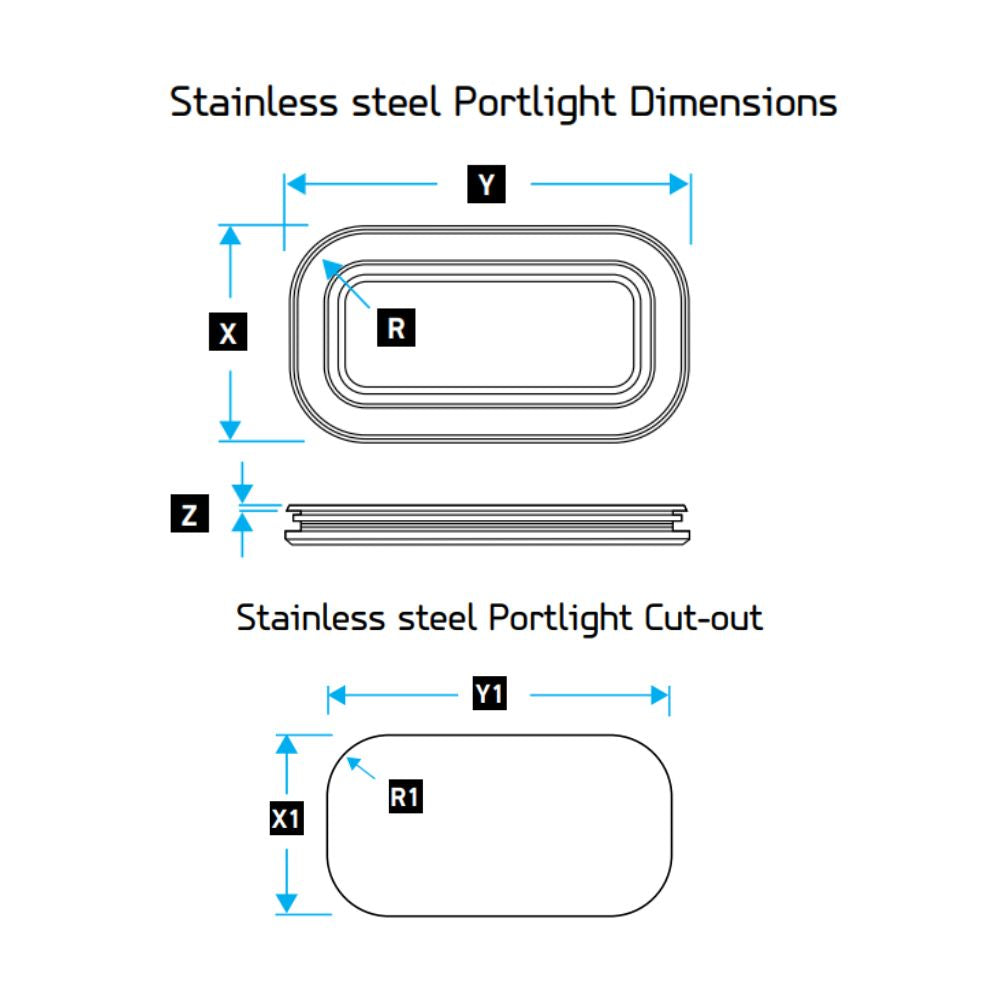

Description | Imperial | Metric |
---|---|---|
Length (X) | 6 15/16 in. | 176.00 mm. |
Width (Y) | 12 11/16 in. | 323.00 mm. |
Height (Z) | 5/32 in. | 4.00 mm. |
Radii (R) | 2 7/16 in. | 62.00 mm. |
Length (X1) | 6 1/7 in. | 156.00 mm. |
Width (Y1) | 12.00 in. | 303.00 mm. |
Radii (R1) | 2 1/16 in. | 52.00 mm. |
Portlight Weight | 3.30 lb. | 1.50 kg. |
Acrylic Window Thickness | 3/8 in. | 10.00 mm. |
