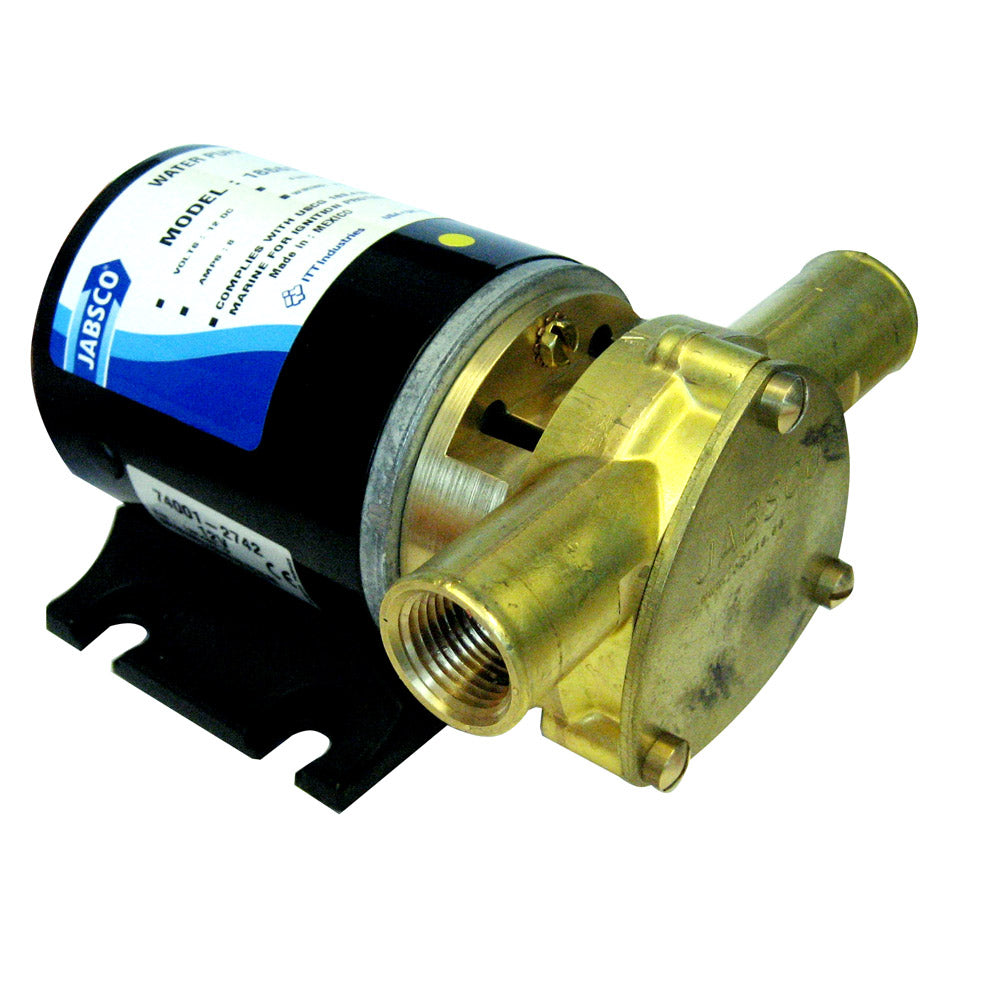

Jabsco Water Puppy Pump - 6.3GPM - 12V
$227.95 USD
$268.18
Unit price
/
Unavailable
Jabsco Water Puppy Pump - 6.3GPM - 12V is backordered and will ship as soon as it is back in stock.
Description
Description
The Jabsco Water Puppy Bronze Pump is designed for general pumping needs. Some typical uses include bilge pumping, livewell circulation, and as a washdown pump. This runs on 12V DC and has a maximum flow rate of 6.3 GPM.
Our Part # JAB-18660-0121 | Jabsco Part # 18660-0121
Features
Features
Features:
- Triple sealed motor to prevent both internal and external motor corrosion.
- Small bilge debris present no problem to these bronze bodied, flexible impeller pumps.
- Simple design means fewer wearing parts.
- ISO 8846 MARINE (Ignition protection)
- ISO 8849 MARINE (Bilge pump standard)
- Flow rate: 23.8 Litres/min (6.3 USgallons/min) Self-priming from dry up to 1.2m (4ft)
- Body: Bronze
- Impeller: Neoprene
- Seal: Lip type
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Port Size | 1/2 in. internal pipe threads and 1.00 in. external hose barb | 12.00 mm. internal pipe threads and 25.00 mm. external hose barb |
Flow Rate | 6.30 GPM. | 23.84 LPM. |
Height | 3 5/8 in. | 92.00 mm. |
Width | 4 3/4 in. | 120.00 mm. |
Length | 6 3/8 in. | 162.00 mm. |
Nominal Voltage | 12V DC | |
Max. Current Draw | 8 Amps. | |
Recommended Fuse | 15 Amp. |
