Harken Ocean Jib Furling System - MKIV Unit 2 - Max Stay: 67.3 ft (20.5 m)
Harken Ocean Jib Furling System - MKIV Unit 2 - Max Stay: 67.3 ft (20.5 m) is backordered and will ship as soon as it is back in stock.
Description
Description
The Harken Ocean Jib Furling System - MKIV Unit 2 #7512.1 is designed for cruisers who crave smooth and reliable headsail control. Built for durability and ease, it lets you handle your sails right from the cockpit, keeping things simple and efficient on the water. It's all about making your sailing experience more enjoyable without complicating things.
Features & Benefits
- Engineered for strength and longevity
- Free-rolling furlers for easy headsail control
- Hardcoat-anodized aluminum for durability
- UV-stabilized materials
- Multiple rows of Torlon® ball bearings for low friction
- No lubrication required for bearings
- Single groove foil design
Crafted from robust hardcoat-anodized aluminum, this system is UV-stabilized to withstand harsh marine conditions. With a maximum stay of 67.3 feet (20.5 meters), it's perfect for a range of cruising vessels. The system includes multiple rows of Torlon® ball bearings that reduce friction, making it easier to pull the furling line without needing physical exertion. Maintenance is a breeze as the bearings require no lubrication, and the system features a single groove foil. Please note, the Toggle and Lead Block Kit are sold separately.
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Wire à (1 x 19 SS) | 3/8 in. | 10.00 mm. |
Rod | 3/8 in. | 9.53 mm. |
Clevis pin | 3/4 in. | 19.10 mm. |
Standard headstay length | 60.40 ft. | 18.40 m. |
Maximum headstay length | 67.30 ft. | 20.50 m. |

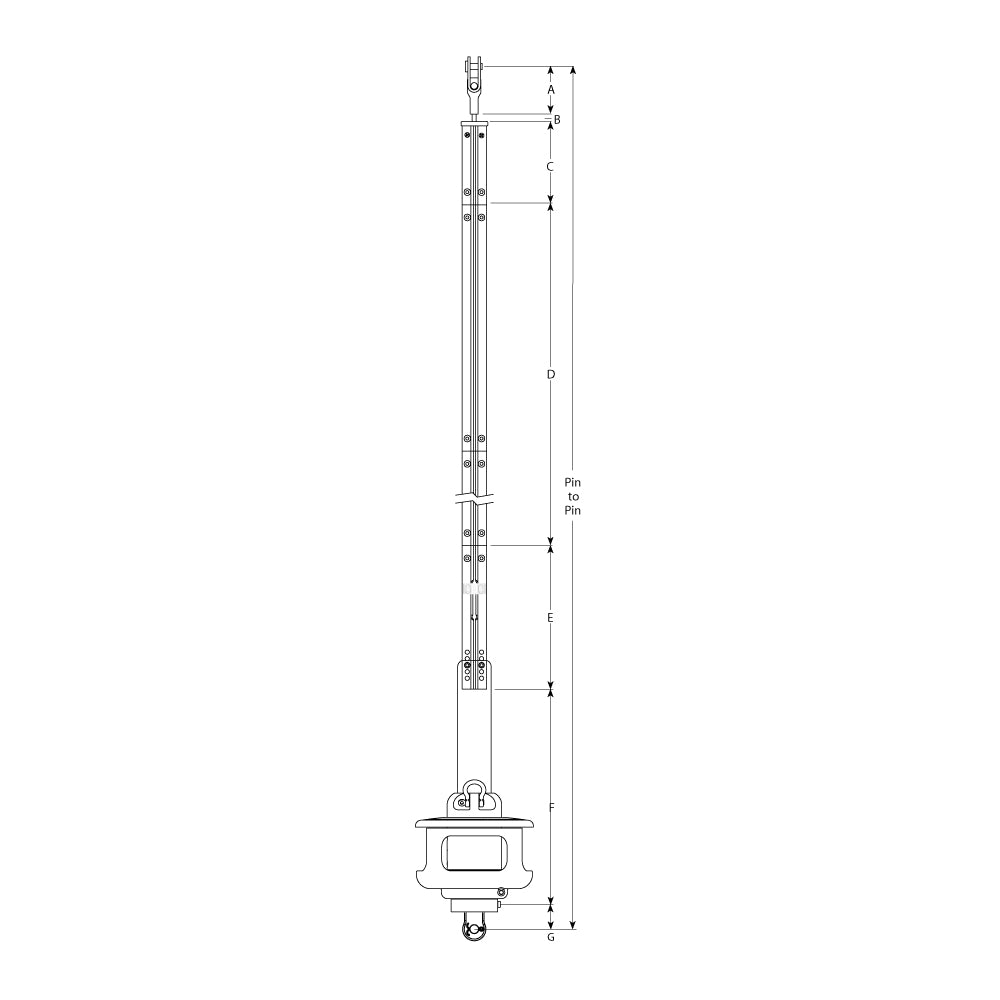

A | 5 5/8 in. | 143.00 mm. |
B | 9 1/8 in. | 231.00 mm. |
C | 2 9/16 in. | 66.00 mm. |
D | 8 3/16 in. | 208.00 mm. |
E | 3 13/16 in. | 97.00 mm. |
F (Max) | 51 3/4 in. | 1314.00 mm. |
F (Min) | 46 3/4 in. | 1187.00 mm. |
G (Max) | 15 1/8 in. | 384.00 mm. |
G (Min) | 12 1/16 in. | 306.00 mm. |
H (Max) | 13 15/16 in. | 348.00 mm. |
H (Min) | 10 7/8 in. | 276.00 mm. |
I (Max) | 6 7/16 in. | 164.00 mm. |
I (Min) | 3 3/8 in. | 85.00 mm. |
