Goiot  |  SKU: GOI-121131  |  Manuf. Code: 121131

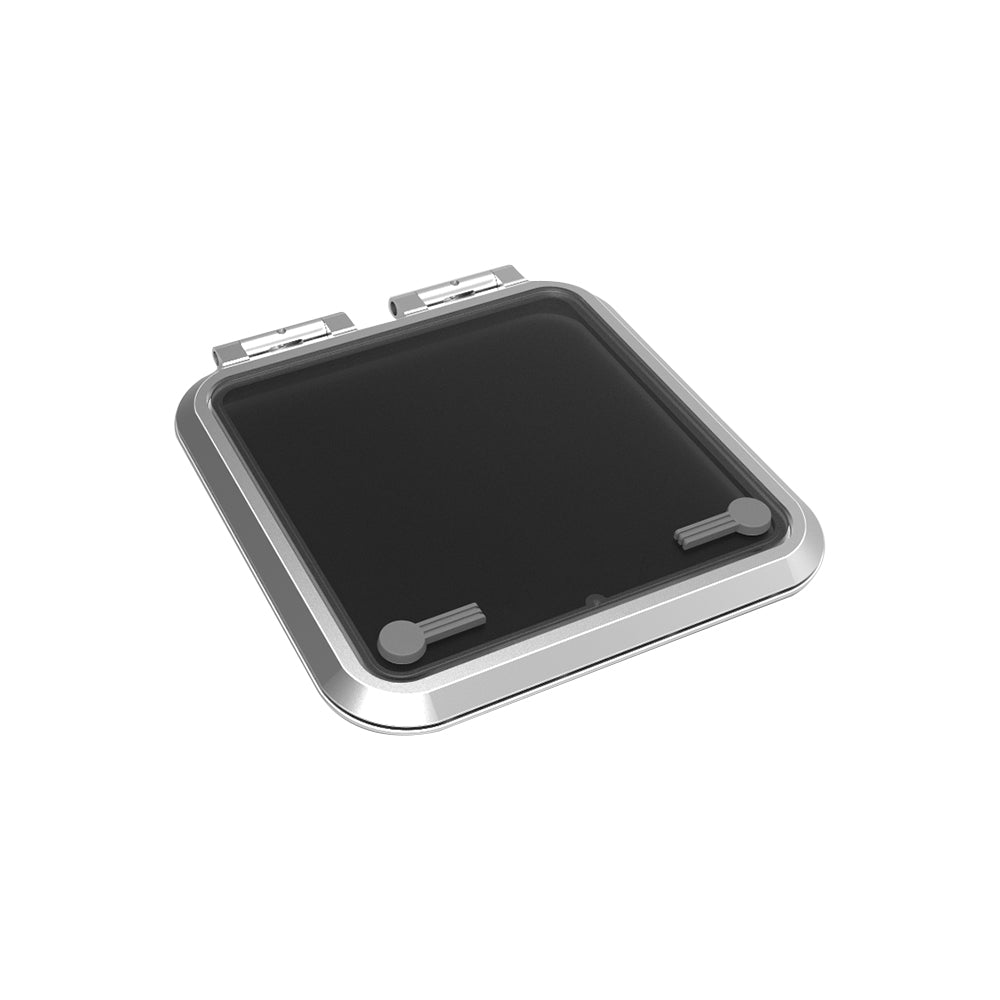

Goiot Cristal Hatch - 17 5/16 x 17 5/16 in. (440 x 440 mm) (Grey Acrylic / Aluminum Frame) - Size 44.44

$736.95 USD $818.83

Description

With an aluminium profile and a one-piece aluminium casting lid, the famous Cristal range combines elegant lines and extreme sturdiness.

Available in a wide variety of sizes, it includes small hatches particularly suitable for ventilation purpose, and larger models that make excellent storage lockers.

The hinges are equipped with friction, coupled with a compensating spring on large sizes (49.49, 61.61 et 79.79) that allows the lid to be held open in any position up to 90 ° (maximum opening 180 °).

Our Part # GOI-121131 | Goiot Part # 121131

Features

Features:

  • Plastic handles incorporate a ventilation position, obtained by turning the small handle in the opposite direction from the opening direction
  • The 44C size and the 44.31 to 79.79 sizes are equipped with outside handles ; plastic caps are also supplied on these models, to prevent breaking in from outside.
  • Supplied as standard with a gray acrylic
  • Mounting on a flat surface with a tolerance of ± 0.5 mm
  • Milling diameter of the frame 5.3 mm (for M5 countersunk screws)
  • Approved in areas IIa, III and IV
  • Not approved for a use as escape hatches
  • Available options: ventilator, lock, aluminium handles and aluminium sheet metal panel

Knowledge Base

Technical Information


DescriptionImperialMetric
Weight14.33 lb.6.50 kg.
Cut-out dimensions18 1/4 x 18 1/4 in.464.00 x 464.00 mm.
Overall dimensions21.00 x 20.00 in.532.00 x 509.00 mm.
Cut-out radius2.00 in.53.00 mm.
Acrylic thickness1/3 in.8.00 mm.
Lid height1 1/9 in.28.00 mm.
Frame flange1/2 in.12.00 mm.
