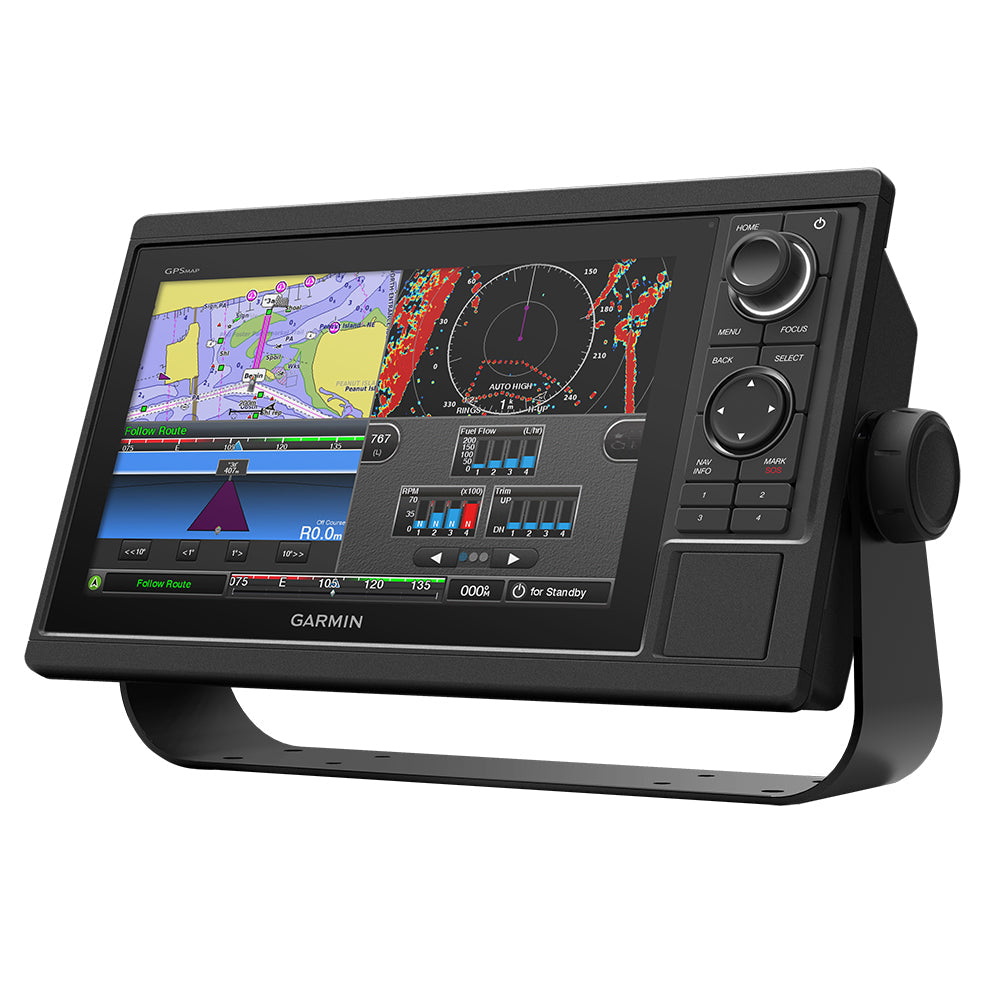

Garmin GPSMAP 1022 10" Keyed Networking Chartplotter (No Sonar)

10-inch Touchscreen Chartplotter

• 10-inch high-resolution intuitive touchscreen controls
• NMEA 2000® and NMEA 0183 support for network connectivity, including autopilots, digital switching, weather, FUSION-Link, VHF, AIS and more
• Garmin Marine Network support for sharing sonar, including Panoptix™ sonar, maps, user data, radar and IP cameras among multiple units
• Preloaded U.S. LakeV¼ HD maps and BlueChart® g2 charts

GPSMAP 1022 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Complete Network Sharing

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.

The Ultimate Connected Boating App

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain™ app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you'll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Heading and Position Refreshed 10 Times per Second

Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

Preloaded with Exceptional Garmin Cartography

You get both LakeV¼ HD inland waters mapping and BlueChart g2 coastal charts covering the coastal U.S. (East Coast, West Coast, Gulf of Mexico, U.S. and the Canadian side of the Great Lakes).

LakeV¼ HD provides highly detailed freshwater maps that include 17,000+ U.S. lakes, rivers and reservoirs. Included in those are more than 13,000 HD lakes with 1-foot contours shoreline to shoreline. Upgrade to LakeV¼ HD Ultra with Max Def Lakes.

BlueChart g2 provides basic coastal charts, tidal and current stations, depth contours, IALA nav symbols and includes fishing charts.

Upgrade to Our Best Maps on the Water

Two SD™ card slots provide expandable memory for accessory map purchases, such as LakeV¼ HD, LakeV¼ HD Ultra, BlueChart® g2 HD or BlueChart® g2 Vision® HD, which adds Garmin patented Auto Guidance and other great features.

Quickdraw Contours to Create Your Own HD Maps

Instantly create personalized HD fishing maps on-screen with 1-foot contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

GPX Waypoints Transfer

If you have waypoints, tracks or frequently used routes stored on another manufacturer's GPS product — or on a Garmin handheld device — it's easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

Our Part # GAR-010-01740-00 | Garmin Part # 010-01740-00

In The Box:

• GPSMAP 1022 chartplotter
• Power cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 m)
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation

Connections:

• Garmin Marine Network™ Ports: 2
• NMEA 2000® Port: 1
• NMEA 0183 Input Ports: 1 (Differential)
• NMEA 0183 Output Ports: 1 (Differential)
• Video Input Ports: 1 BNC
• Video Output Ports: No
• Wireless Connectivity: Yes
