Calypso  |  SKU: CALCMI1016a  |  Manuf. Code: CMI1016a

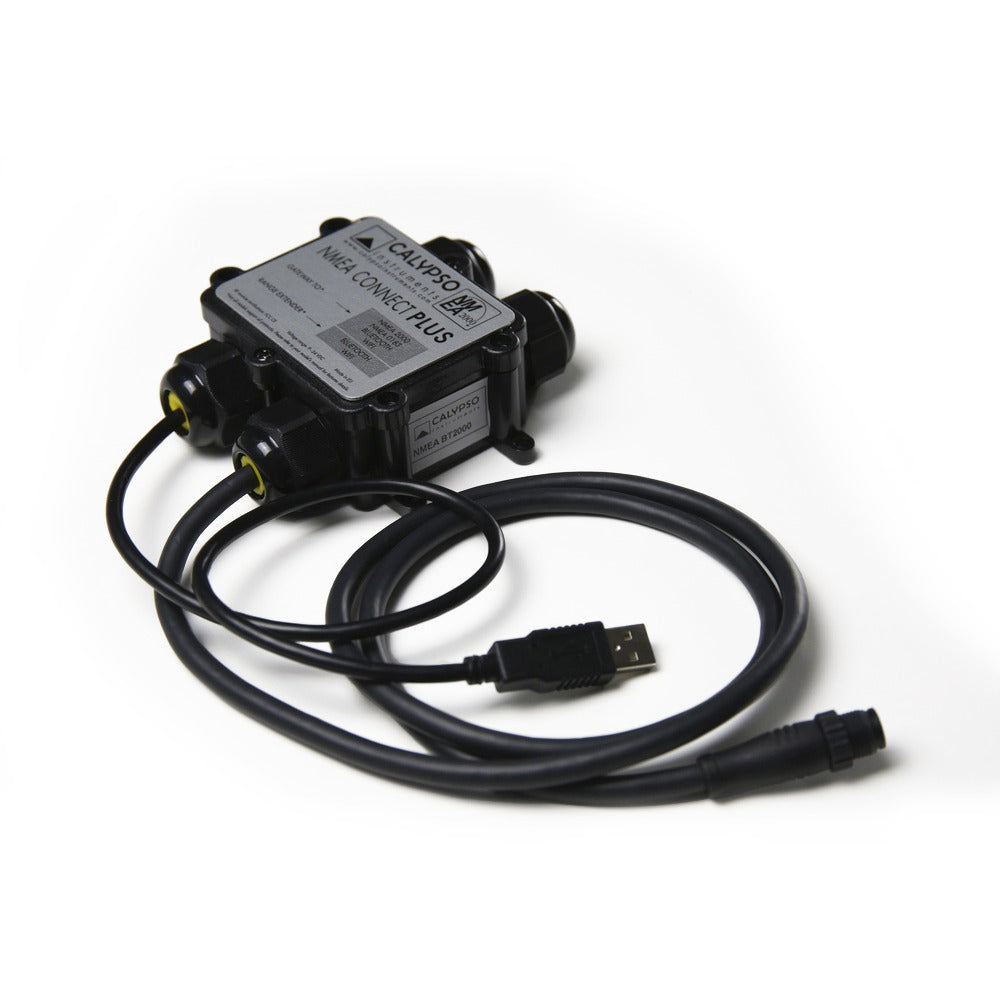

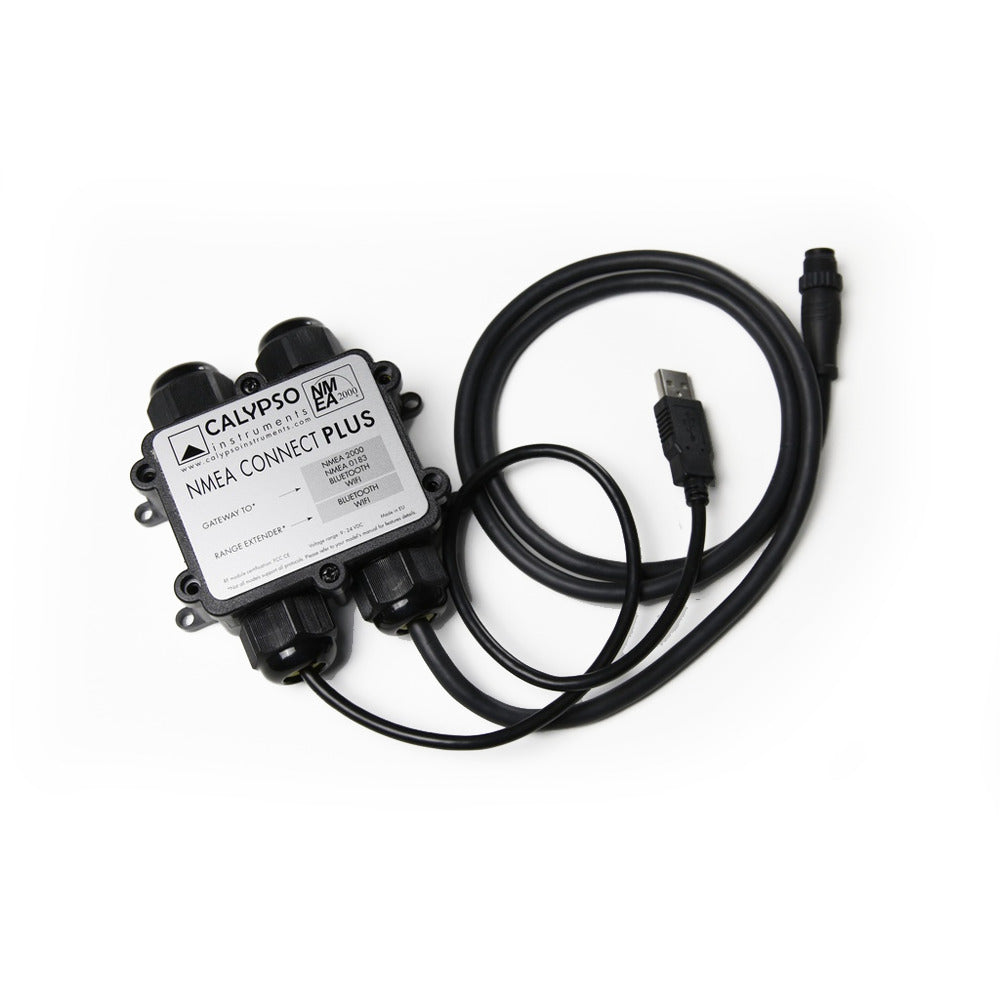

Calypso Instruments NMEA Gateway - NMEA Connect Plus (BT0183)

$250.00 USD

Description

The Calypso Instruments NMEA Gateway - NMEA Connect Plus (BT0183) #CMI1016a is your go-to solution for seamlessly integrating wind data into your NMEA 0183 network. It allows effortless connectivity via WiFi and Bluetooth, making it simple to use multiple apps and software for navigation. Experience the convenience of sharing wind data with others thanks to its capability to simultaneously connect two Bluetooth devices.

Features & Benefits

  • Connects Bluetooth ULTRASONIC PORTABLE wind meter data to NMEA 0183 network
  • Simultaneous connection of two Bluetooth devices
  • Relays data via WiFi and Bluetooth for versatile connectivity

Specifically designed for sailing enthusiasts, this device bridges your Bluetooth ULTRASONIC PORTABLE wind meter with the NMEA 0183 network, ensuring reliable data transmission. With its compact design, it fits effortlessly into your existing setup, enhancing your sailing gear's functionality. Ideal for those looking to optimize wind data access on various platforms.

Features


Knowledge Base

Click on the following technical articles to find relevant information about Calypso Sailing Instruments below:

Technical Information


DescriptionImperialMetric
MaterialPolicarbonate 94V-2Policarbonate 94V-2
Width4 3/16 in.107.00 mm.
Lenght 4 1/2 in.115.00 mm.
Height1 3/8 in.35.00 mm.
Weight3.53 oz.100.00 g.
Supply Voltage9.00 V-24.00 V9.00 V-24.00 V
FirmwareUpgradable via USBUpgradable via USB
ConnectionsCAN-BUS port (NMEA 2000), 2xRS-485 port (NMEA 0183), USB port ( for power and firmware upgrade), WifiCAN-BUS port (NMEA 2000), 2xRS-485 port (NMEA 0183), USB port ( for power and firmware upgrade), Wifi
ProtocolsNMEA0183 (RS485), NMEA2000 (CANBUS)NMEA0183 (RS485), NMEA2000 (CANBUS)
