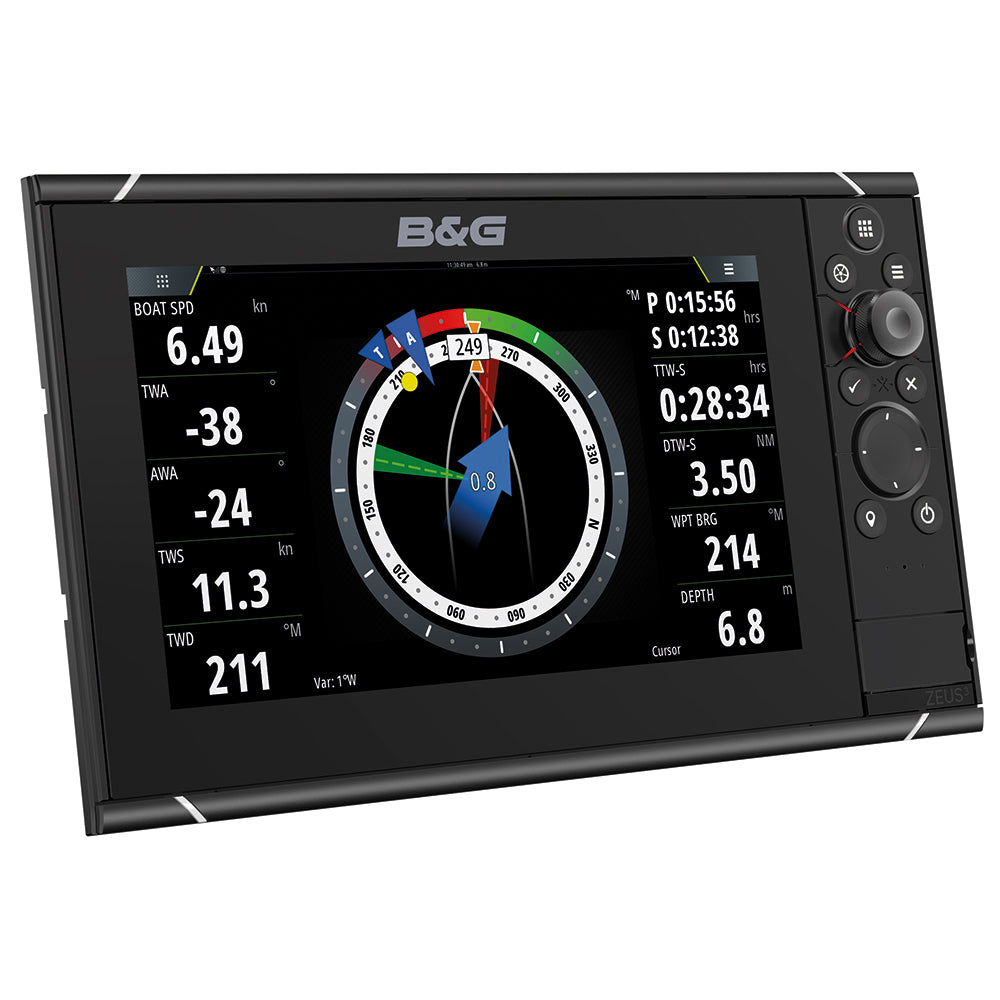

B&G Zeus 3S 16 (16" Multi-Function Display, GPS, Radar)
B&G Zeus 3S 16 (16" Multi-Function Display, GPS, Radar) is backordered and will ship as soon as it is back in stock.
Description
Description
Designed just for sailing, the Zeus 3S chartplotters offer super-fast response times, delivering the information you need, when you need it. Easy-to-use, the Zeus 3S comes with B & G’s unique sailing features built-in; making it simple to navigate, plot routes, add waypoints and view key sailing or racing data, at the touch of a button or screen.
The Zeus 3S 16” is the ultimate super-fast sailing chartplotter and navigation system for blue water cruisers and racers. This ultra-bright, wide-angle display combines an all-weather 16-inch touchscreen with a rotary dial and keypad for ultimate control in all conditions. Easily leverage dedicated, race-proven sailing features such as SailSteer, Laylines, and RacePanel. Connect with online services and mobile devices using built-in Wi-Fi, and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.
Our Part # BNG-000-15410-001 | Mfr. Part # 000-15410-001
Features
Features
- Zeus 3S 16: The fastest and most responsive sailing chartplotter and navigation display yet.
- SolarMAX HD IPS Screen: Best-in-class visibility from all angles, with and without polarized glasses.
- Full suite of sailing tools: Includes SailSteer, Start Line, RacePanel, LayLines, SailingTime, and PredictWind.
- Performance network compatibility: Connects to B&G’s performance modules like H5000, HALO Radar, Autopilot, ForwardScan, NMEA 2000, and 0183.
- Built-in Wi-Fi: Connects with smartphones, tablets, and internet hotspots.
- Touchscreen and keypad controls: Provides seamless operation in any condition.
Technical Information
Technical Information
Description | Specs |
---|---|
Backlight Color | White |
Display Resolution | 1920 x 1080 |
Screen Brightness | 1200 nits |
Viewing Angles | 80° top/bottom, 80° left/right |
Bluetooth | Internal |
NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
PC Connectivity | No |
SD Card Storage | 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS |
Video | 2 x composite (RCA connectors)video in.puts. Optional video/ data cable required (P/N 000-00129-001). HDMI output |
Steering Modes | Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail) |
Recommended Fuse Rating | 7.5A |
Humidity | IEC 60945 Damp heat 66°C (150°F) at 95% relative (48 hr) |
Operating Temperature Range | -15°C to +55°C (5° F to 131° F) |
Waterproofrating | IPX6 and 7 |
