Antal  |  SKU: ANT994085  |  Manuf. Code: 994.085

Antal Reef Blocks - Sheave: 3.15 in (80 mm) & Max Line: 25/32 in (20 mm)

$564.00 USD $626.67
Special Order Item: 8 - 10 weeks.

Description

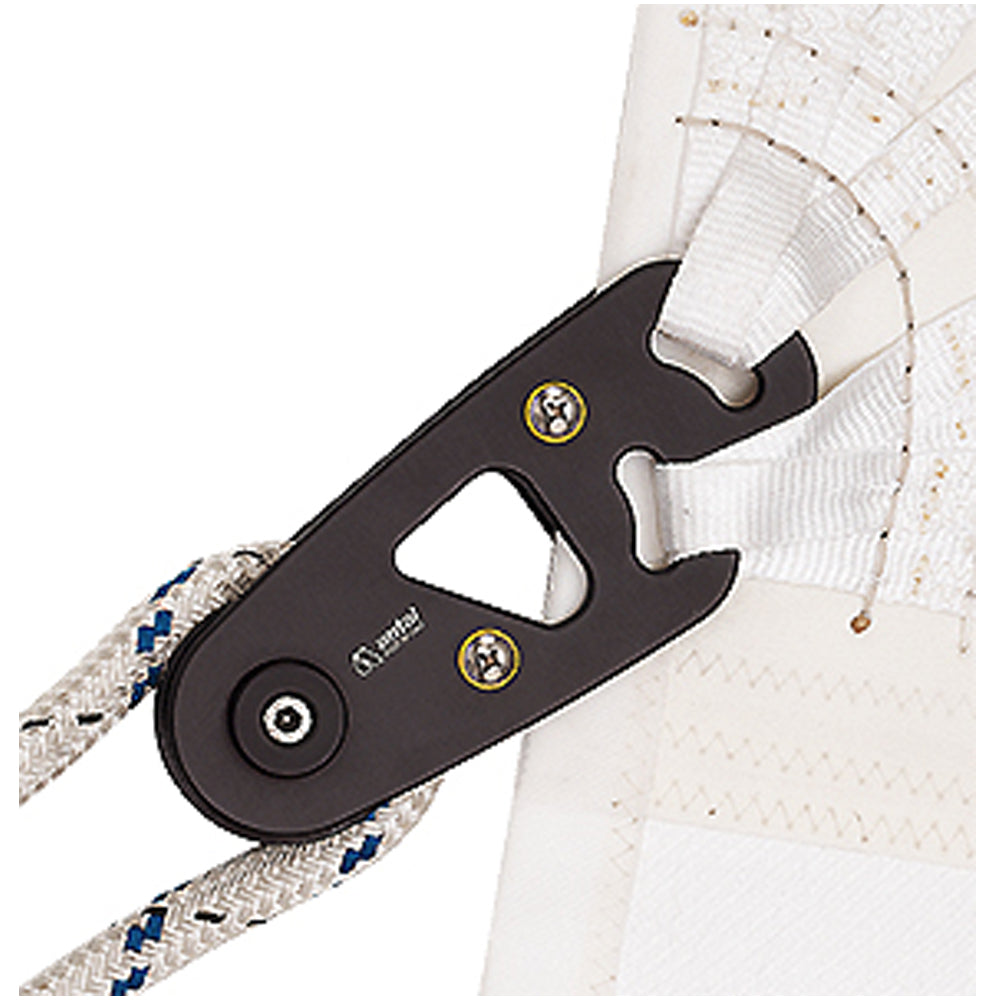

The blocks are connected to the mainsail's leech with webbing and reduce point loading on the mainsail when reefing. The small diameter sheaves are suitable for very high loads. The center hole can be a safety connection to the boom when reefed.

Our Part # ANT994085 | Antal Part # 994.085

Features

Features:

  • Reef block
  • Sheave Ø80
  • SWL 5.500 kg.
  • The small version (D=50 mm) is for boats to 50 ft, larger (D=120 mm) to 100 ft.

Technical Information


DescriptionImperialMetric
Lenght (L)9 3/8 in.238.00 mm.
Width (W)4 2/5 in.112.00 mm.
Track dimensions1 3/8 in.35.00 mm.
Ø Sheave (D)3 1/7 in.80.00 mm.
Side bearingDelrin ballsDelrin balls
Radial bearingComposite fibreComposite fibre
Weight1.98 lb.0.90 kg.
Ø Max line4/5 in.20.00 mm.
SWL12125.42 lb.5500.00 kg.
MaterialAluminumAluminum
Shave materialAluminumAluminum
Webbing (N. x width)2.00 x 1 8/9 in.2.00 x 48.00 mm.
