10% off

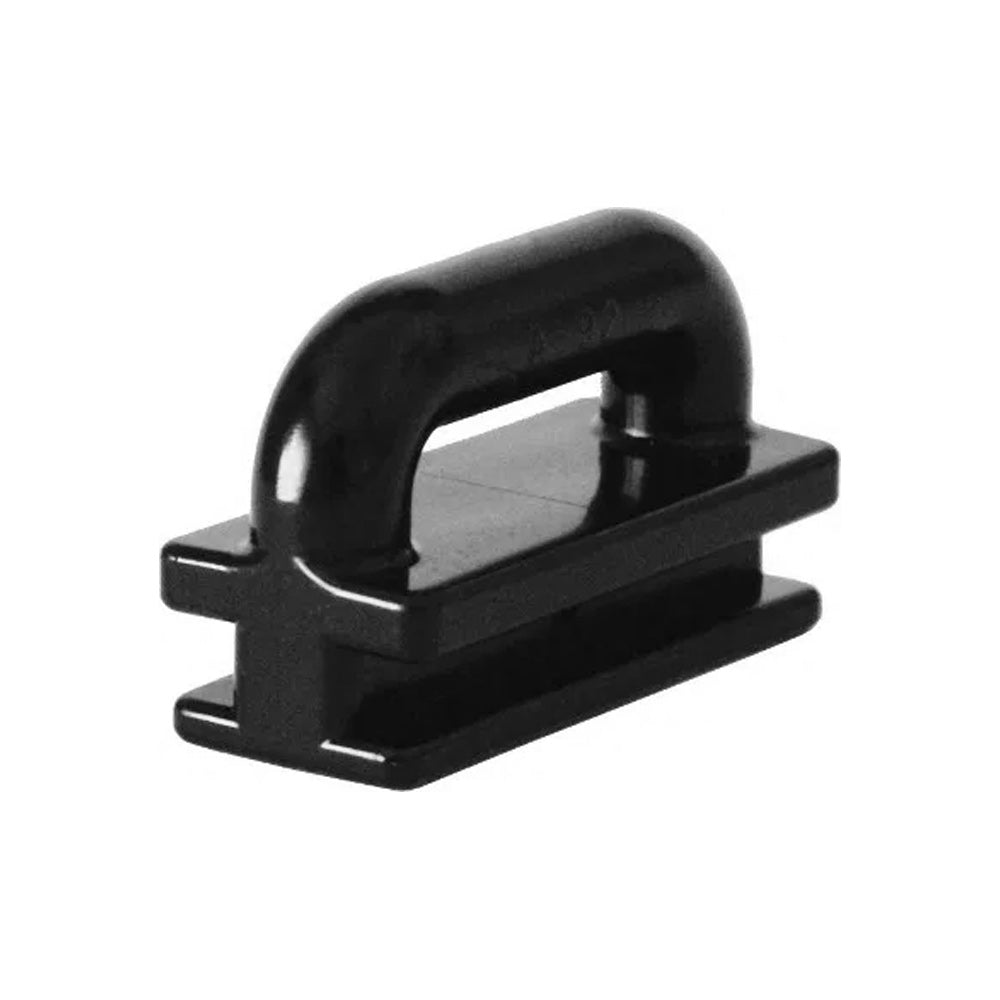

Allen Batten Car Systems - Slides - H Shaped Internal (Small) - Waist Width: 0.30 in (7.5 mm)
$2.58 USD
$2.87
Unit price
/
Unavailable
Allen Batten Car Systems - Slides - H Shaped Internal (Small) - Waist Width: 0.30 in (7.5 mm) is backordered and will ship as soon as it is back in stock.
This product ships from the UK. Lead-time: 5-7 days.
Description
Description
Internal Sail Slide
Our Part # ALL-AXX95 | Allen Part # A..95

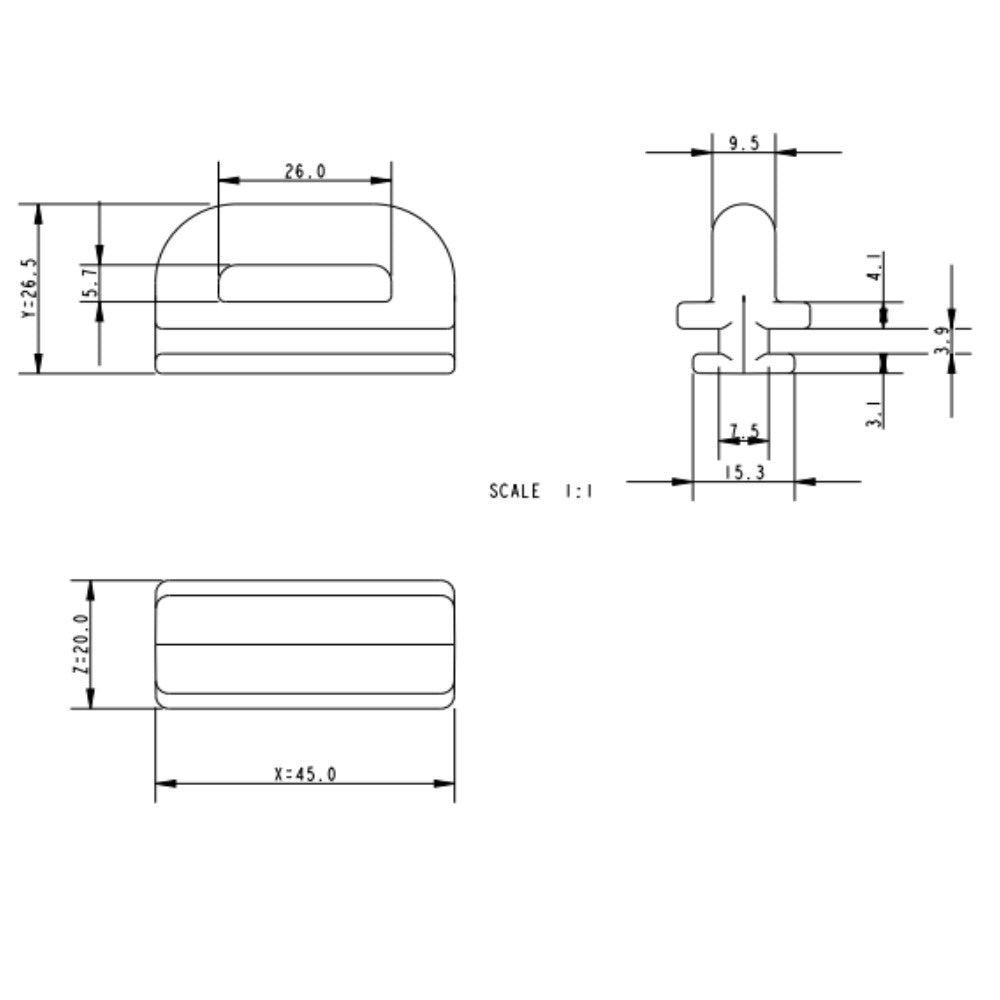

Technical Information
Technical Information
Description | Information | Imperial | Metric |
---|---|---|---|
Breaking load | - | 881.85 lb | 400 kg |
Compatible with | A.349 / A.749 / A1049 | - | - |
Maximum working load | - | 9 27/32 in | 250 mm |
Weight | - | 0.03 lb | 12 g |
X | - | 1 49/64 in | 45 mm |
Y1 | - | 1 1/16 in | 26.9 mm |
Y2 | - | 1/8 in | 3.1 mm |
Z1 | - | 39/64 in | 15.3 mm |
Z2 | - | 11/64 in | 4.23 mm |
