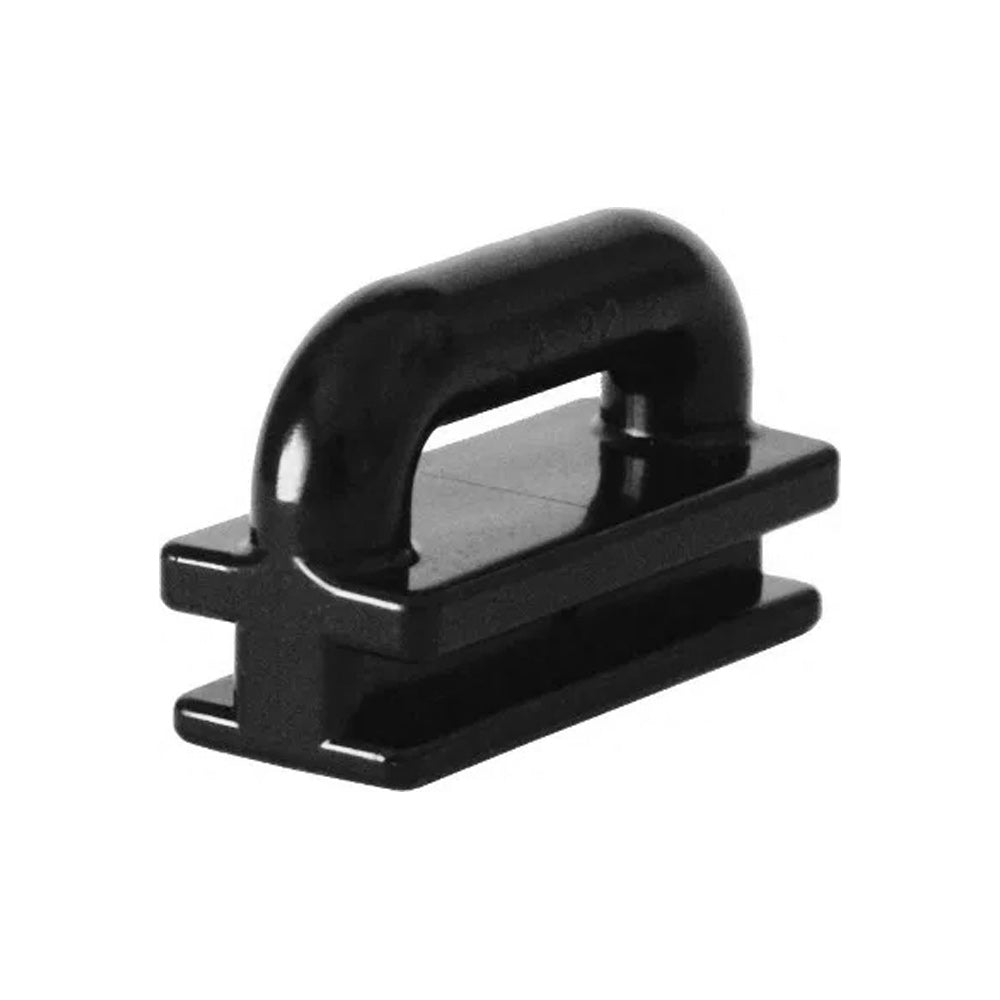

Allen Batten Car Systems - Slides - H Shaped Internal (Medium) - Waist Width: 0.35 in (9 mm)
$2.57 USD
$2.85
Unit price
/
Unavailable
Allen Batten Car Systems - Slides - H Shaped Internal (Medium) - Waist Width: 0.35 in (9 mm) is backordered and will ship as soon as it is back in stock.
This product ships from the UK. Lead-time: 5-7 days.
Description
Description
Internal Sail Slide
Our Part # ALL-AXX92 | Allen Part # A..92
Technical Information
Technical Information

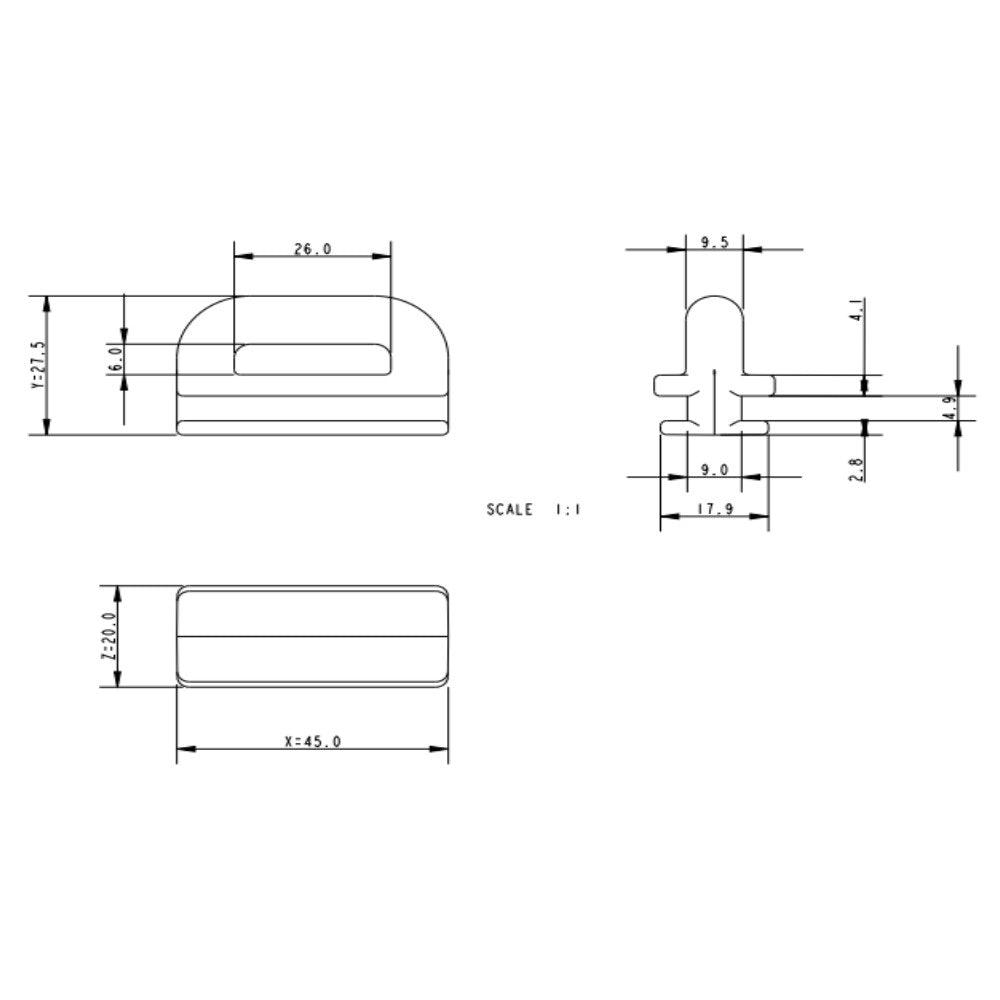

Description | Information | Imperial | Metric |
---|---|---|---|
Breaking load | - | 661.39 lb | 300 kg |
Compatible with | A.349 / A.849 / A1049 | - | - |
Maximum working load | - | 5 29/32 in | 150 mm |
Weight | - | 0.03 lb | 13 g |
X | - | 1 49/64 in | 45 mm |
Y1 | - | 1 3/32 in | 27.65 mm |
Y2 | - | 7/64 in | 2.84 mm |
Z1 | - | 45/64 in | 17.9 mm |
Z2 | - | 11/64 in | 4.23 mm |
