Allen Batten Car Systems - Slides - Internal - Waist Width: 0.16 in (4.1 mm)
SKU:
ALL-AX658
|
Manuf. Code:
A.658
10% off
Unit price
/
Unavailable
Allen Batten Car Systems - Slides - Internal - Waist Width: 0.16 in (4.1 mm) is backordered and will ship as soon as it is back in stock.
This product ships from the UK. Lead-time: 5-7 days.
Description
Description

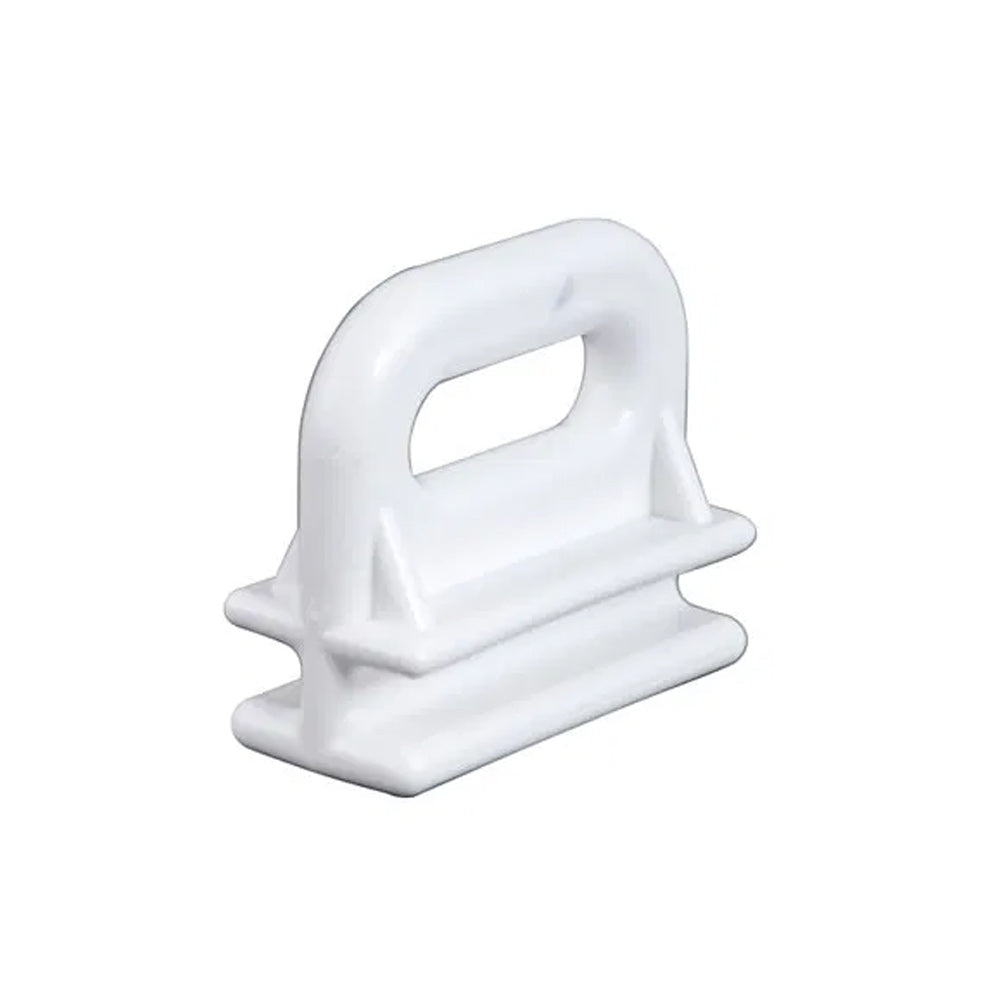

Internal Sail Slide
Our Part # ALL-AX658 | Allen Part # A.658
Technical Information
Technical Information

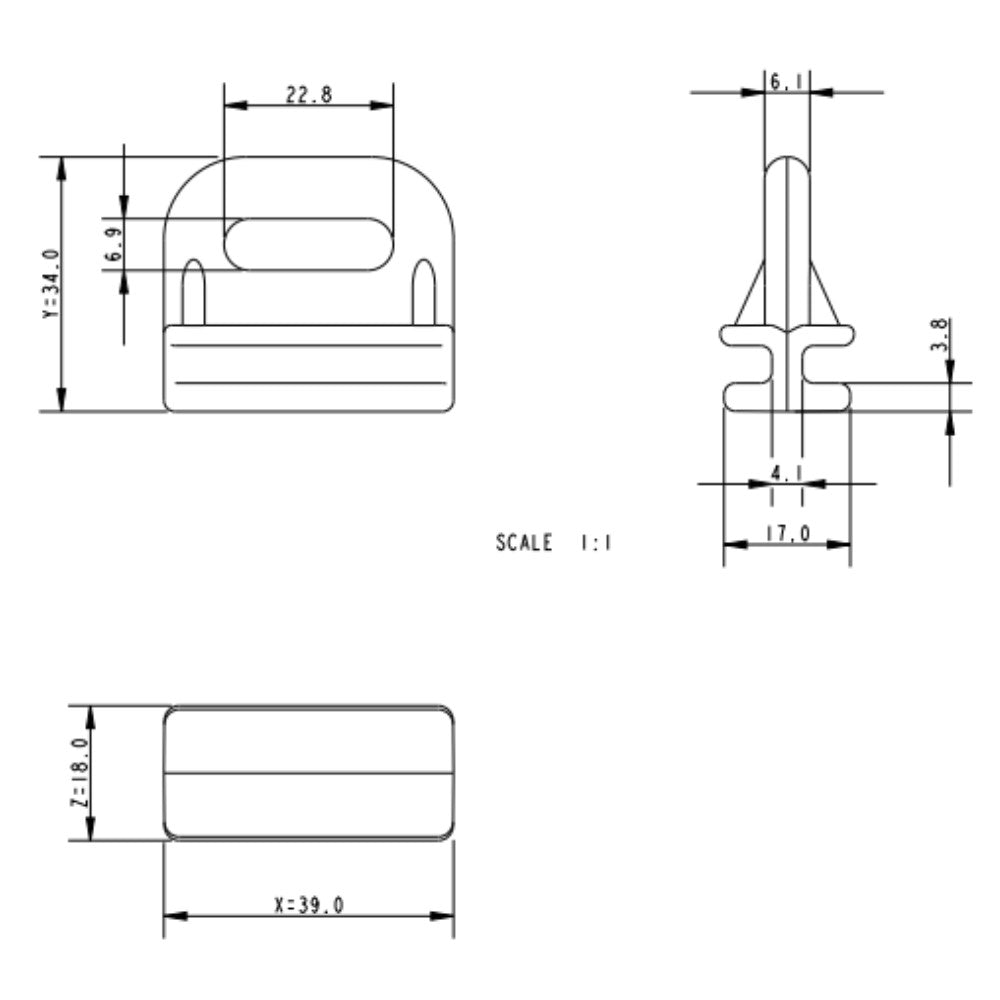

Description | Imperial | Metric |
---|---|---|
Breaking load | 771.62 lb. | 350 kg. |
Compatible with | A.249 / A.349 / A.449 / A.649 / A.749 / A.849 / A1049 | |
Maximum working load | 5 29/32 in. | 150 mm. |
Weight | 0.02 lb. | 10 g. |
X | 1 17/32 in. | 39 mm. |
Y1 | 1 11/32 in. | 34 mm. |
Y2 | 11/64 in. | 4.2 mm. |
Z1 | 43/64 in. | 17 mm. |
Z2 | 5/32 in. | 3.8 mm. |
