Allen Batten Car Systems - Slides - Internal (Long) - Waist Width: 0.12 in (3 mm)
$1.45 USD
$1.61
Unit price
/
Unavailable
Allen Batten Car Systems - Slides - Internal (Long) - Waist Width: 0.12 in (3 mm) is backordered and will ship as soon as it is back in stock.
This product ships from the UK. Lead-time: 5-7 days.
Description
Description

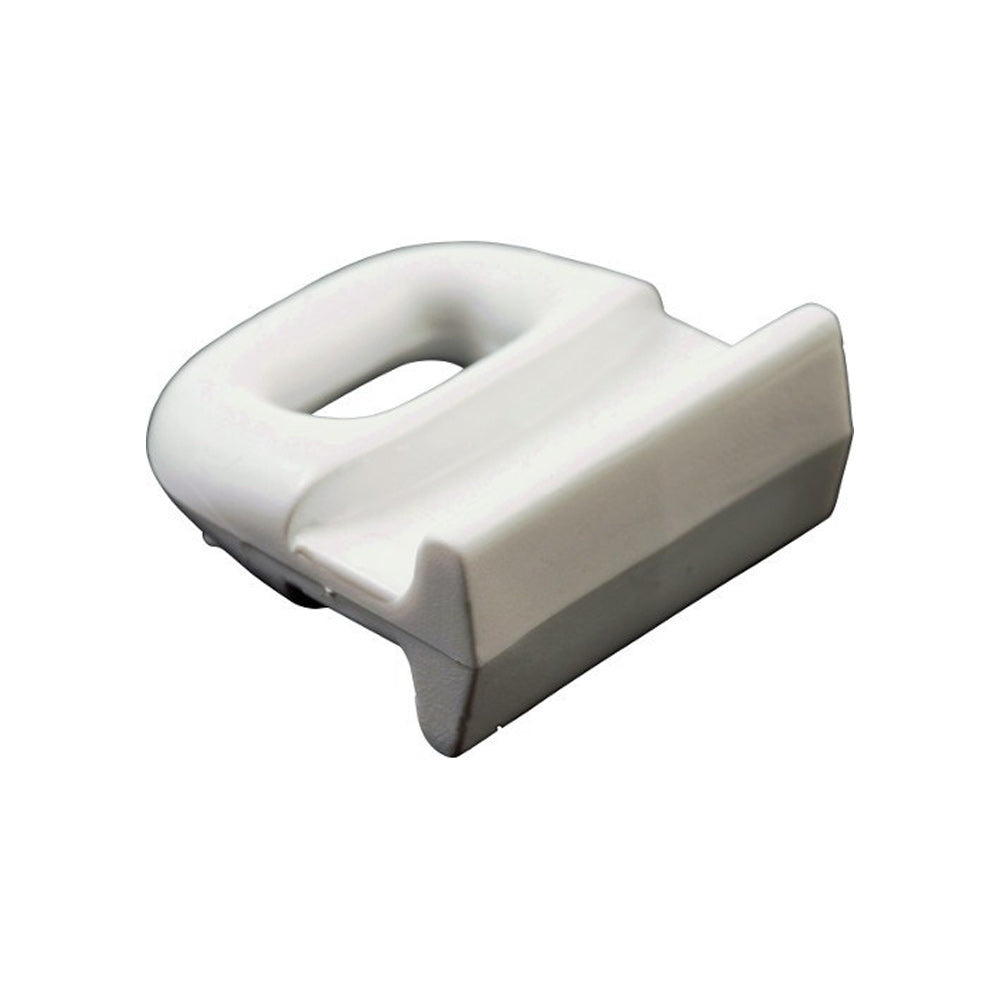

Internal Sail Slide
Our Part # ALL-AX558DW | Allen Part # A.558DW
Technical Information
Technical Information

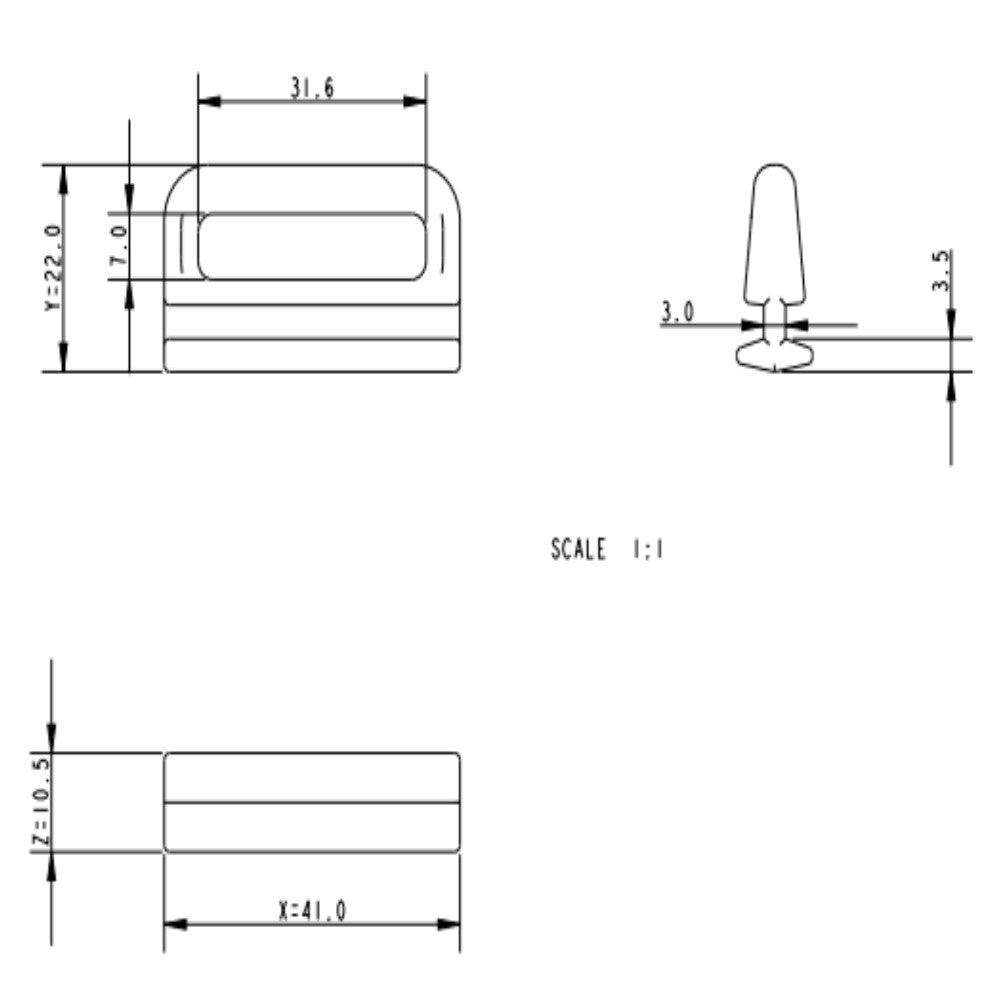

Description | Information | Imperial | Metric |
---|---|---|---|
Breaking load | - | 308.65 lb | 140 kg |
Compatible with | A.249 / A.349 / A.449 / A.549 / A.649 / A.749 / A.849 / A1049 | - | - |
Maximum working load | - | 1 3/16 in | 30 mm |
Weight | - | 0.004 lb | 2 g |
X | - | 1 39/64 in | 41 mm |
Y1 | - | 53/64 in | 21 mm |
Y2 | - | 1/8 in | 3 mm |
Z1 | - | 25/64 in | 10 mm |
Z2 | - | 13/64 in | 5 mm |
