Allen Batten Car Systems - Slides - Internal (Medium) - Waist Width: 0.14 in (3.5 mm)
$1.03 USD
$1.15
Unit price
/
Unavailable
Allen Batten Car Systems - Slides - Internal (Medium) - Waist Width: 0.14 in (3.5 mm) is backordered and will ship as soon as it is back in stock.
This product ships from the UK. Lead-time: 5-7 days.
Description
Description

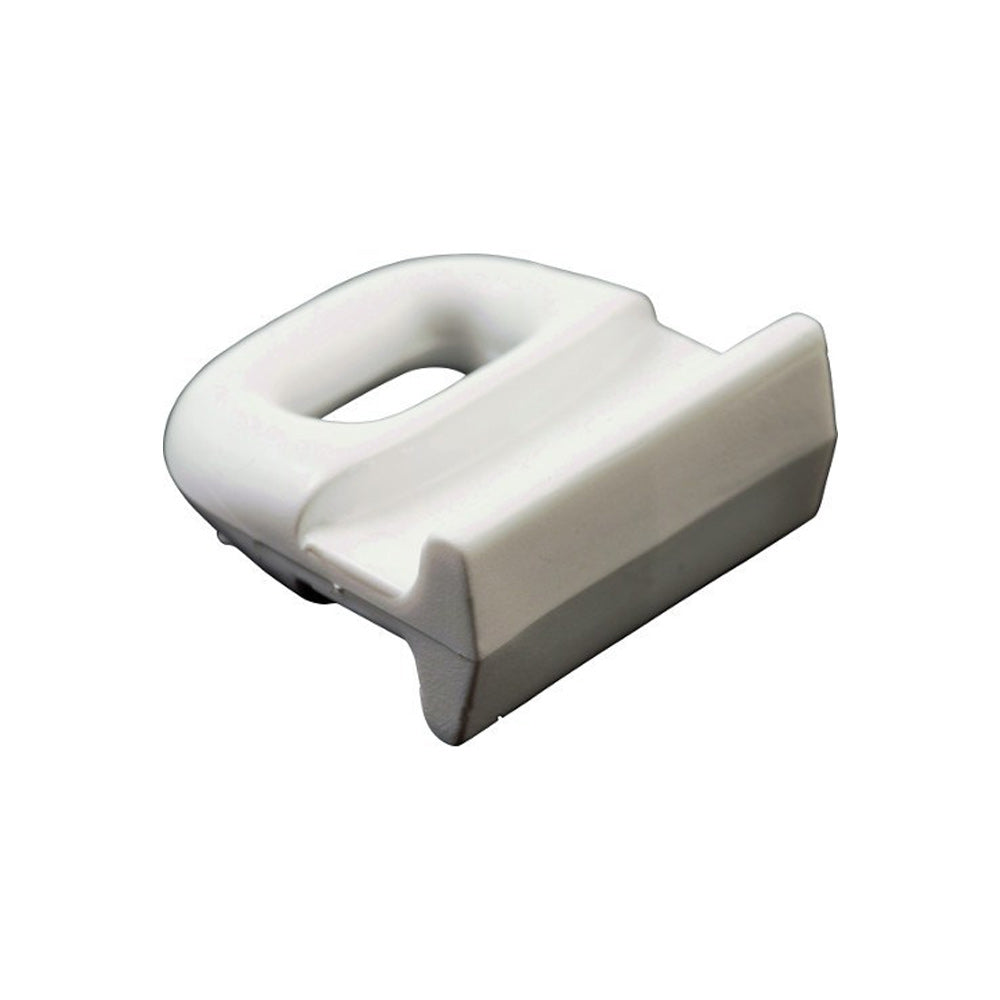

Internal Sail Slide
Our Part # ALL-AX458 | Allen Part # A.458
Technical Information
Technical Information

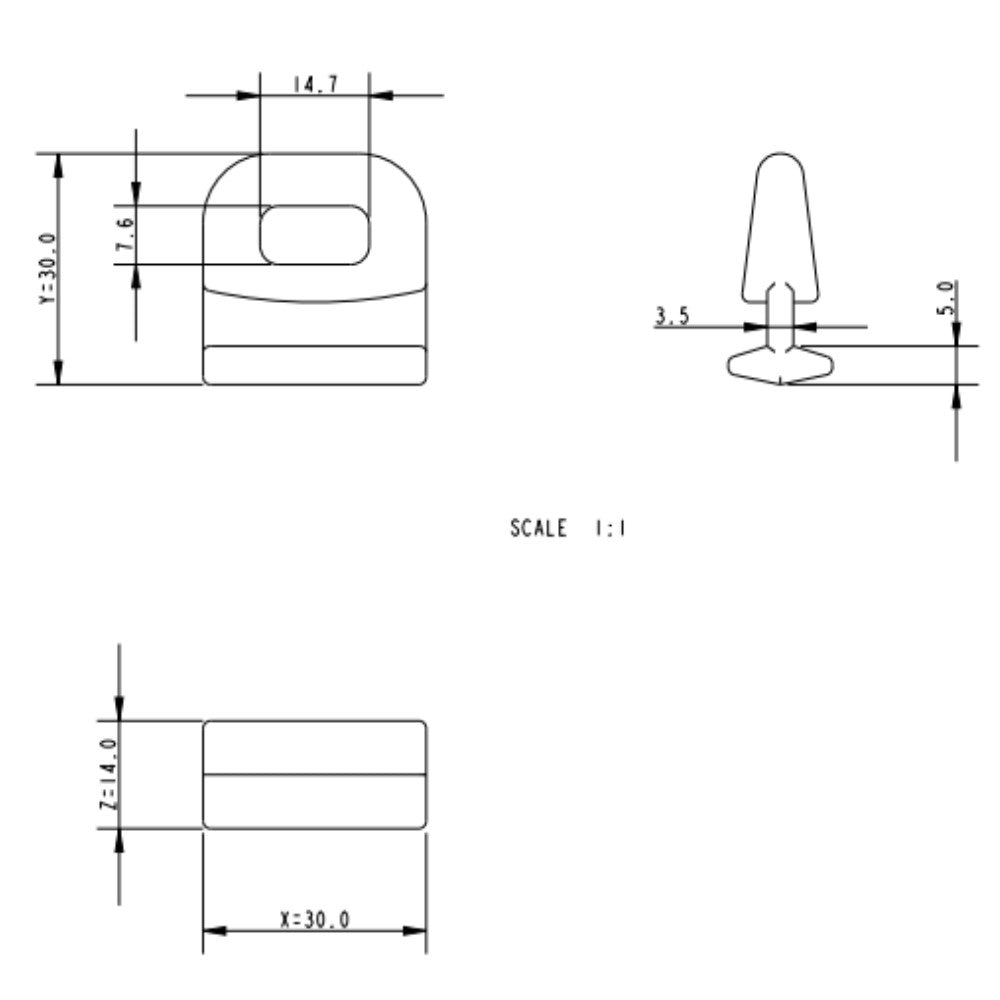

Description | Information | Imperial | Metric |
---|---|---|---|
Breaking load | - | 551.16 lb | 250 kg |
Compatible with | A.249 / A.349 / A.449 / A.649 / A.749 / A.849 / A1049 | - | - |
Maximum working load | - | 3 15/16 in | 100 mm |
Weight | - | 0.01 lb | 5 g |
X | - | 1 3/16 in | 30 mm |
Y1 | - | 1 9/64 in | 29 mm |
Y2 | - | 5/32 in | 4 mm |
Z1 | - | 35/64 in | 13.8 mm |
Z2 | - | 1/8 in | 3 mm |
