Allen Batten Car Receptacles - Pocket Protector w/ Brass Screws - Width: 2.36 in (60 mm)
SKU:
ALL-AX251
|
Manuf. Code:
A.251
10% off
Unit price
/
Unavailable
Allen Batten Car Receptacles - Pocket Protector w/ Brass Screws - Width: 2.36 in (60 mm) is backordered and will ship as soon as it is back in stock.
This product ships from the UK. Lead-time: 5-7 days.
Description
Description

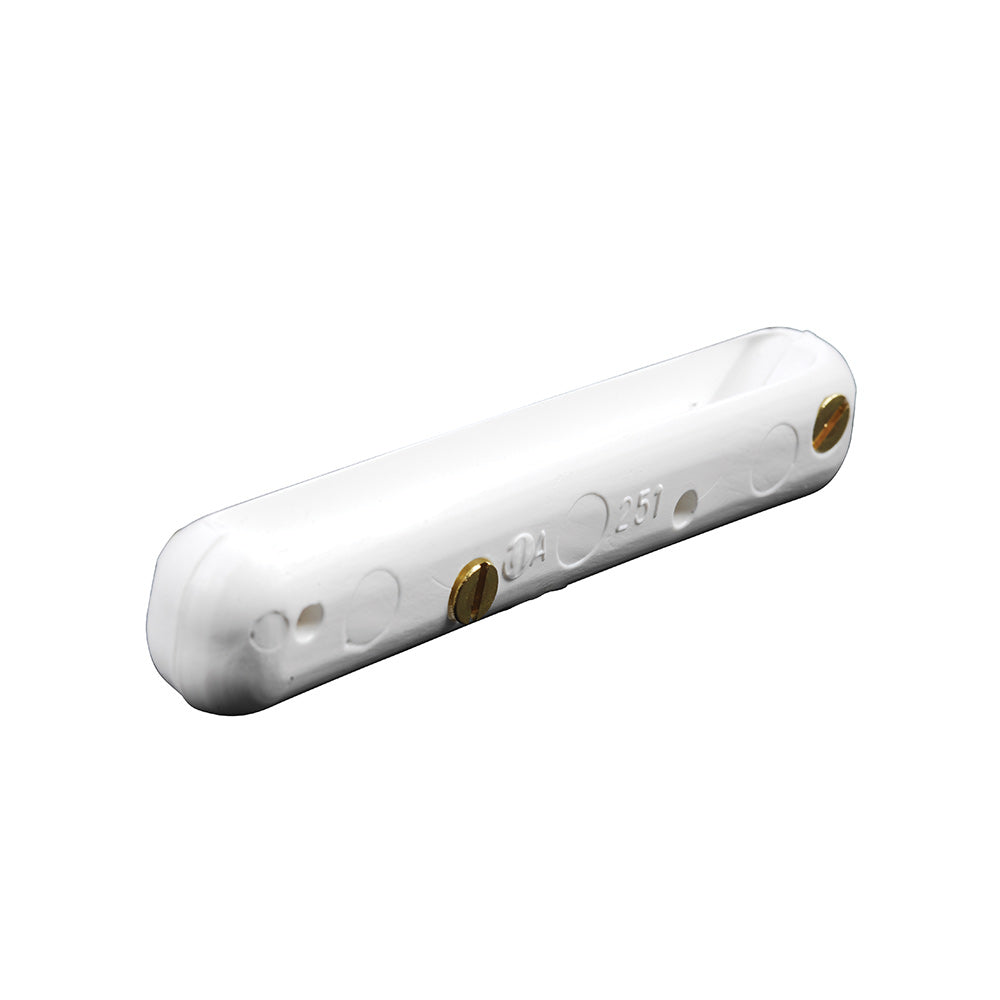

Batten Pocket Protector With Brass Screws
Our Part # ALL-AX251 | Allen Part # A.251
Technical Information
Technical Information

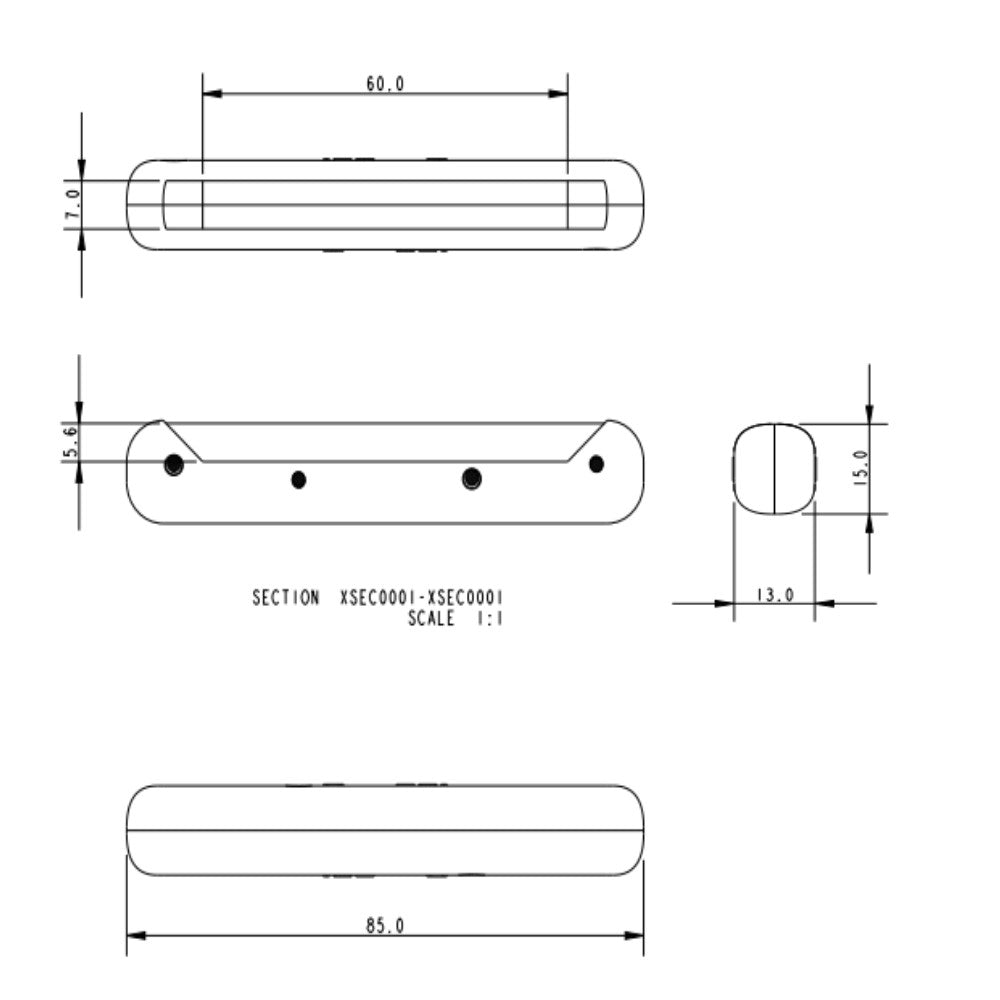

Description | Imperial | Metric |
---|---|---|
Length overall | 3 11/32 in. | 85 mm. |
Thickness overall | 25/64 in. | 13 mm. |
To suit batten thickness | 9/32 in. | 7 mm. |
To suit batten width | 2 23/64 in. | 60 mm. |
Weight | 0.03 lb. | 13 g. |
Width Overall | 19/32 in. | 15 mm. |
