Allen  |  SKU: ALL-A4593  |  Manuf. Code: A4593

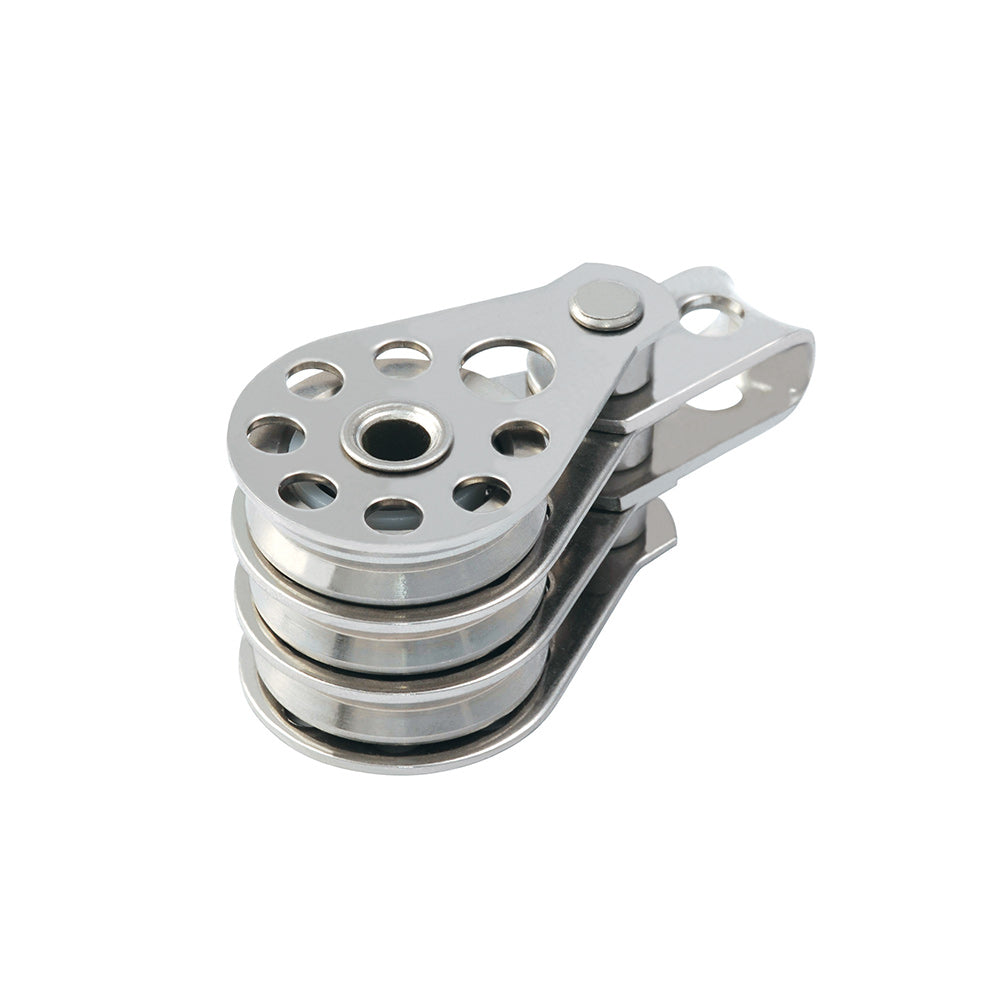

Allen Triple High Tension Block Fixed Head

$114.95 USD $127.72
This product ships from the UK. Lead-time: 5-7 days.

Description

25mm Double Fixed Head Wire Block.

Specifically intended for use where wire lines are subjected to low running speeds and higher static loads.

For faster running, lower loaded control lines consider the dynamic range.

Our Part # ALL-A4593 | Allen Part # A4593

Features

Features:

  • Body: Formed in stainless steel for a lightweight yet robust frame.
  • Bearings: A single row of spaced stainless steel ball bearings run on a stainless steel axle. This allows the width of the block to be as narrow as possible whilst still offering excellent rolling speeds and high working loads.

Technical Information


DescriptionImperialMetric
Breaking load1653.75 lbs.750.00 kg.
Length2 1/4 in.57.00 mm.
Maximum line diameter0.08 - 1/5 in.2.00 - 5.00 mm.
Shackle pin1/5 in.5.00 mm.
Sheave diameter1.00 in.25.00 mm.
Weight2.75 oz.78.00 g.
