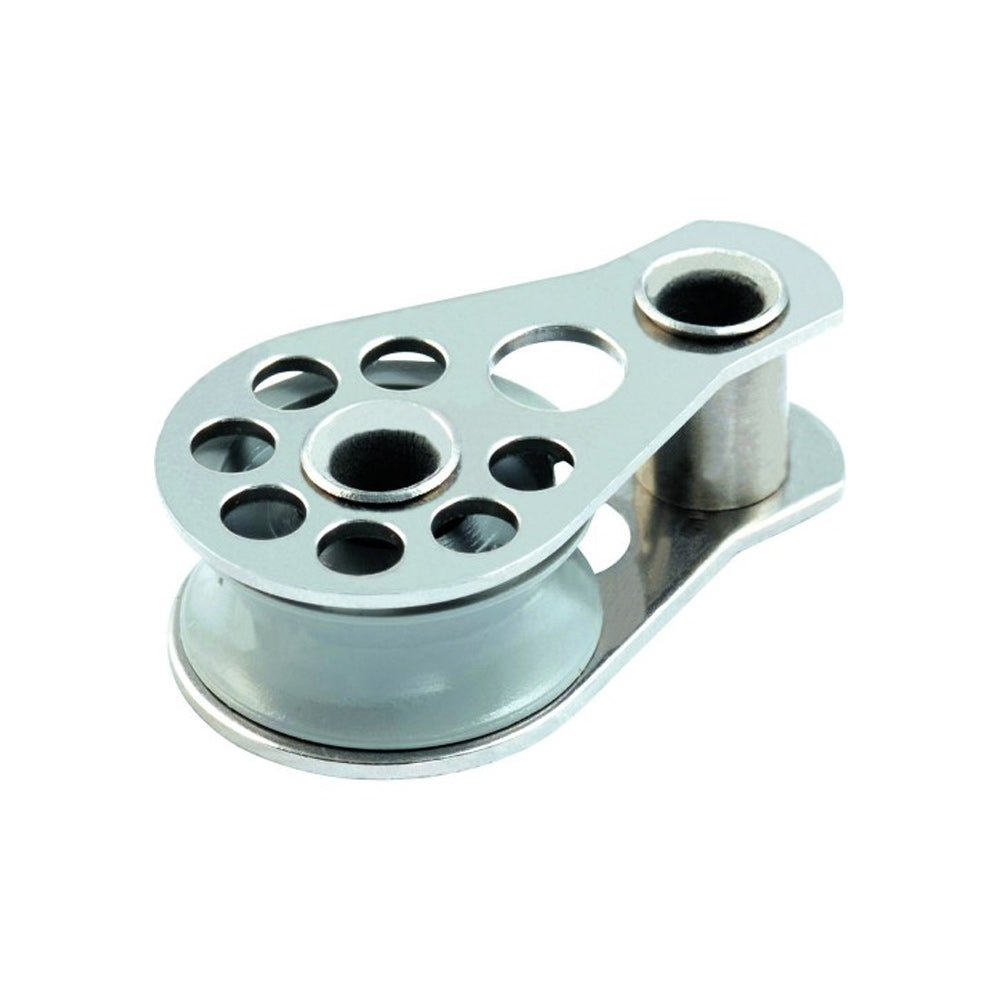

Allen 16 mm Acetal Sheave Cheek Block
$9.32 USD
$10.36
Unit price
/
Unavailable
Allen 16 mm Acetal Sheave Cheek Block is backordered and will ship as soon as it is back in stock.
Description
Description
16mm Single Plain Bearing Cheek Block With Acetal Sheave.
Designed to be lightweight and cost-effective. Ideal for low loaded systems, such as control line bungee take-ups or rope guides.
Our Part # ALL-A4181 | Allen Part # A4181
Features
Features
Features:
- Plain Bearing:Â The acetal sheave spins around the central axle. This type of bearing has a long lifespan and is very low maintenance.
- Lightweight Strap:Â The body of this block is formed in stainless steel for a lightweight yet robust frame.
- Cheek Block:Â Designed to be fixed to a flat surface. Ideal for leading lines along a deck, into a cleat or around corners. Held in place by two screws. One screw through the middle of the sheave and the other through the top rivet.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 275.00 kg. | 606.38 lbs. |
Length | 30.00 mm. | 1 1/6 in. |
Maximum line diameter | 5.00 mm. | 1/5 in. |
Sheave diameter | 16.00 mm. | 5/8 in. |
Weight | 6.00 g. | 0.21 oz. |
To suit shackle pin | 4.00 mm. | 1/6 in. |
