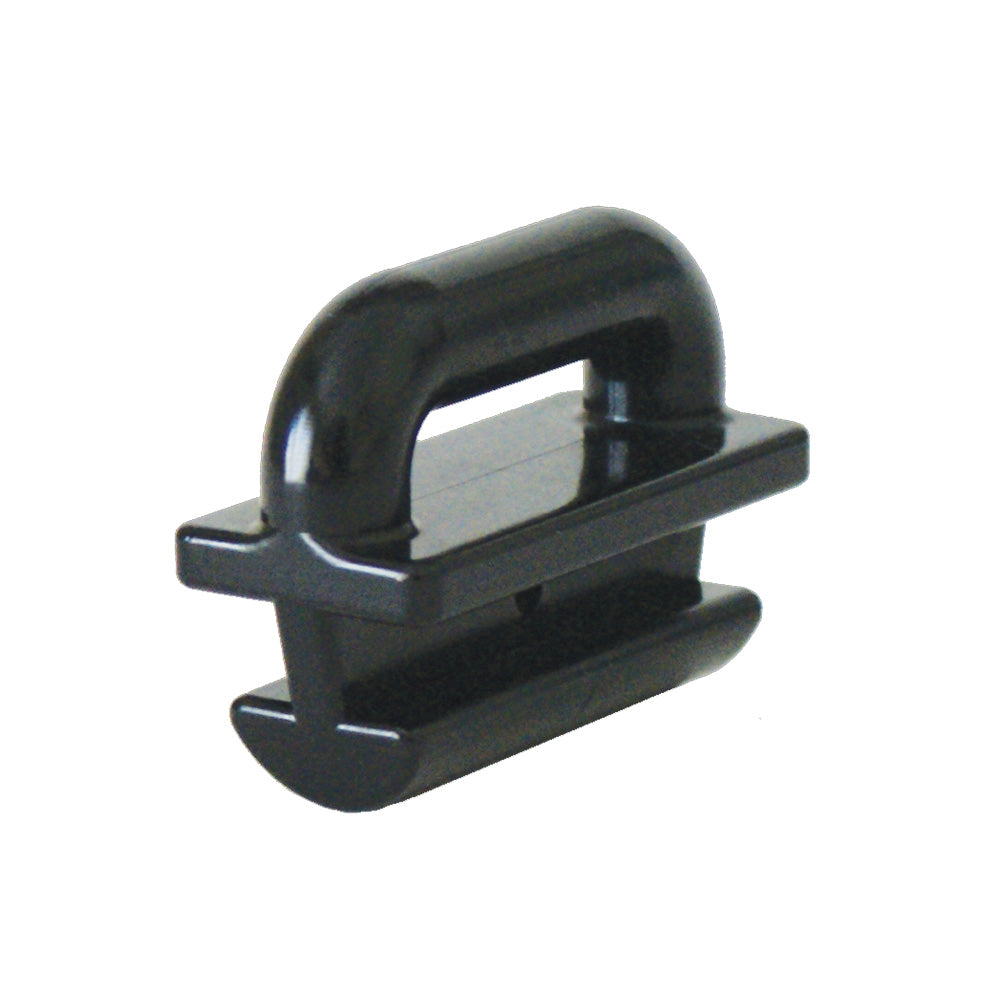

Allen Batten Car Systems - Slugs - C Shaped - Waist Width: 0.16 in (4 mm)
SKU:
ALL-A1158
|
Manuf. Code:
A1158
10% off
Unit price
/
Unavailable
Allen Batten Car Systems - Slugs - C Shaped - Waist Width: 0.16 in (4 mm) is backordered and will ship as soon as it is back in stock.
This product ships from the UK. Lead-time: 5-7 days.
Description
Description
Sail Slug
Our Part # ALL-A1158 | Allen Part # A1158
Technical Information
Technical Information

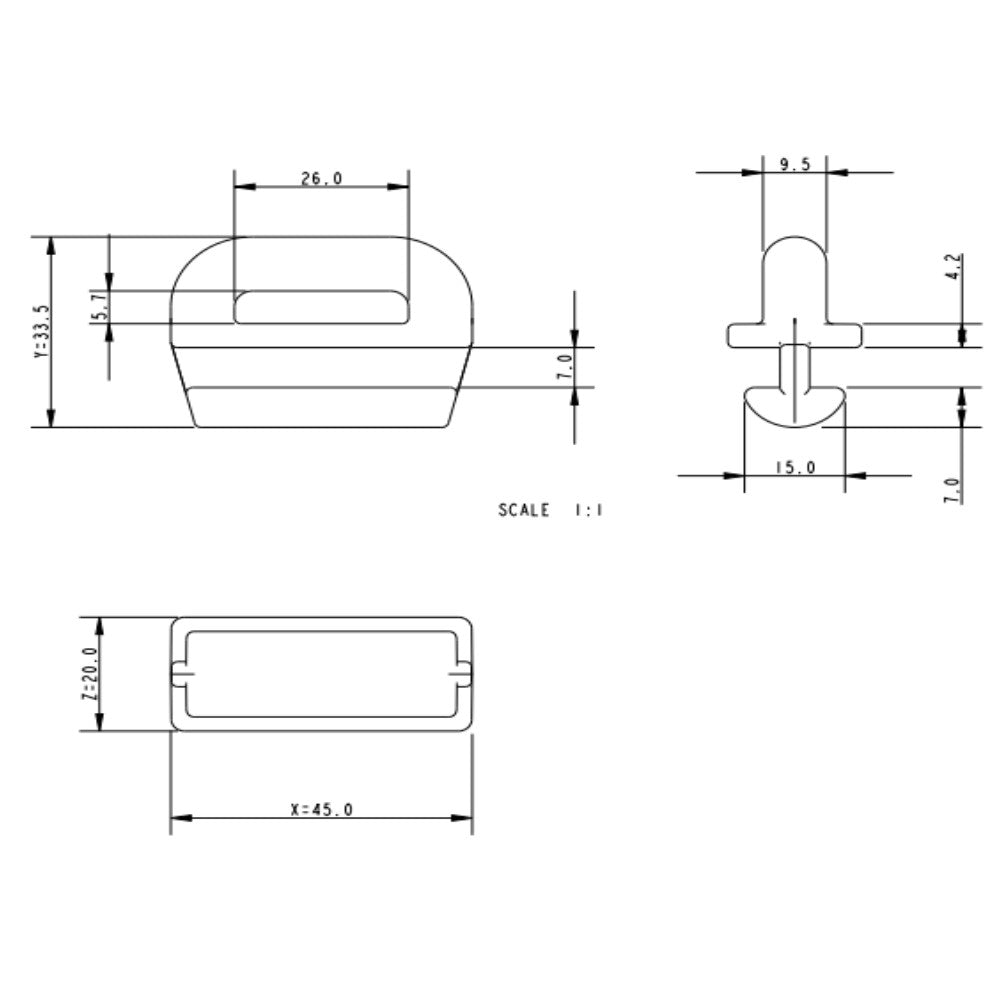

Description | Imperial | Metric |
---|---|---|
Breaking load | 1 322.77 lb. | 600 kg. |
Compatible with | A.349 / A1049 | |
Maximum working load | 9 27/32 in. | 250 mm. |
Weight | 0.03 lb. | 14 g. |
X | 1 49/64 in. | 45 mm. |
Y1 | 1 21/64 in. | 33.55 mm. |
Y2 | 11/64 in. | 4.23 mm. |
Z1 | 11/64 in. | 4.4 mm. |
Z2 | 7/32 in. | 5.75 mm. |
