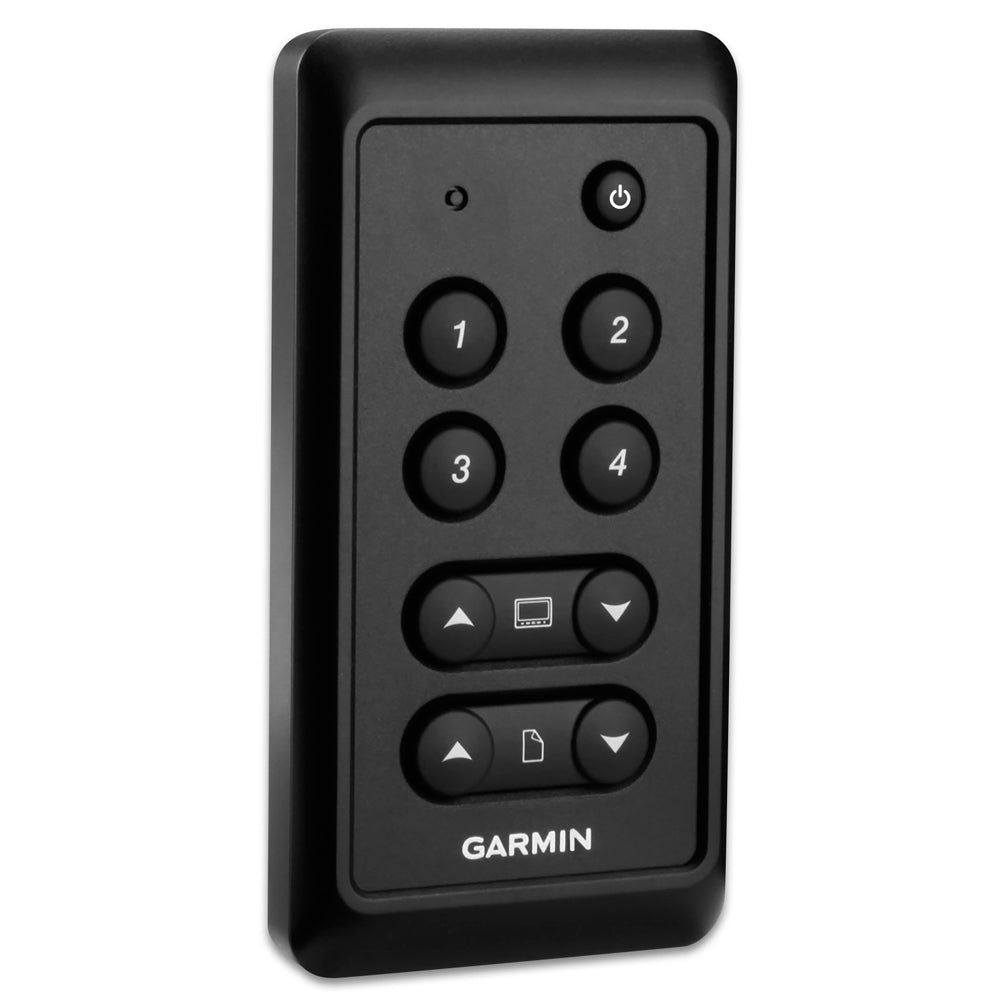

Garmin GNX Keypad

Control a compatible GNX instrument display from a distance with this push-button keypad interface which can be fixed-mounted near the helm. It features 4 buttons dedicated to preset configurations. Plus, you can adjust the background lighting of all displays with the touch of a button.

Specifications:

• Physical dimensions: 59 x 115 x 15 mm (2.32'' x 4.53'' x .59'')
• Weight: 95 g (3.4 oz)
• Water rating: IPX7
• Temperature range: From 5x to 158xF (from -15x to 70xC)
• Voltage range: 9-16 V (from NMEA 2000)
• Power consumption: 0.2 W
• Mounting options: Flush
• NMEA 2000® certified: Yes
• NMEA 0183 compatible: No
• Auto-on: Yes

Compatible Devices:

• GNX™ 120
• GNX™ 130

Our Part # GAR-010-12255-00 | Garmin Part # 010-12255-00

Physical dimensions: 59 x 115 x 15 mm
Weight: 95 g
Water rating: IPX7
Temperature range: From 5x to 158xF
Voltage range: 9-16 V (from NMEA 2000)
Power consumption: 0.2 W
Mounting options: Flush
NMEA 2000® certified: Yes
NMEA 0183 compatible: No
Auto-on: Yes
