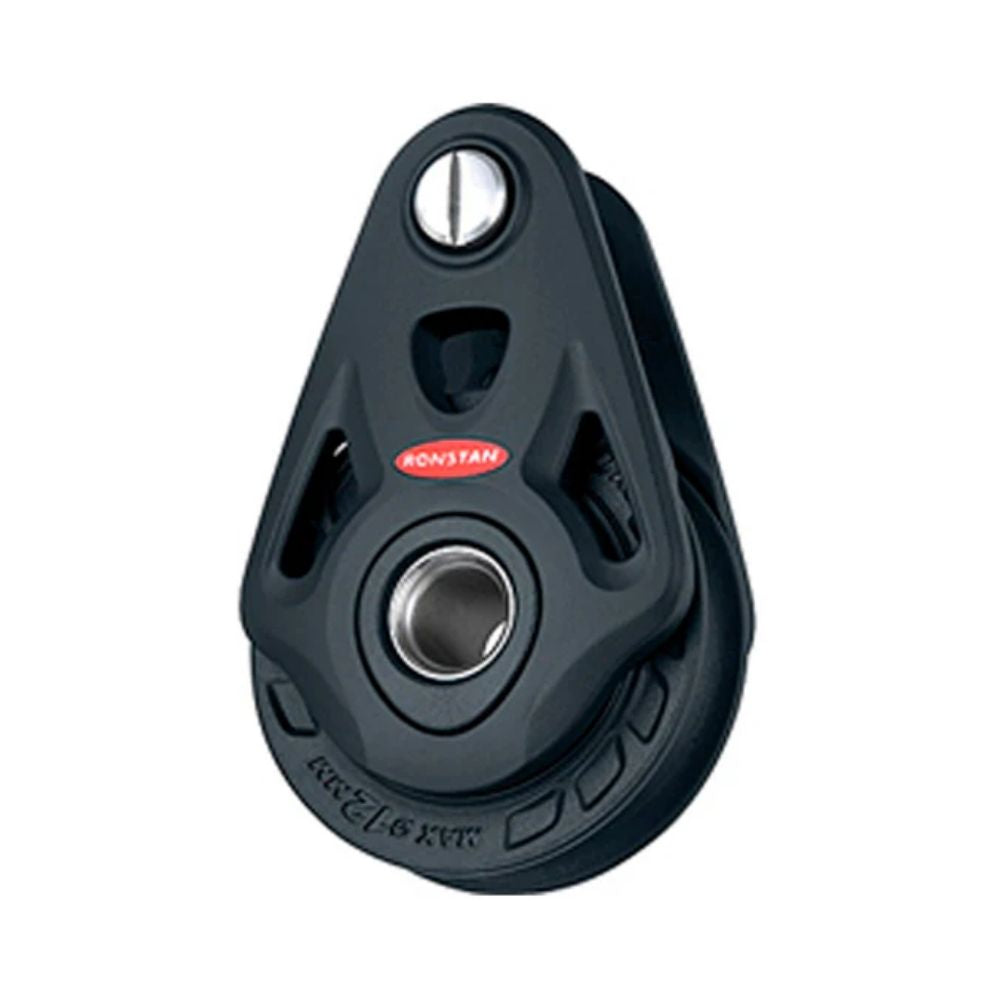

Ronstan Series 60 Core Block, Halyard
Ronstan Series 60 Core Block, Halyard is backordered and will ship as soon as it is back in stock.
Description
Description
Core Blocks™ are a true all round solution. A tuned 2-stage bearing system provides excellent performance across the full working load range with an integrated thrust bearing feature and the resilience to handle high dynamic or static loads. Acetal sheave, alloy cheeks and stainless fixings complete the durable package. For reliability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
Universal BearingDynamic and high static load performanceThe Ronstan Universal Bearing incorporates our proven 2-stage bearing systemStage 1 - Under moderate loads, Acetal ball bearings ensure minimum friction.Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance.Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn't perfect. Particularly important for cheek blocks.Alloy cheek platesBlock cheeks are manufactured from the highest quality alloy for maximum strength. Material optimisation and the cut-away design minimises weight and allows easy fresh water rinsing of salt and debris from the bearings. Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimising rope wear. Our Part # RONRF64108 | Ronstan Part # RF64108
Dynamic and high static load performanceThe Ronstan Universal Bearing incorporates our proven 2-stage bearing systemStage 1 - Under moderate loads, Acetal ball bearings ensure minimum friction.Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance.Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn't perfect. Particularly important for cheek blocks.Alloy cheek platesBlock cheeks are manufactured from the highest quality alloy for maximum strength. Material optimisation and the cut-away design minimises weight and allows easy fresh water rinsing of salt and debris from the bearings. Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimising rope wear. Our Part # RONRF64108 | Ronstan Part # RF64108
The Ronstan Universal Bearing incorporates our proven 2-stage bearing systemStage 1 - Under moderate loads, Acetal ball bearings ensure minimum friction.Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance.Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn't perfect. Particularly important for cheek blocks.Alloy cheek platesBlock cheeks are manufactured from the highest quality alloy for maximum strength. Material optimisation and the cut-away design minimises weight and allows easy fresh water rinsing of salt and debris from the bearings. Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimising rope wear. Our Part # RONRF64108 | Ronstan Part # RF64108
Stage 1 - Under moderate loads, Acetal ball bearings ensure minimum friction.Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance.Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn't perfect. Particularly important for cheek blocks.Alloy cheek platesBlock cheeks are manufactured from the highest quality alloy for maximum strength. Material optimisation and the cut-away design minimises weight and allows easy fresh water rinsing of salt and debris from the bearings. Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimising rope wear. Our Part # RONRF64108 | Ronstan Part # RF64108
Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance.Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn't perfect. Particularly important for cheek blocks.Alloy cheek platesBlock cheeks are manufactured from the highest quality alloy for maximum strength. Material optimisation and the cut-away design minimises weight and allows easy fresh water rinsing of salt and debris from the bearings. Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimising rope wear. Our Part # RONRF64108 | Ronstan Part # RF64108
Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn't perfect. Particularly important for cheek blocks.
Alloy cheek platesBlock cheeks are manufactured from the highest quality alloy for maximum strength. Material optimisation and the cut-away design minimises weight and allows easy fresh water rinsing of salt and debris from the bearings. Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimising rope wear.
Block cheeks are manufactured from the highest quality alloy for maximum strength. Material optimisation and the cut-away design minimises weight and allows easy fresh water rinsing of salt and debris from the bearings. Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimising rope wear.
Our Part # RONRF64108 | Ronstan Part # RF64108
Features
Features
Features:
- Class leading performance and sleek, contemporary styling
- Excellent dynamic and high static load performance
- Less than half the friction of the nearest competitor
- Suits direct attachment to mainsail headboard for 2:1 halyard
- Removable 8mm (5/16â) threaded pin at head
- Acetal roller on head pin to suit spliced line attachment
- Central hub hole can be used as a becket take-off or tie-up point
- Alloy Rope/Wire sheave version also available
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Sheave Ø | 2 1/3 in. | 60.00 mm. |
Maximum Rope | 1/2 in. | 12.00 mm. |
Pin Ø | 1/3 in. | 8.00 mm. |
Maximum Working Load | 2205.00 lb. | 1000.00 kg. |
Breaking Load | 4410.00 lb. | 2000.00 kg. |
Weight | 6.56 oz. | 186.00 gr. |
