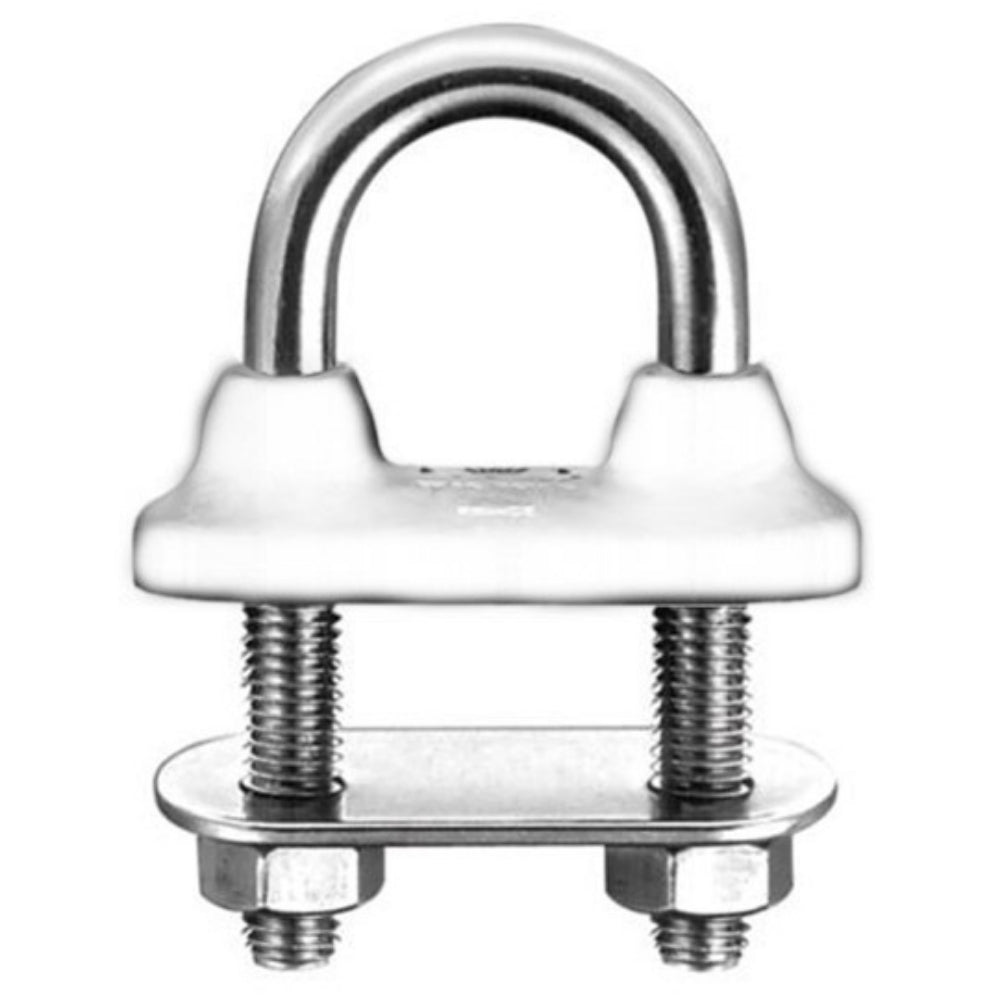

Wichard U-Bolt Watertight (White) - Length: 3 15/16 in (100 mm) - Dia: 5/16 in (8.0 mm)
Wichard U-Bolt Watertight (White) - Length: 3 15/16 in (100 mm) - Dia: 5/16 in (8.0 mm) is backordered and will ship as soon as it is back in stock.
Description
Description
Fully drop-forged product with high-quality stainless steel. Outstanding working and breaking loads. Complete water tightness thanks to the resistant rubber collar (white color). Easy installation (no need to use a waterproof sealant). For any kind of fastening applications (shrouds, lifeline, blocks...). Delivered with bolts and counter plate. Max tightening torque: 18 Nm.
Our Part # WIC65442 | Wichard Part # 65442
Technical Information
Technical Information

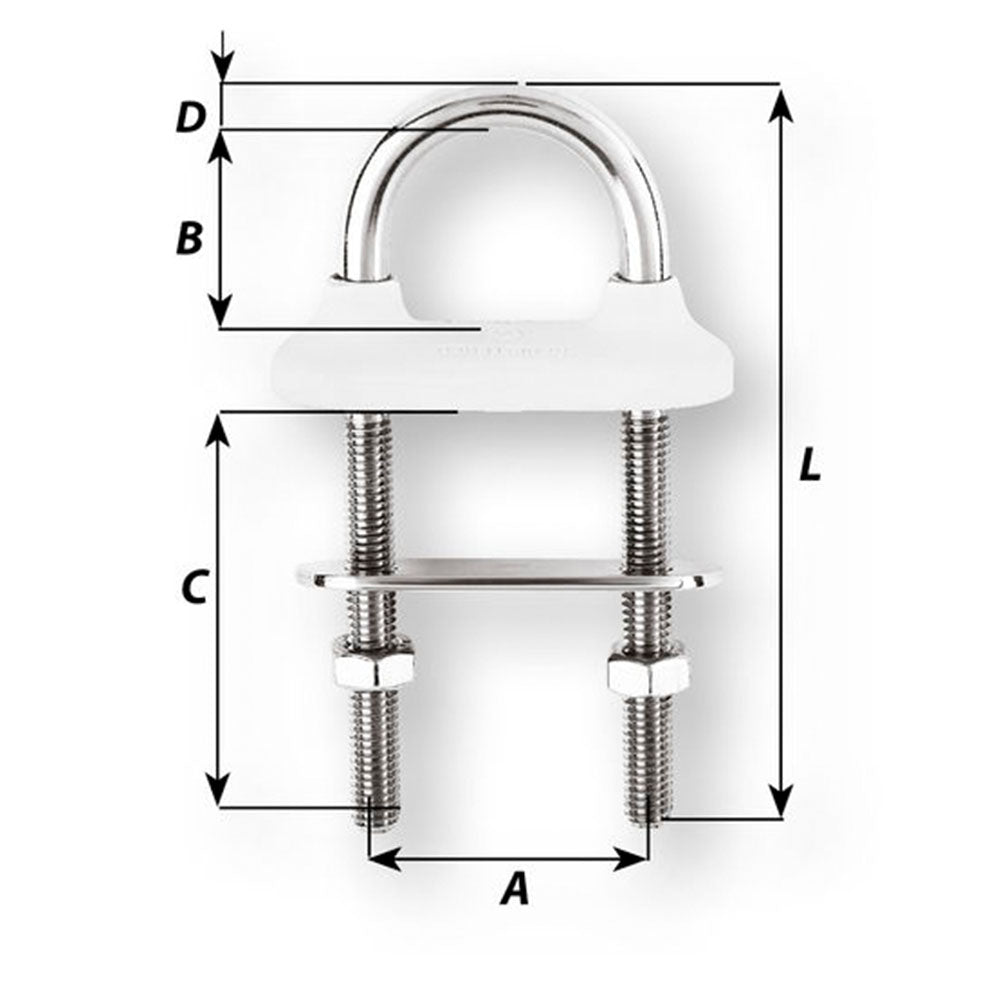

Description | Imperial | Metric | Length | 3.94 in. | 100.00 mm. | Working Load | 5290.00 lb. | 2400.00 Kg. | Breaking Load | 10580.00 lb. | 4800.00 Kg. | Weight | 0.30 lb. | 136.00 g. | A | 1.42 in. | 36.00 mm. | B | 0.98 in. | 25.00 mm. | C | 2.36 in. | 60.00 mm. | D diameter | 0.31 in. | 8.00 mm. |
---|
