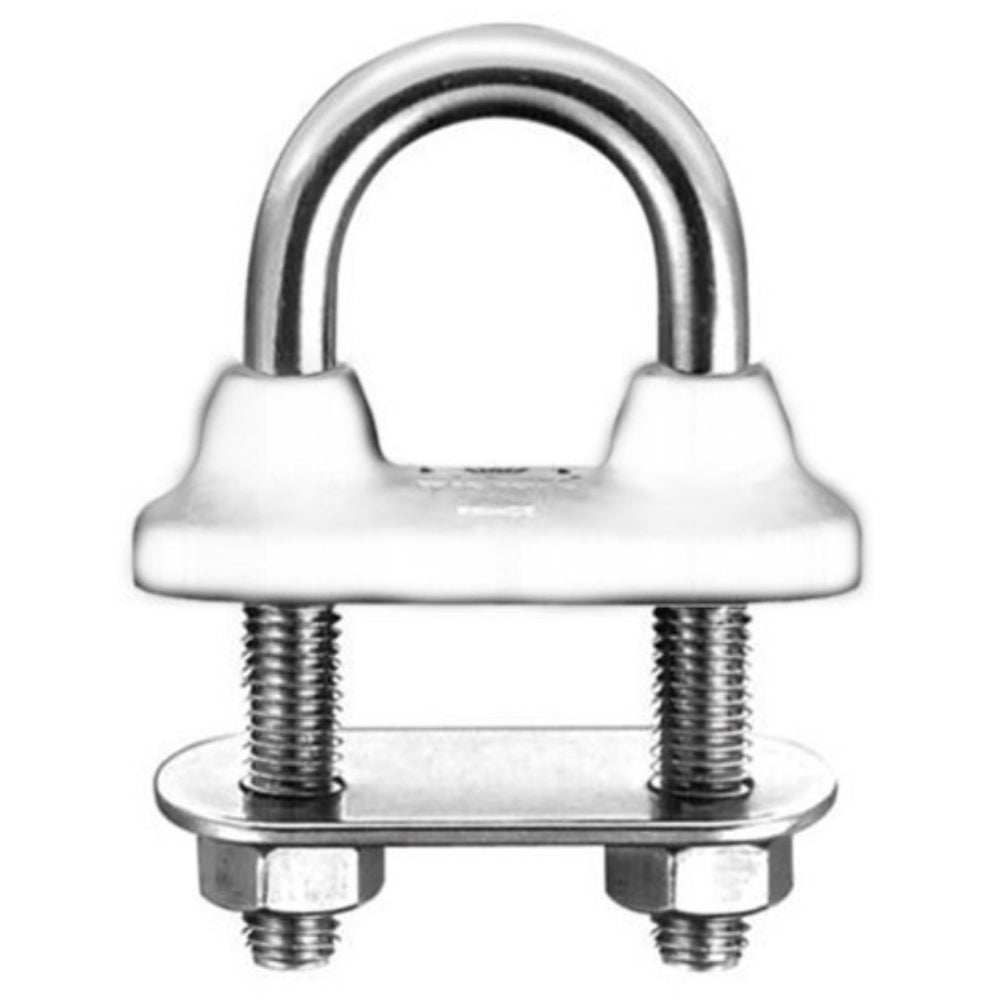

Wichard U-Bolt Watertight (White) - Length: 3 35/64 in (90 mm) - 1/4 in (6 mm)
Wichard U-Bolt Watertight (White) - Length: 3 35/64 in (90 mm) - 1/4 in (6 mm) is backordered and will ship as soon as it is back in stock.
Description
Description
Fully drop-forged product with high-quality stainless steel. Outstanding working and breaking loads. Complete water tightness thanks to the resistant rubber collar (white color). Easy installation (no need to use a waterproof sealant). For any kind of fastening applications (shrouds, lifeline, blocks...). Delivered with bolts and counter plate. Max tightening torque: 7,5 Nm.
Our Part # WIC65432 | Wichard Part # 65432
Technical Information
Technical Information

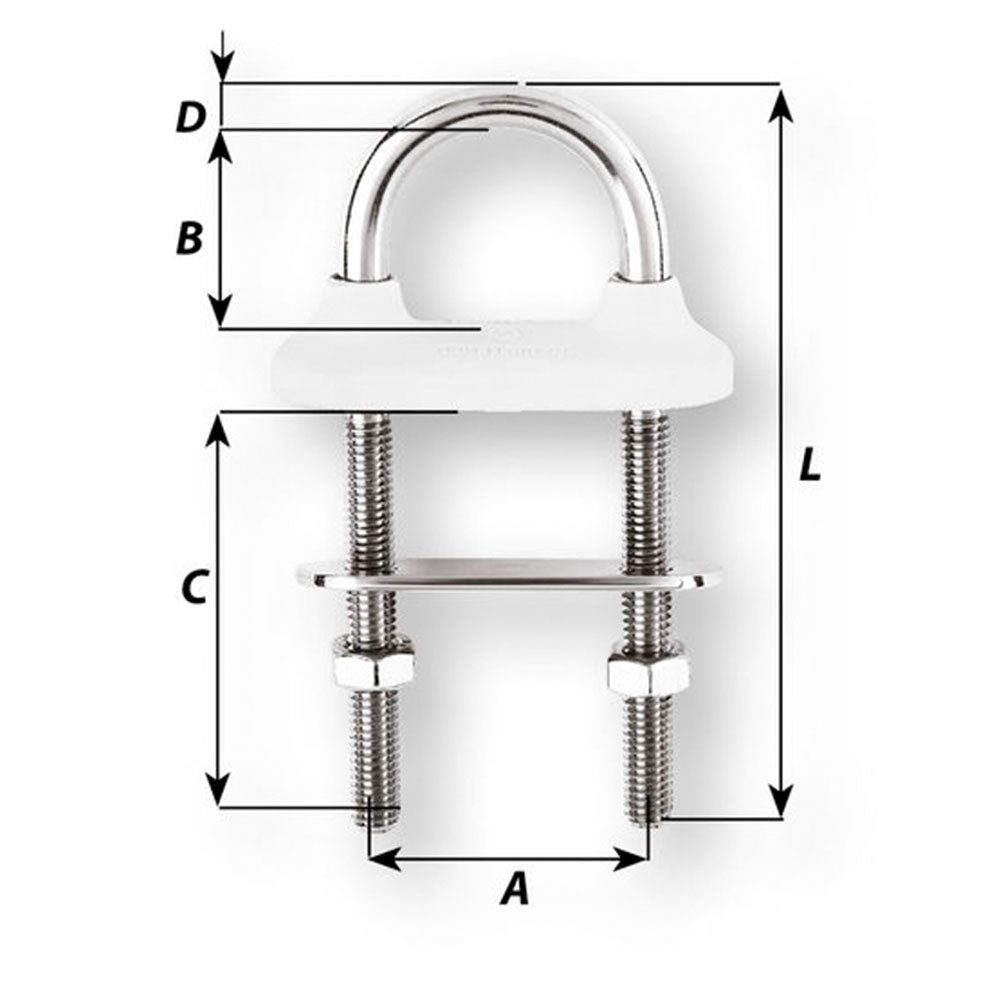

Description | Imperial | Metric | Length | 3.54 in. | 90.00 mm. | Working Load | 2820.00 lb. | 1280.00 Kg. | Breaking Load | 6610.00 lb. | 3000.00 Kg. | Weight | 0.15 lb. | 68.00 g. | A | 1.26 in. | 32.00 mm. | B | 0.94 in. | 24.00 mm. | C | 2.17 in. | 55.00 mm. | D diameter | 0.24 in. | 6.00 mm. |
---|
