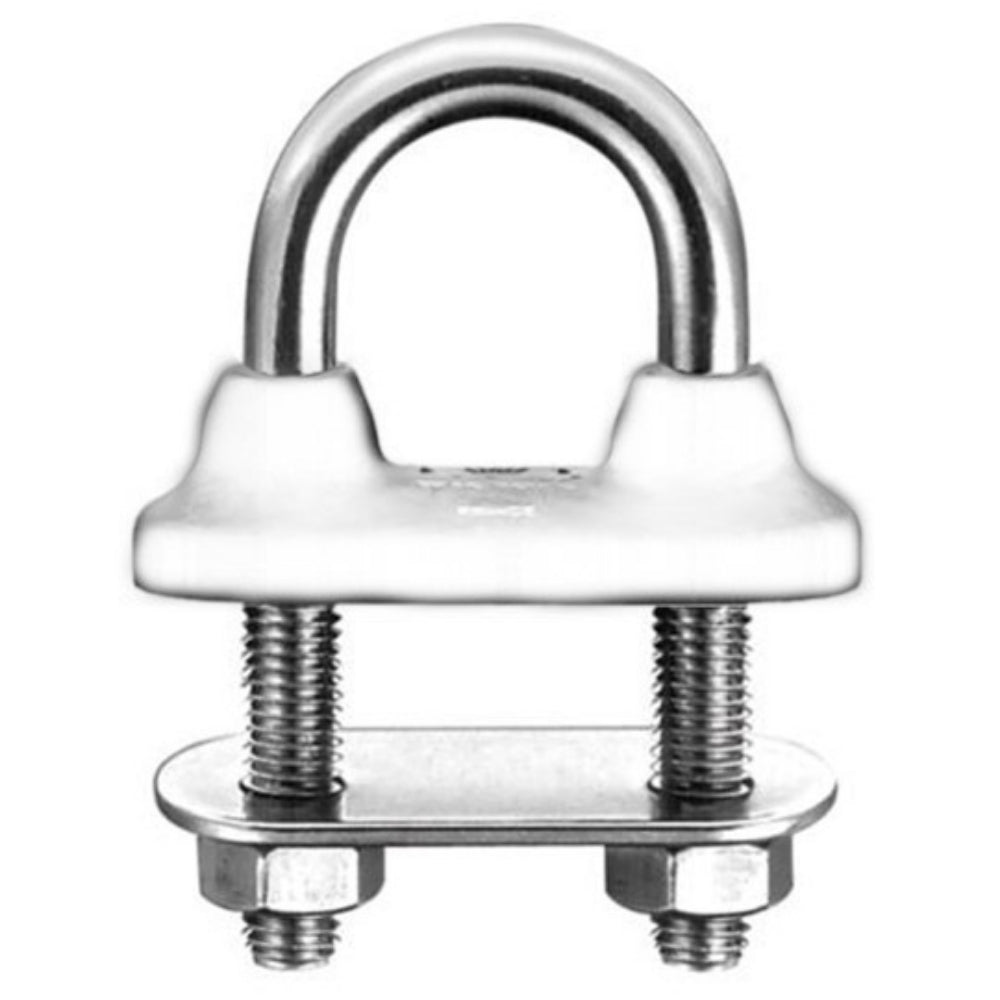

Wichard U-Bolt Watertight (White) - Length: 3 5/32 in (80 mm)
Wichard U-Bolt Watertight (White) - Length: 3 5/32 in (80 mm) is backordered and will ship as soon as it is back in stock.
Description
Description
Fully drop-forged product with high-quality stainless steel. Outstanding working and breaking loads. Complete water tightness thanks to the resistant rubber collar (white color). Easy installation (no need to use a waterproof sealant). For any kind of fastening applications (shrouds, lifeline, blocks...). Delivered with bolts and counter plate. Max tightening torque: 18 Nm.
Our Part # WIC65342 | Wichard Part # 65342
Technical Information
Technical Information

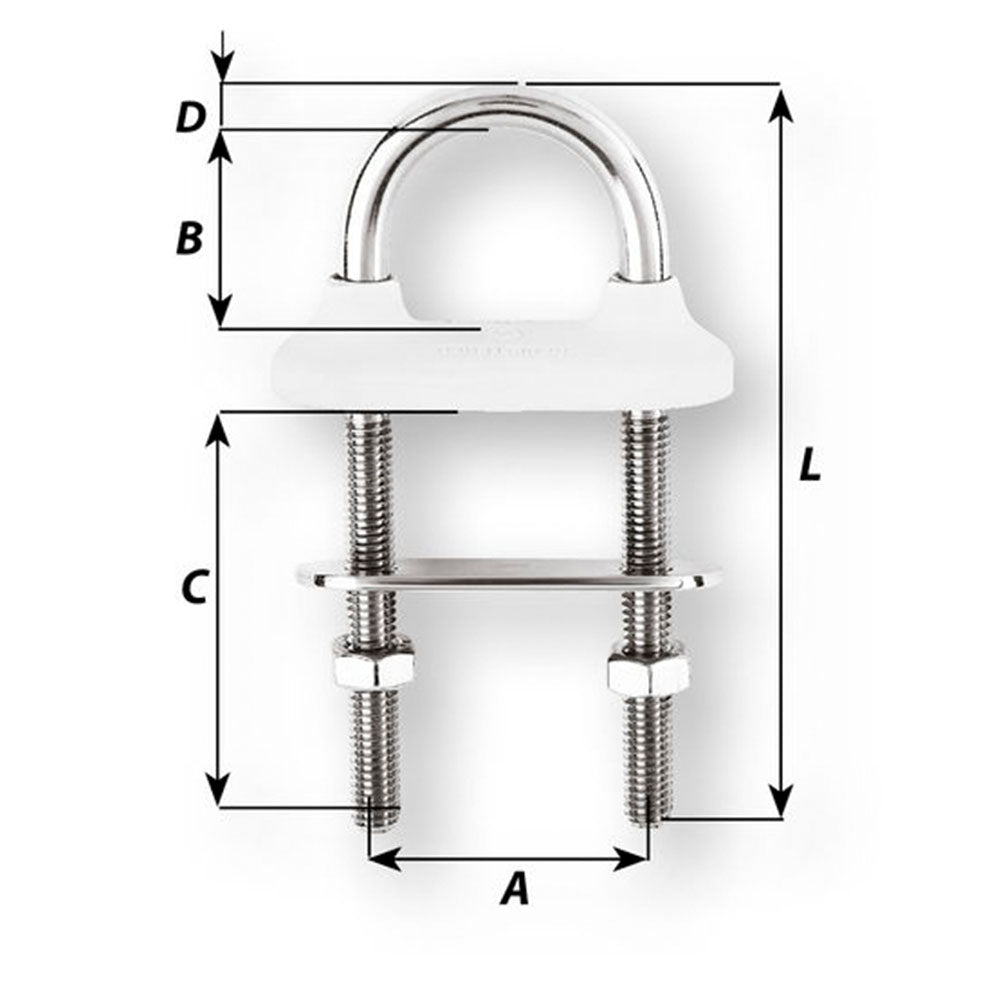

Description | Imperial | Metric | Length | 3.15 in. | 80.00 mm. | Working Load | 5290.00 lb. | 2400.00 Kg. | Breaking Load | 10580.00 lb. | 4800.00 Kg. | Weight | 0.27 lb. | 123.00 g. | A | 1.42 in. | 36.00 mm. | B | 0.98 in. | 25.00 mm. | C | 1.57 in. | 40.00 mm. | D diameter | 0.31 in. | 8.00 mm. |
---|
