Wichard  |  SKU: WIC6525  |  Manuf. Code: 6525

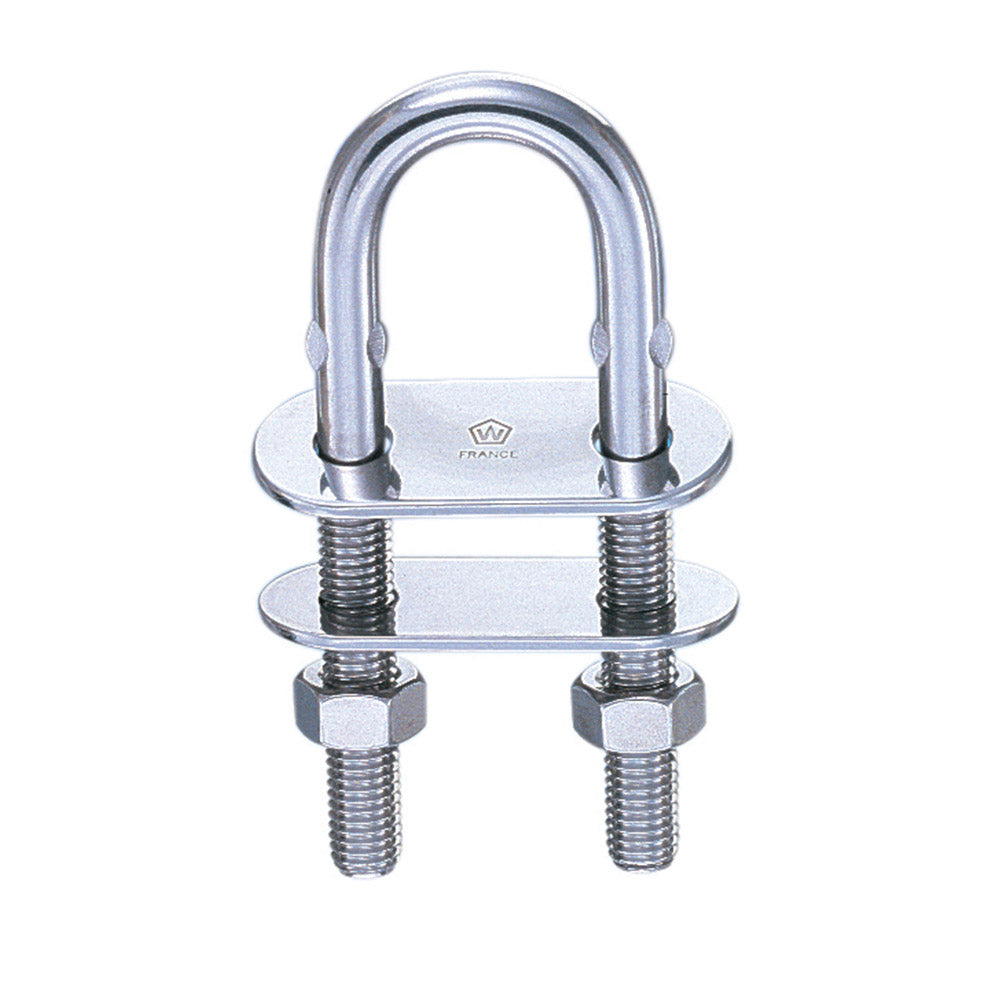

Wichard U-Bolt Standard (Inc. bolts & counterplate) - Length: 3 15/16 in (100 mm) & Dia: 25/64 in (10 mm)

$38.00 USD $50.67

Description

Fully drop-forged product with high-quality stainless steel. Outstanding working and breaking loads. For any kind of fastening applications (shrouds, lifelines, blocks...). Delivered with bolts and counter plate. Max tightening torque: 36 Nm.

Our Part # WIC6525 | Wichard Part # 6525

Technical Information


DescriptionImperialMetric
Length4.33 lb.110.00 mm.
Weigth0.49 lb.222.00 g.
Breaking Load15430.00 lb.7000.00 Kg.
Working Load7930.00 lb.3600.00 Kg.

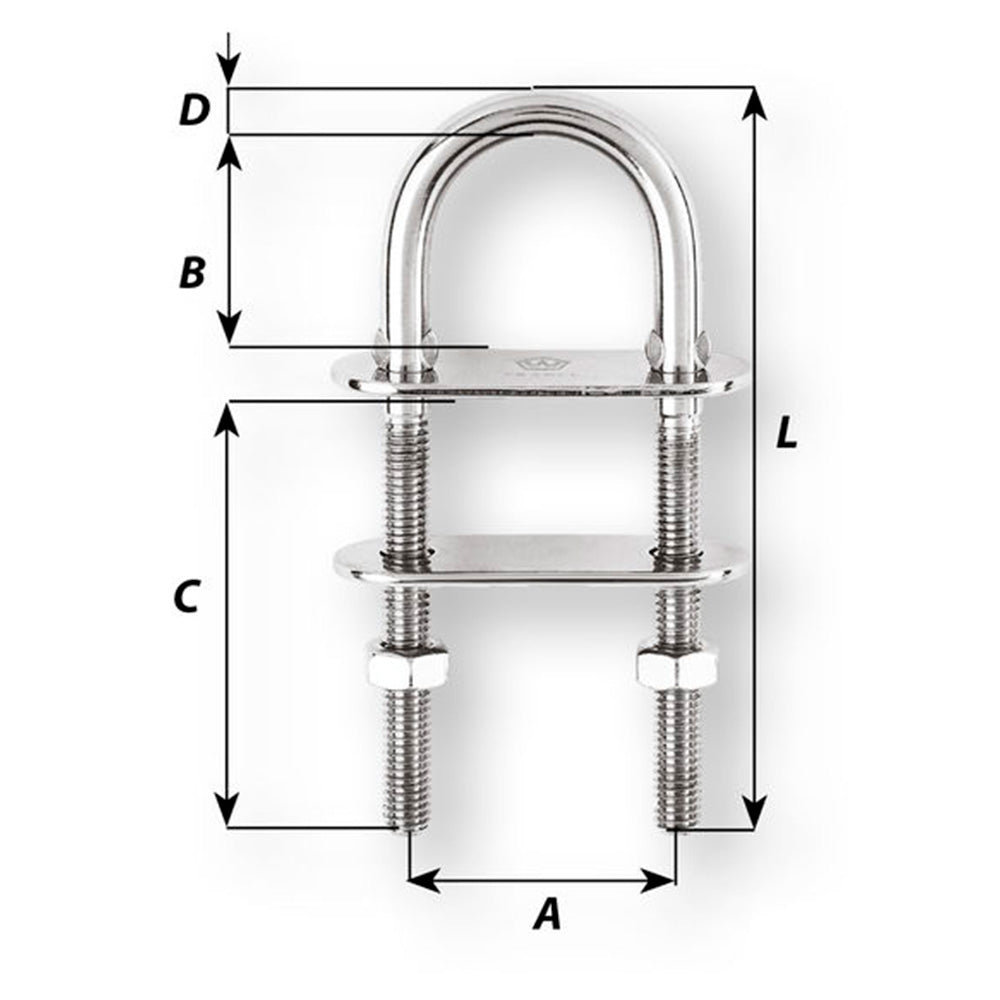

A1.57 in.40.00 mm.
B1.26 in.32.00 mm.
C2.56 in.65.00 mm.
D diameter0.39 in.10.00 mm.
L4.33 in.110.00 mm.
