Wichard  |  SKU: WIC6524  |  Manuf. Code: 6524

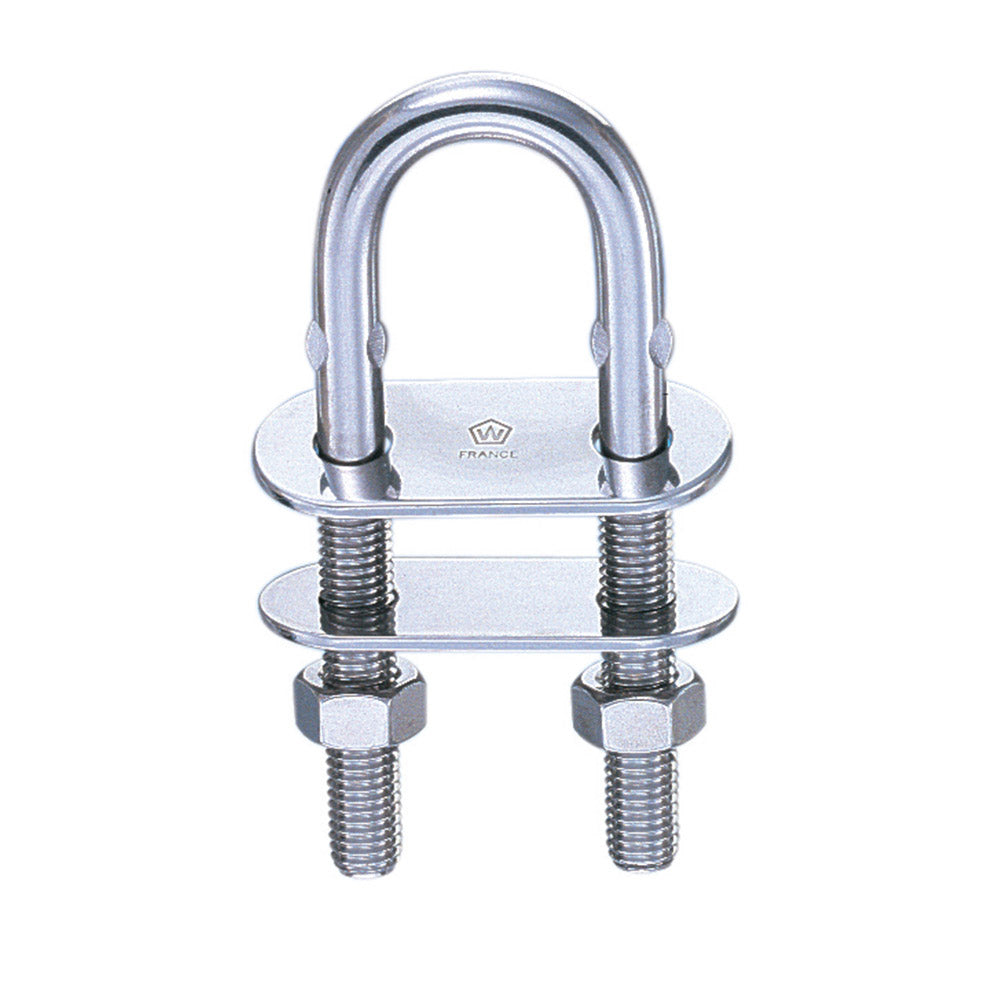

Wichard U-Bolt Standard (Inc. bolts & counterplate) - Length: 3 15/16 in (100 mm) & Dia: 5/16 in (8 mm)

$24.00 USD $32.00

Description

Fully drop-forged product with high-quality stainless steel. Outstanding working and breaking loads. For any kind of fastening applications (shrouds, lifelines, blocks...). Delivered with bolts and counter plate. Max tightening torque: 18 Nm.

Our Part # WIC6524 | Wichard Part # 6524

Technical Information


DescriptionImperialMetric
Length3.94 in.100.00 mm.
Weigth0.28 lb.127.00 g.
Breaking Load10580.00 lb.4800.00 Kg.
Working Load5290.00 lb.2400.00 Kg.

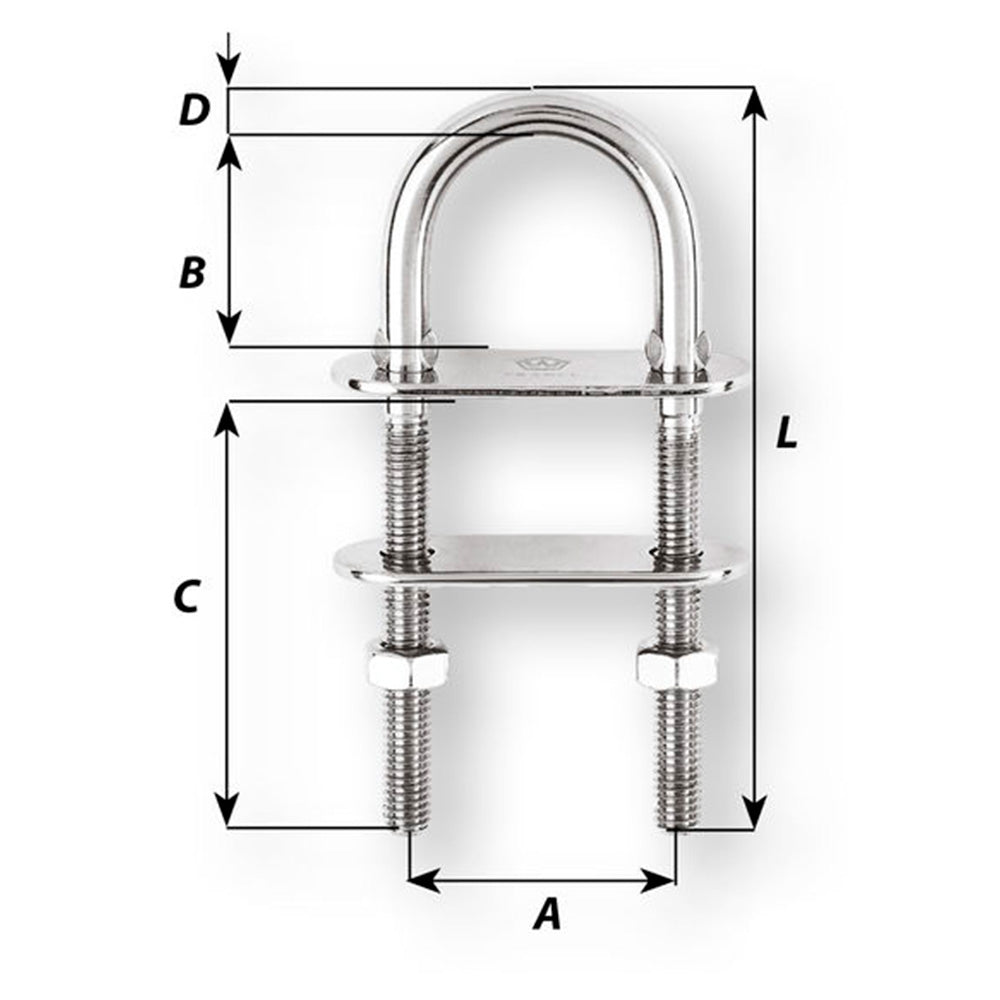

A1.42 in.36.00 mm.
B1.18 in.30.00 mm.
C2.36 in.60.00 mm.
D diameter0.31 in.8.00 mm.
L3.94 in.100.00 mm.
