Wichard  |  SKU: WIC6523  |  Manuf. Code: 6523

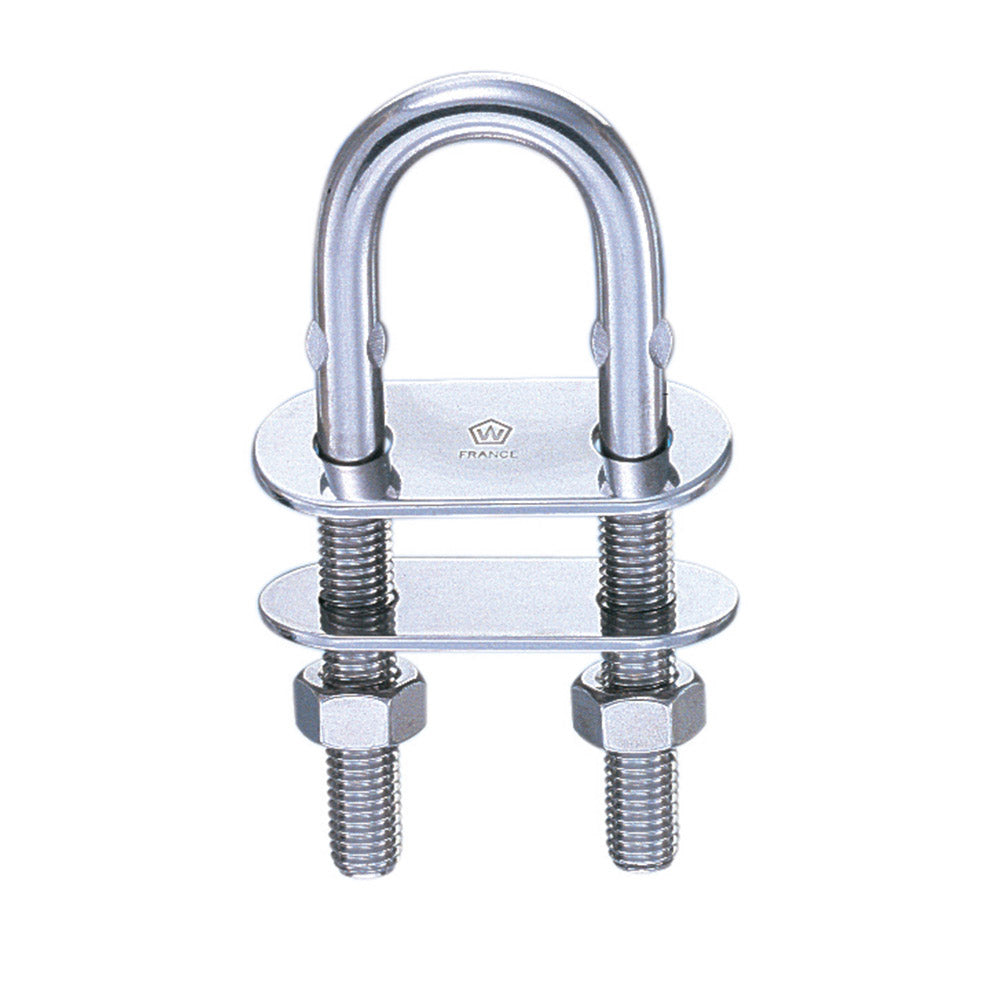

Wichard U-Bolt Standard (Inc. bolts & counterplate) - Length: 3 35/64 in (90 mm) - Dia: 1/4 in (6 mm)

$17.00 USD $22.67

Description

Fully drop-forged product with high-quality stainless steel. Outstanding working and breaking loads. For any kind of fastening applications (shrouds, lifelines, blocks...). Delivered with bolts and counter plate. Max tightening torque: 7.5 Nm.

Our Part # WIC6523 | Wichard Part # 6523

Technical Information


DescriptionImperialMetric
Length3.54 in.90.00 mm.
Weigth0.15 lb.67.00 g.
Breaking Load6610.00 lb.3000.00 Kg.
Working Load2820.00 lb.1280.00 Kg.

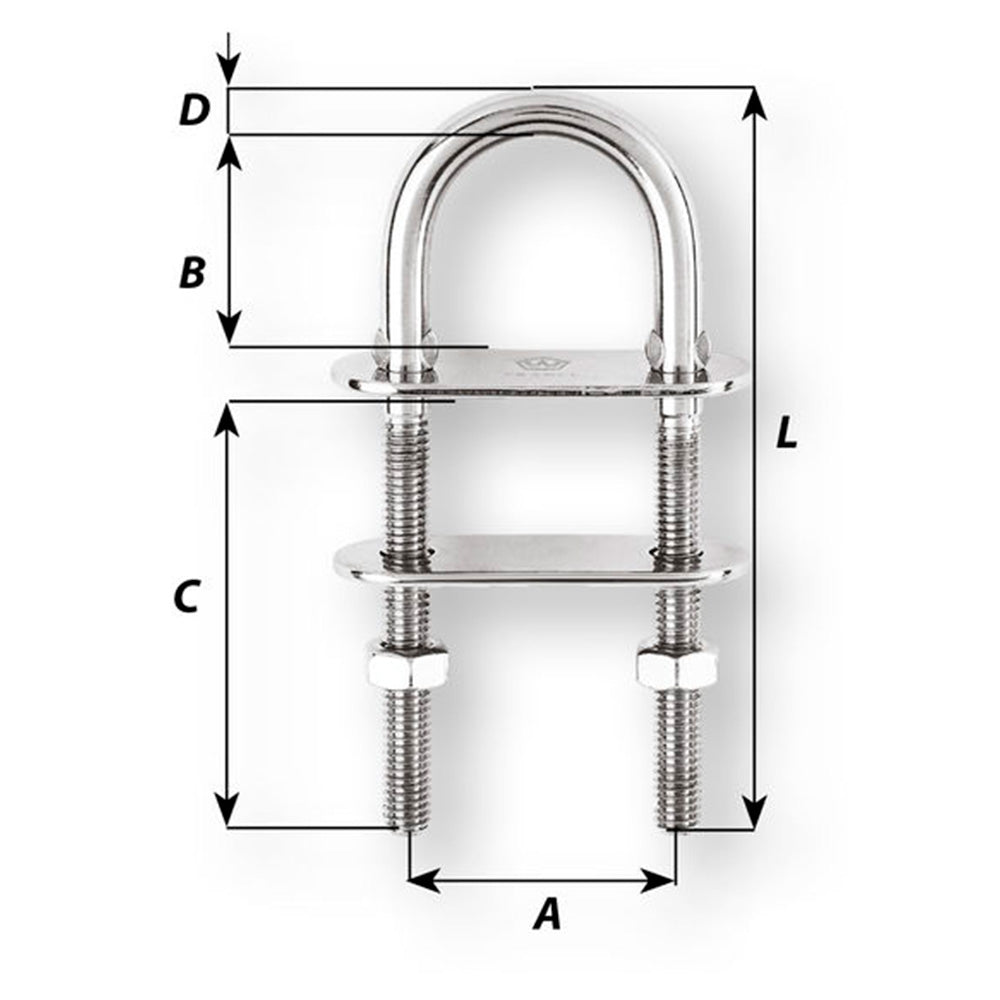

A2.64 in.67.00 mm.
B1.06 in.27.00 mm.
C2.17 in.55.00 mm.
D diameter0.24 in.6.00 mm.
L3.54 in.90.00 mm.
