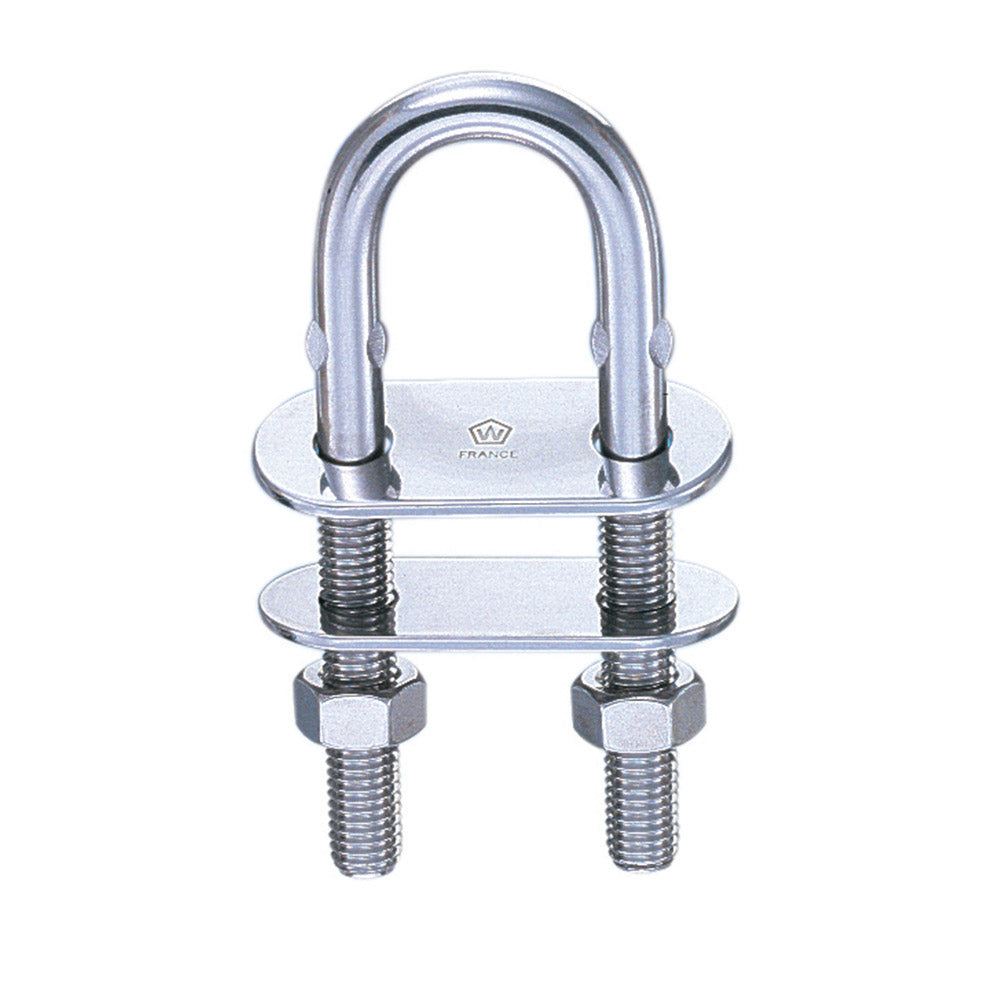

Wichard U-Bolt Standard (Inc. bolts & counterplate) - Length: 3 35/64 in (90 mm) - Dia: 3/8 in (10 mm)
$31.00 USD
$41.33
Unit price
/
Unavailable
Wichard U-Bolt Standard (Inc. bolts & counterplate) - Length: 3 35/64 in (90 mm) - Dia: 3/8 in (10 mm) is backordered and will ship as soon as it is back in stock.
Description
Description
Fully drop-forged product with high-quality stainless steel. Outstanding working and breaking loads. For any kind of fastening applications (shrouds, lifelines, blocks...). Delivered with bolts and counter plate. Max tightening torque: 36 Nm.
Our Part # WIC6515 | Wichard Part # 6515
Technical Information
Technical Information

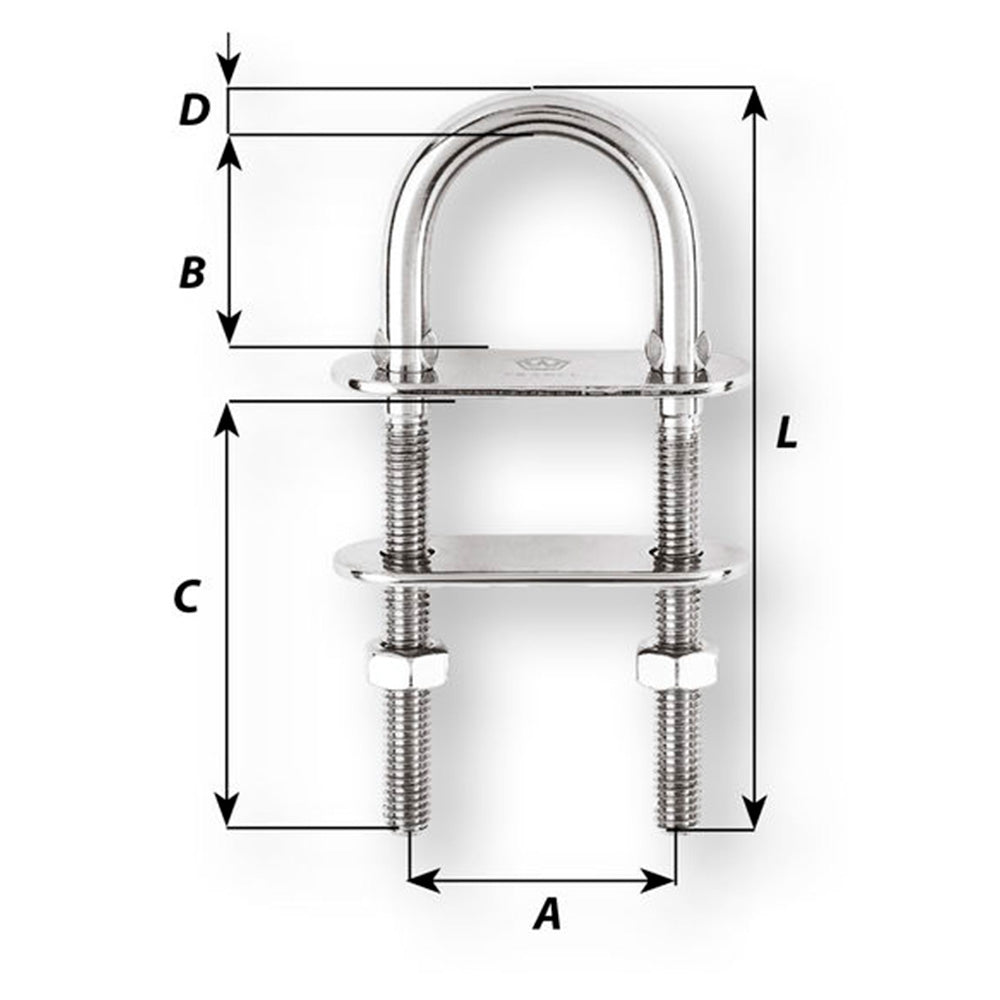

Description | Imperial | Metric | Length | 3.54 in. | 90.00 mm. | Weigth | 0.44 lb. | 200.00 g. | Breaking Load | 15430.00 lb. | 7000.00 Kg. | Working Load | 7930.00 lb. | 3600.00 Kg. | A | 1.57 in. | 40.00 mm. | B | 1.26 in. | 32.00 mm. | C | 1.77 in. | 45.00 mm. | D diameter | 0.39 in. | 10.00 mm. | L | 3.54 in. | 90.00 mm. |
---|
