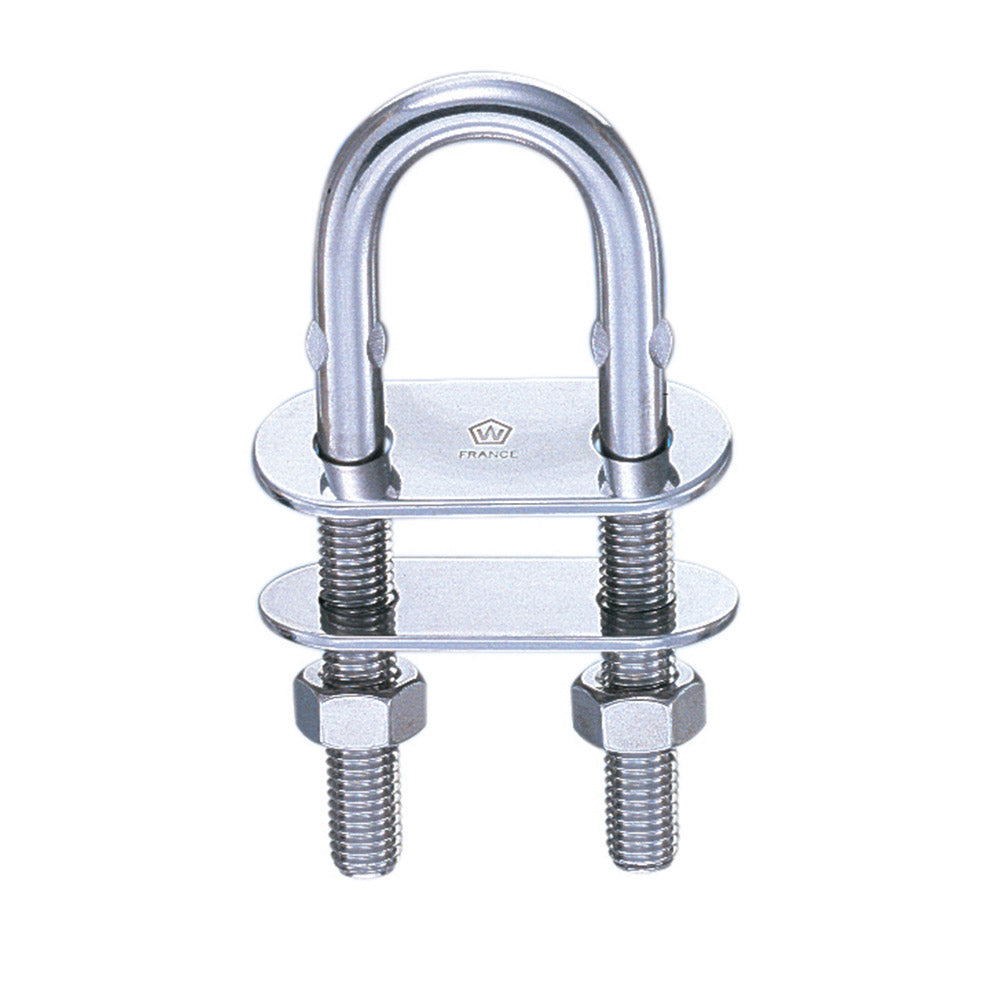

Wichard U-Bolt Standard (Inc. bolts & counterplate) - Length: 3 5/32 in (80 mm)
$20.00 USD
$26.67
Unit price
/
Unavailable
Wichard U-Bolt Standard (Inc. bolts & counterplate) - Length: 3 5/32 in (80 mm) is backordered and will ship as soon as it is back in stock.
Description
Description
Fully drop-forged product with high-quality stainless steel. Outstanding working and breaking loads. For any kind of fastening applications (shrouds, lifelines, blocks...). Delivered with bolts and counter plate. Max tightening torque: 18 mm.
Our Part # WIC6514 | Wichard Part # 6514
Technical Information
Technical Information

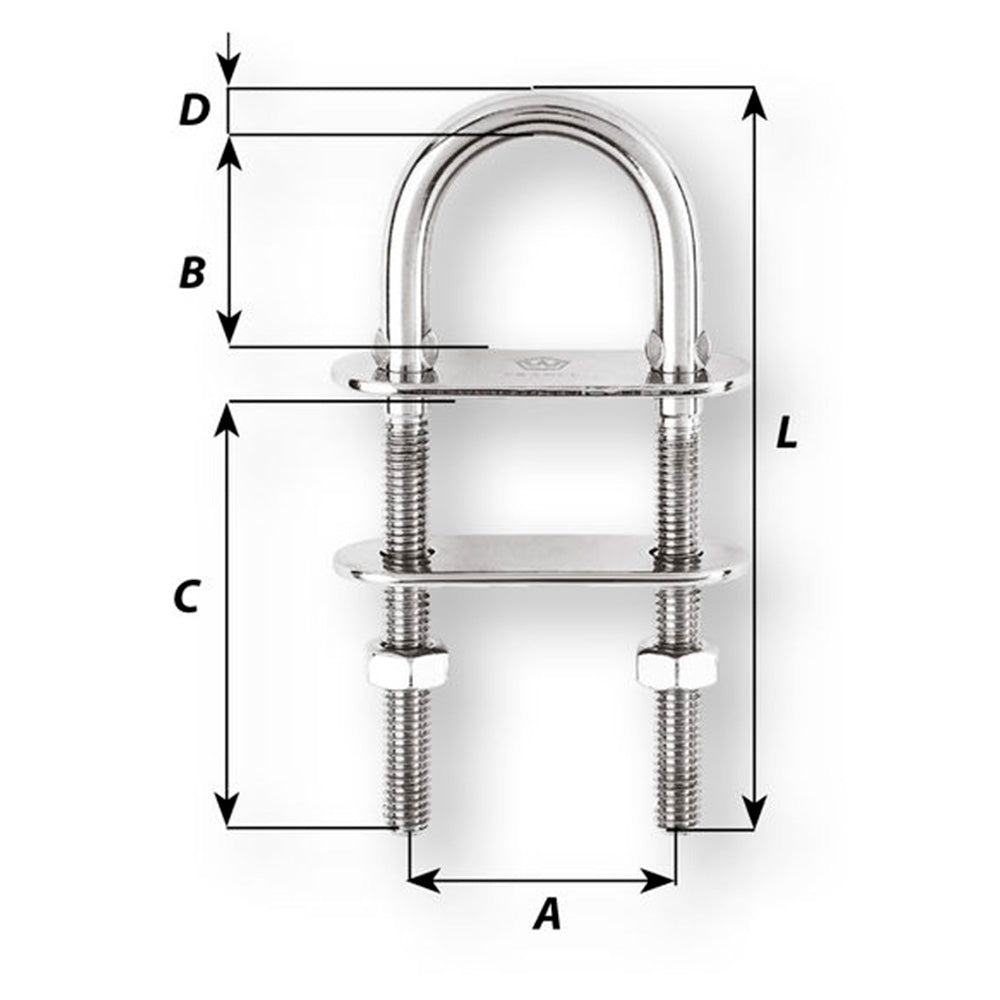

Description | Imperial | Metric | Length | 3.15 in. | 80.00 mm. | Weigth | 0.25 lb. | 114.00 g. | Breaking Load | 10580.00 lb. | 4800.00 Kg. | Working Load | 5290.00 lb. | 2400.00 Kg. | A | 1.42 in. | 36.00 mm. | B | 1.18 in. | 30.00 mm. | C | 1.57 in. | 40.00 mm. | D diameter | 0.31 in. | 8.00 mm. | L | 3.15 in. | 80.00 mm. |
---|
