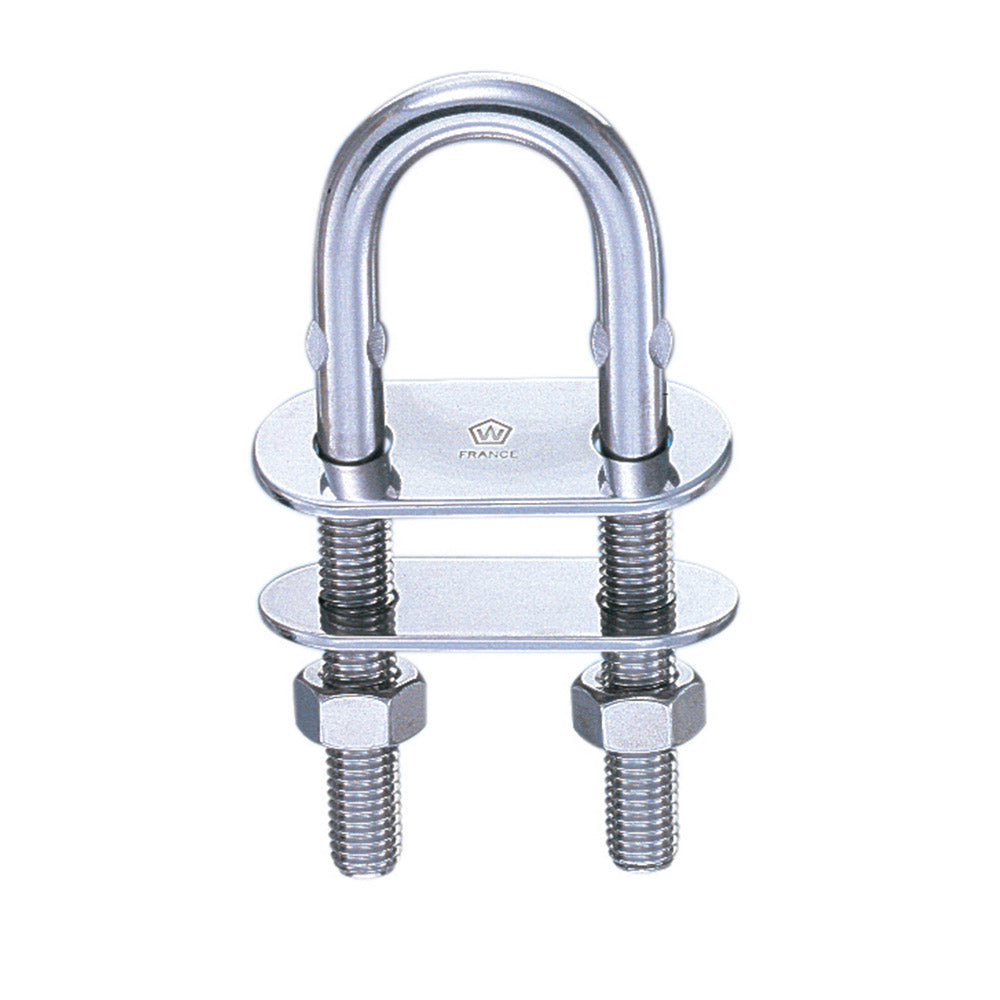

Wichard U-Bolt Standard (Inc. bolts & counterplate) - Length: 2 3/4 in (70 mm)
$13.00 USD
$17.33
Unit price
/
Unavailable
Wichard U-Bolt Standard (Inc. bolts & counterplate) - Length: 2 3/4 in (70 mm) is backordered and will ship as soon as it is back in stock.
Description
Description
Fully drop-forged product with high-quality stainless steel. Outstanding working and breaking loads. For any kind of fastening applications (shrouds, lifelines, blocks...). Delivered with bolts and counter plate. Max tightening torque: 7.5 Nm.
Our Part # WIC6513 | Wichard Part # 6513
Technical Information
Technical Information

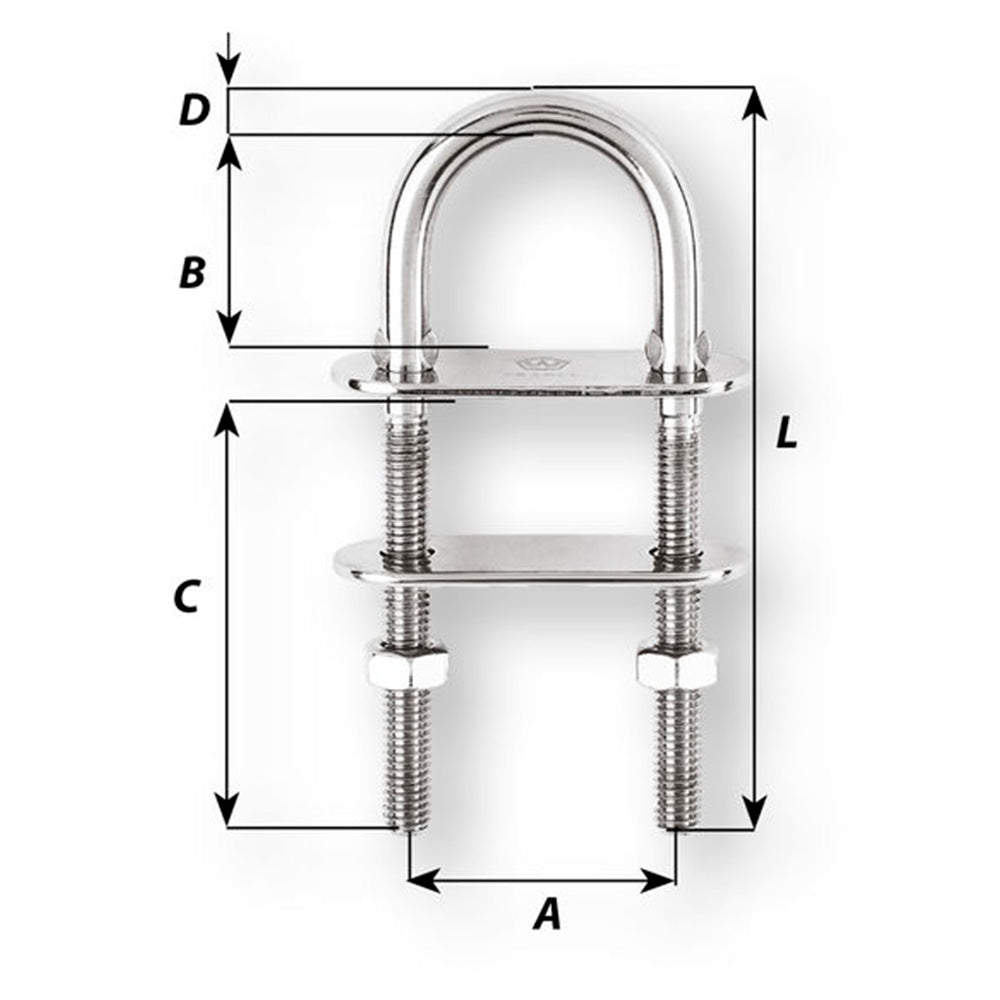

Description | Imperial | Metric | Length | 2.76 in. | 70.00 mm. | Weigth | 0.13 lb. | 60.00 g. | Breaking Load | 6610.00 lb. | 3000.00 Kg. | Working Load | 2820.00 lb. | 1280.00 Kg. | A | 1.26 in. | 32.00 mm. | B | 1.06 in. | 27.00 mm. | C | 1.38 in. | 35.00 mm. | D diameter | 0.24 in. | 6.00 mm. | L | 2.76 in. | 70.00 mm. |
---|
