Wichard  |  SKU: WIC2326  |  Manuf. Code: 2326

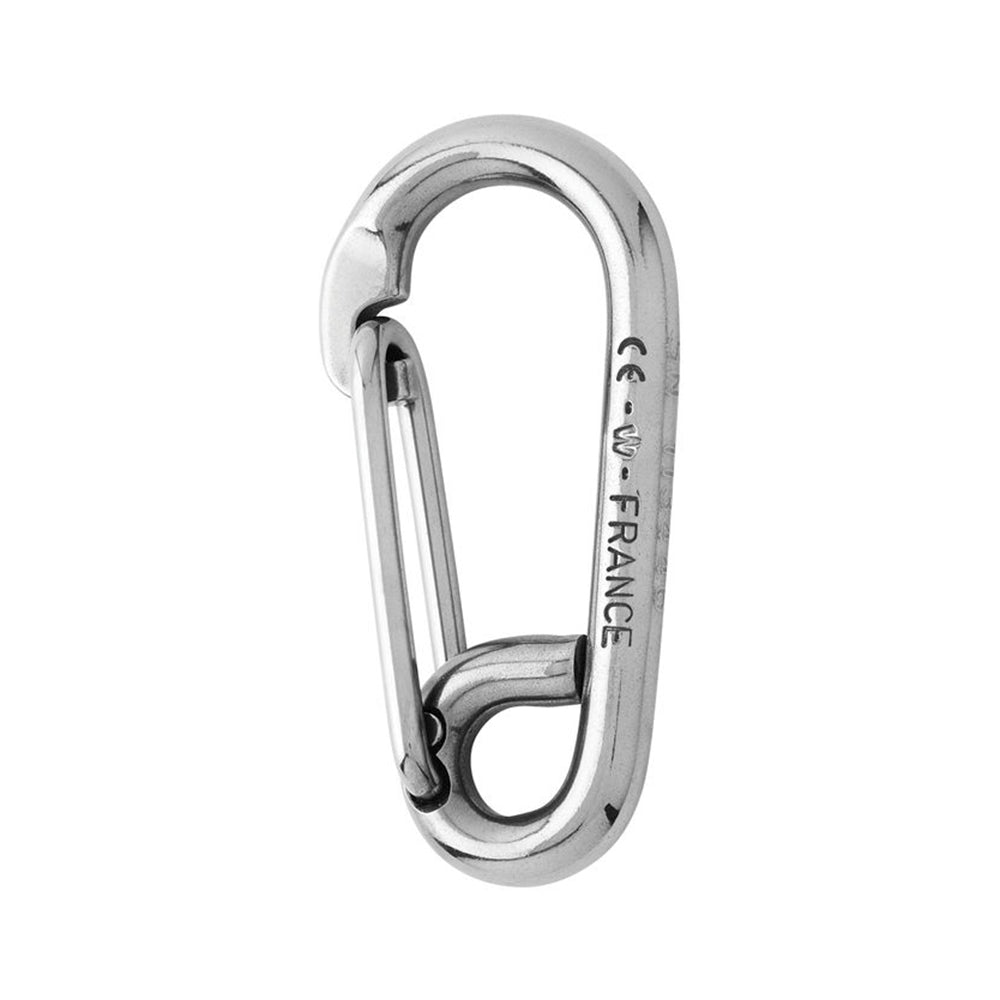

Wichard 100 mm. (3 15/16 in.) Asymmetric Carbine Hook with Eye - 10 mm. Dia. (Stainless Steel)

$39.00 USD $52.00

Description

Grade 316L stainless steel carbine hooks. Asymmetrical shape to support higher loads. With eye to attach a webbing. For fastening applications.

Our Part # WIC2326 | Wichard Part # 2326

Technical Information


DescriptionImperialMetric
Material316L stainless steel grade316L stainless steel grade
Length3 15/16 in.100.00 mm.
Working load2910.10 lb.1320.00 kg.
WLL1102.31 lb.500.00 kg.
Breaking load5511.55 lb.2500.00 kg.
Weight0.30 lb.136.00 g.

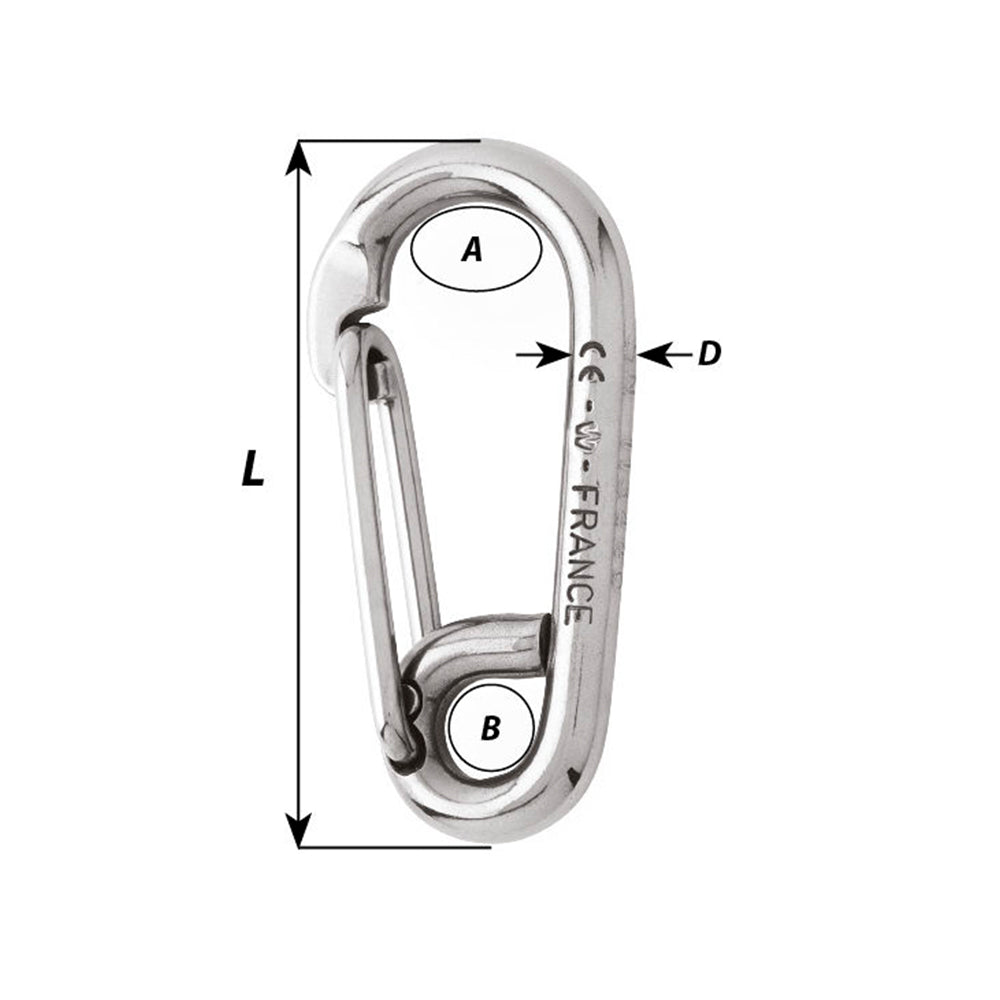

A11/16 in.18.00 mm.
B1/2 in.13.00 mm.
D diameter3/8 in.10.00 mm.
