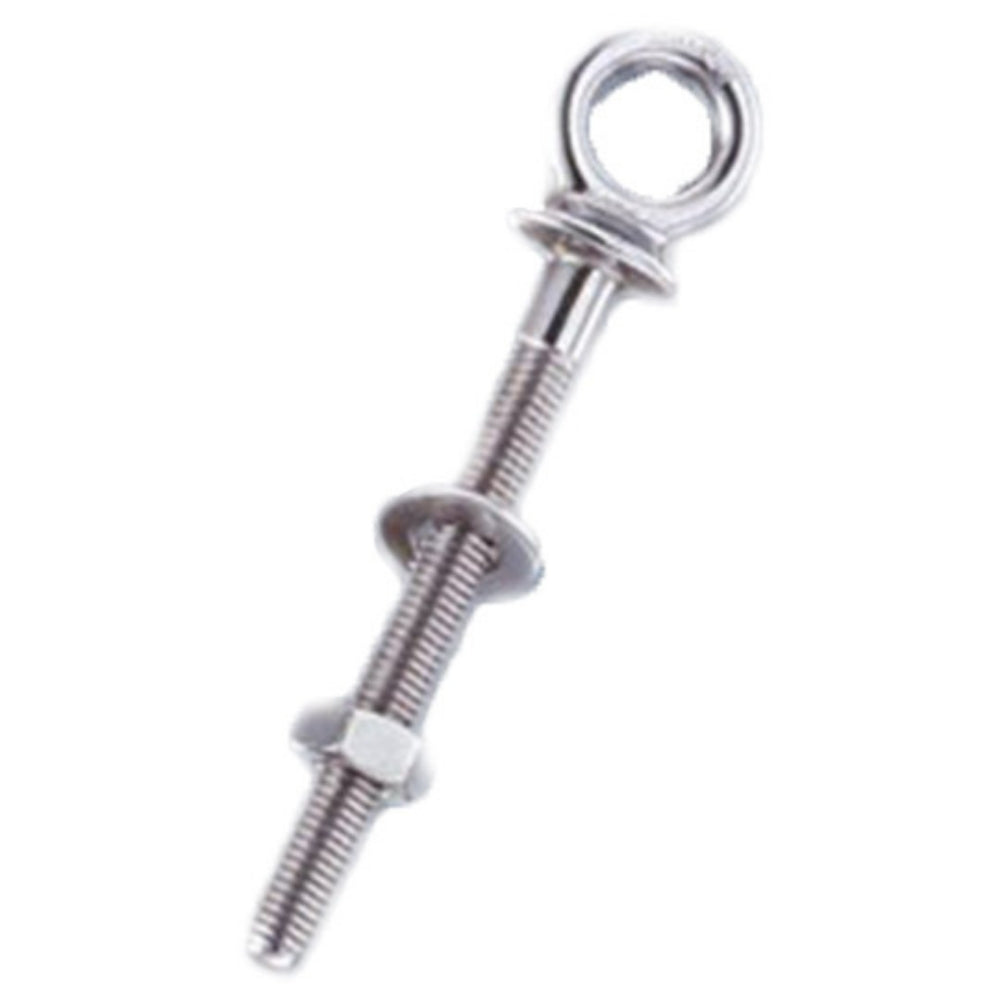

Wichard Eye Bolt - M6x100 Stainless Steel - Thread Lenght: 2 1/8 in (54 mm)
SKU:
WIC6491
|
Manuf. Code:
6491
15% off
Unit price
/
Unavailable
Wichard Eye Bolt - M6x100 Stainless Steel - Thread Lenght: 2 1/8 in (54 mm) is backordered and will ship as soon as it is back in stock.
Description
Description
A complete range of single piece forged products for fastenings applications. Outstanding working and breaking loads. Avillable in different sizes. Max tightening torque: 7,5 Nm.
Our Part # WIC6491 | Wichard Part # 6491
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Materials | 316L stainless steel grade | |
Working Load | 1230.00 lb. | 560.00 kg. |
Breaking load | 1980.00 lb. | 900.00 kg. |
Weight | 0.06 lb. | 27.00 g. |
A | M6 x 100 | M6 x 100 |
B | 0.47 in. | 12.00 mm. |
C | 0.98 in. | 25.00 mm. |
D | 0.20 in. | 5.00 mm. |
E | 0.67 in. | 17.00 mm. |
F | 2.36 in. | 60.00 mm. |
G | 2.13 in. | 54.00 mm. |
