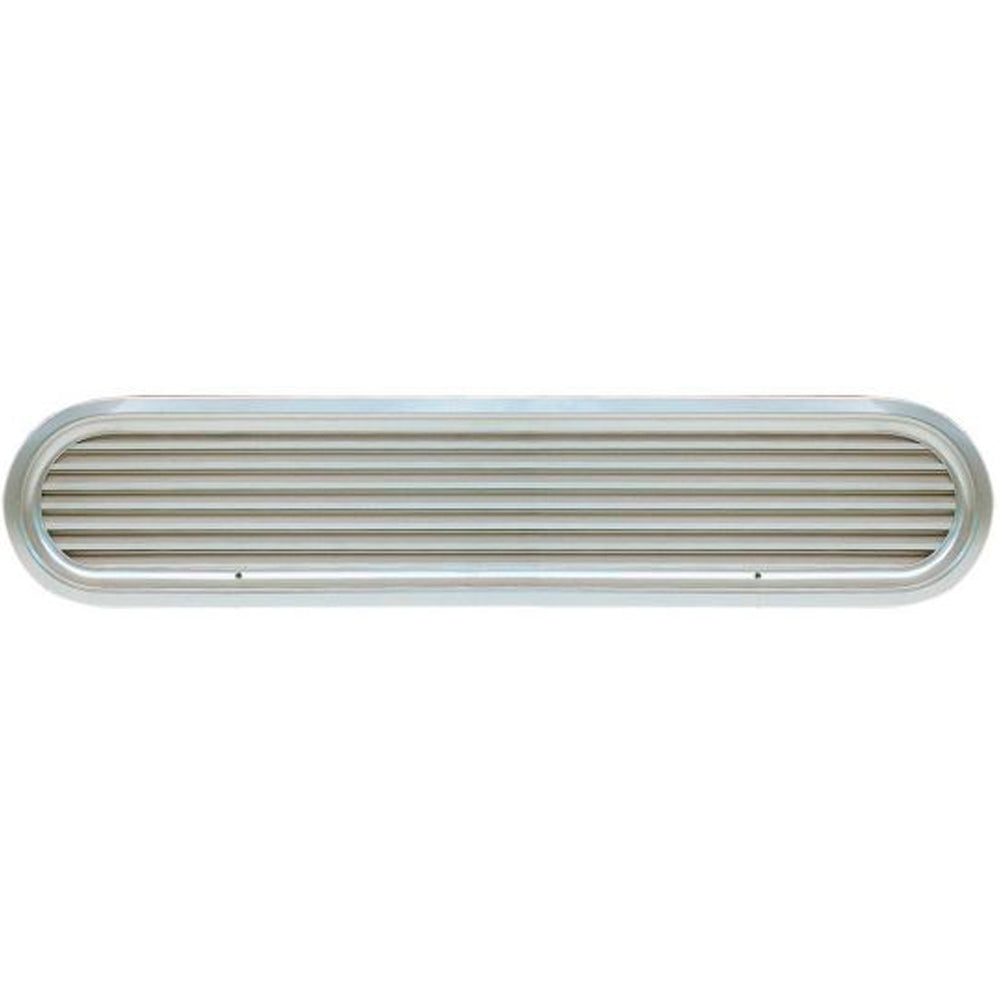

Vetus Louvered Air Suction Vent, Aluminum ASV 80

SKU: VTSASV080A  |  Manuf. Code: ASV080A
$291.93 $218.95 USD

Description

The ASV80A vent frame is polished and grilles are naturally anodised aluminium. Model number relates to the engine horsepower for which it is suitable.

Our Part # VTSASV080A | Mfr. Part # ASV080A

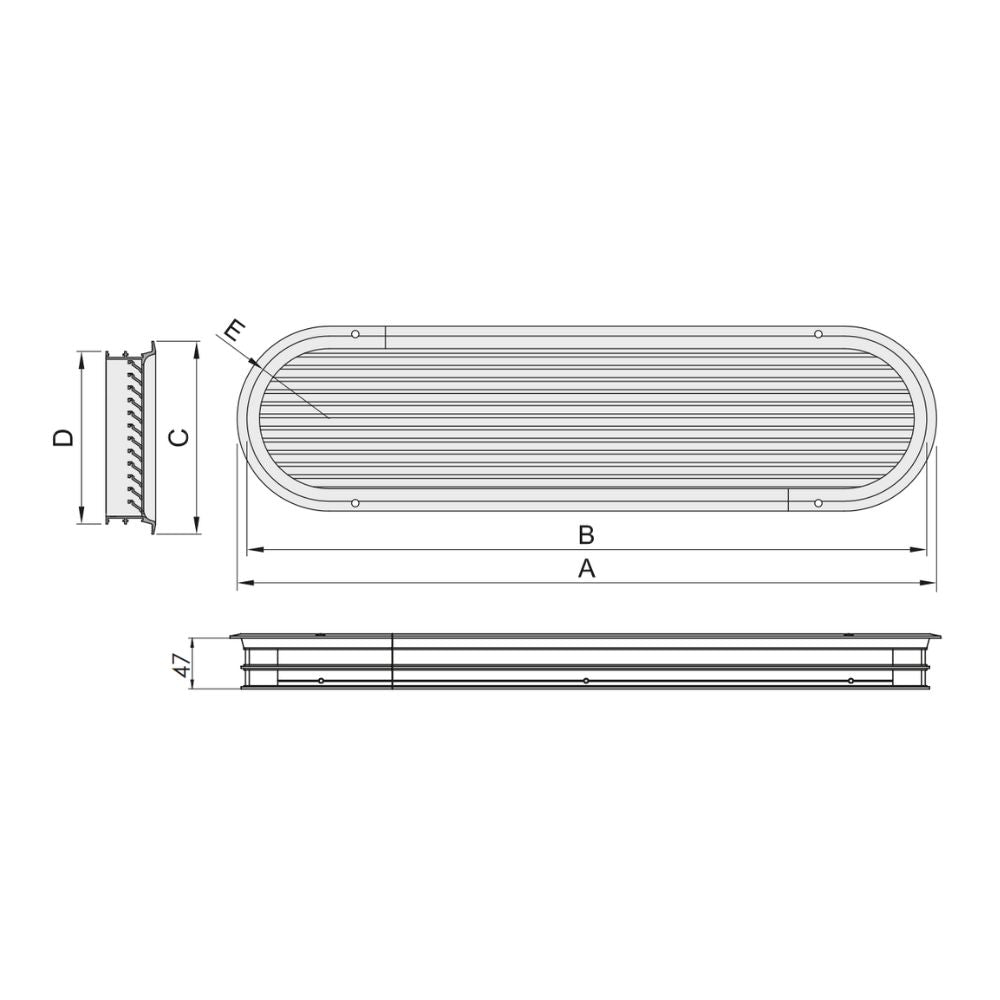

Technical Information


DescriptionImperialMetric
Lenght A 26.00 in.660.00 mm.
Lenght B cut-out25 3/16 in.640.00 mm.
Lenght C6 1/4 in.159.00 mm.
Lenght D cut-out5 1/2 in.139.00 mm.
Lenght E cut-out radius2 3/4 in.69.50 mm.
Free flow area49.76 square in.321.00 square cm.
